Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important: Before installing the hood, be sure to apply anti-corrosion treatment to the hood and hood hinge mating surfaces.

Install the hood (1) with the aid of a helper to the hood hinges (3), aligning the mating marks. Secure the hood with 2 mounting bolts at each hinge. Do not tighten fully.

Fig 1: Installing Hood To Hood Hinges
Courtesy of GENERAL MOTORS CORP.
Install the windshield washer nozzles (2) and supply hose (1) to the hood (3).

Fig 2: Installing Windshield Washer Nozzles & Supply Hose To Hood
Courtesy of GENERAL MOTORS CORP.
Reposition the hood insulator (1) and secure with the 2 plastic retainers (3).

Fig 3: Repositioning Hood Insulator & Securing With Plastic Retainers
Courtesy of GENERAL MOTORS CORP.

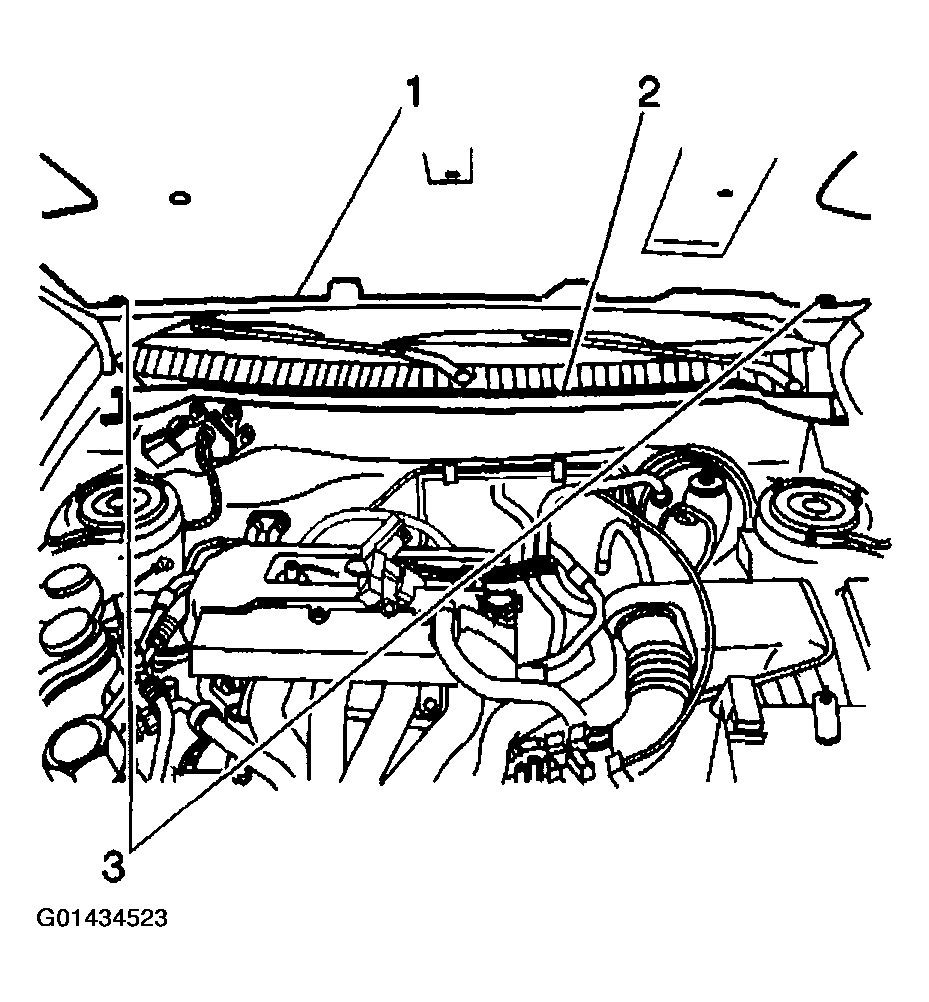

Remove the protective covers from the front fenders (2).
Adjust the hood if necessary. Refer to HOOD ADJUSTMENT .

Fig 4: Removing Protective Covers From Front Fenders
Courtesy of GENERAL MOTORS CORP.
