Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlining trim finish panel (1) through a rear door.
  2. Install the headlining panel (1) to the roof panel. Secure the headlining panel with the rear 2 retainers (2).
    Fig 1: Securing Headlining Panel With Rear Retainers
    G01434952Courtesy of GENERAL MOTORS CORP.
  3. Install the quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  4. Install the dome lamp. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
  5. Install the courtesy and reading lamp/sunroof switch assembly, if removed. Refer to SUNROOF SWITCH REPLACEMENT in Roof.
  6. Install the sunshades and retainers. Refer to SUNSHADE REPLACEMENT  .
  7. Install the windshield side garnish moldings (1) to the vehicle. Ensure that the plastic retainers are fully engaged.
    Fig 2: Installing Windshield Side Garnish Moldings To Vehicle
    G01434953Courtesy of GENERAL MOTORS CORP.
  8. Install the assist handles. Refer to ASSIST HANDLE REPLACEMENT  .
  9. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR  .
  10. Reposition the door opening frame garnish moldings (1, 2) on all doors to the correct position on the pinch well flange.
  11. Position the front seat back cushions back to the upright position.

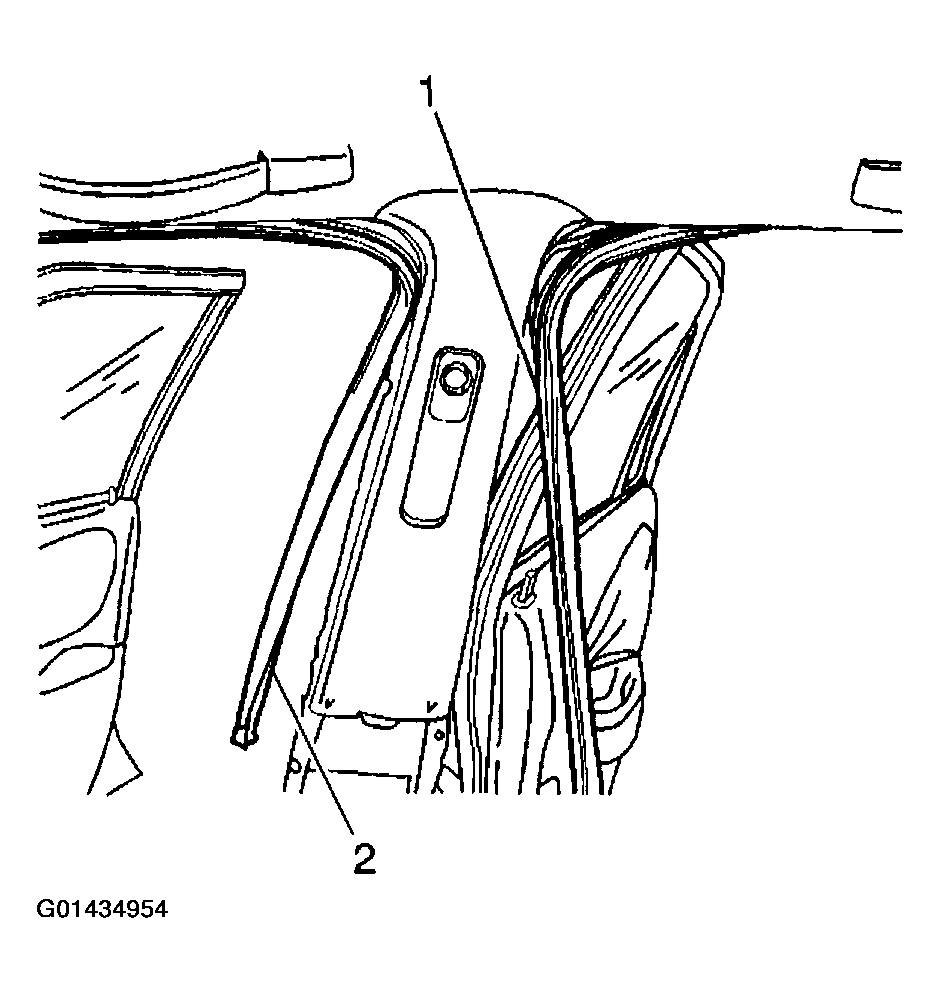

    Fig 3: Repositioning Door Opening Frame Garnish Moldings On All Doors To Correct Position On Pinch Well Flange
    G01434954Courtesy of GENERAL MOTORS CORP.
