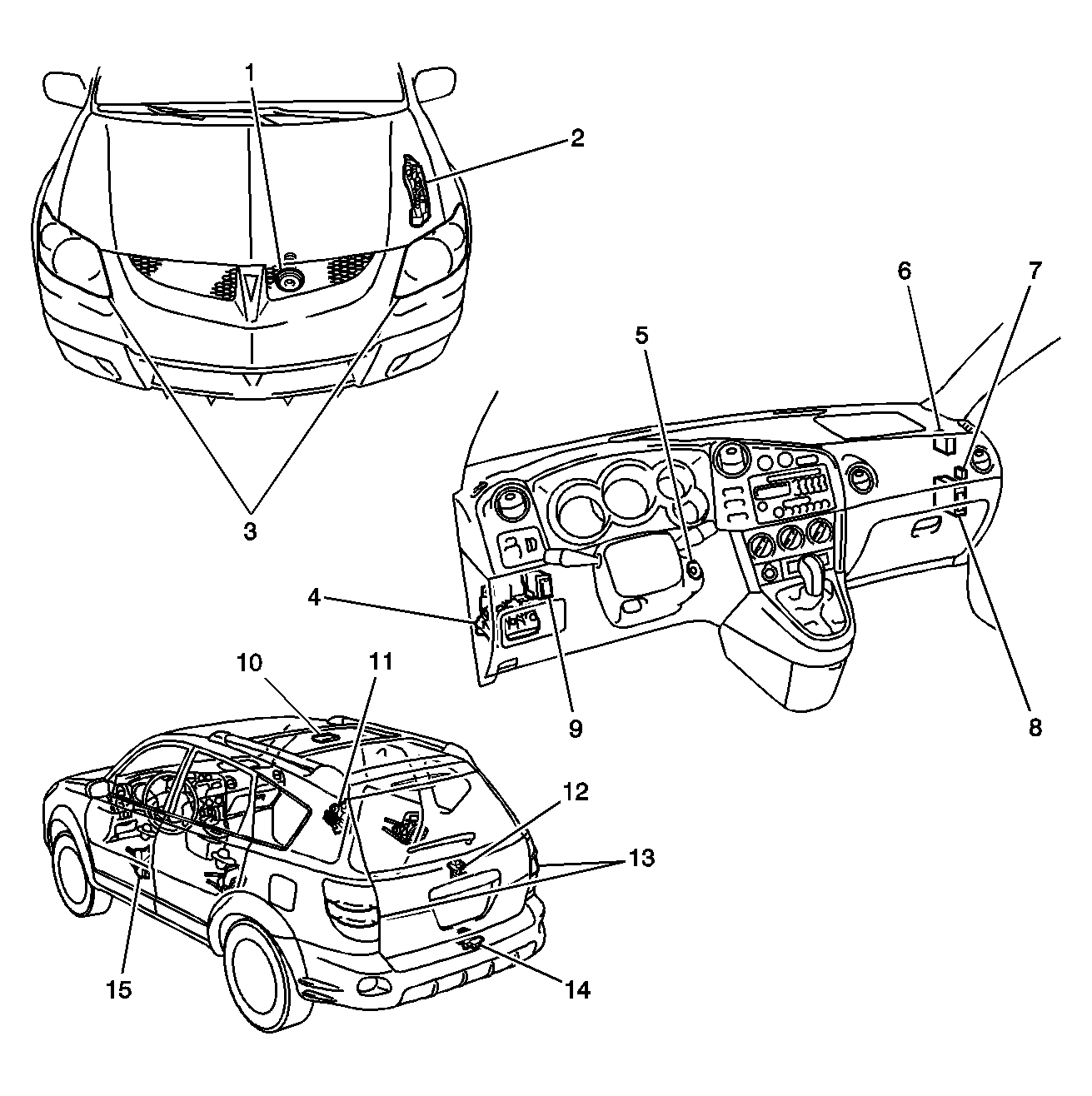

Theft Deterrent System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Horn |
| 2 | Engine Room Fuse Block |
| 3 | Head Lamps |
| 4 | Instrument Panel Fuse Block |
| 5 | Ignition Switch |
| 6 | Glass Breakage Sensor |
| 7 | Starter Cut Relay |
| 8 | Theft Deterrent Control Module |
| 9 | Security Indicator |
| 10 | Interior Dome Lamp |
| 11 | Passenger Front Door Lock Assembly |
| 12 | Glass Hatch Lock Assembly |
| 13 | Rear Hazard Lamps |
| 14 | Tailgate Lock Assembly |
| 15 | Drivers Front Door Lock Assembly |
