Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the caps or the plugs from the brake pipes.

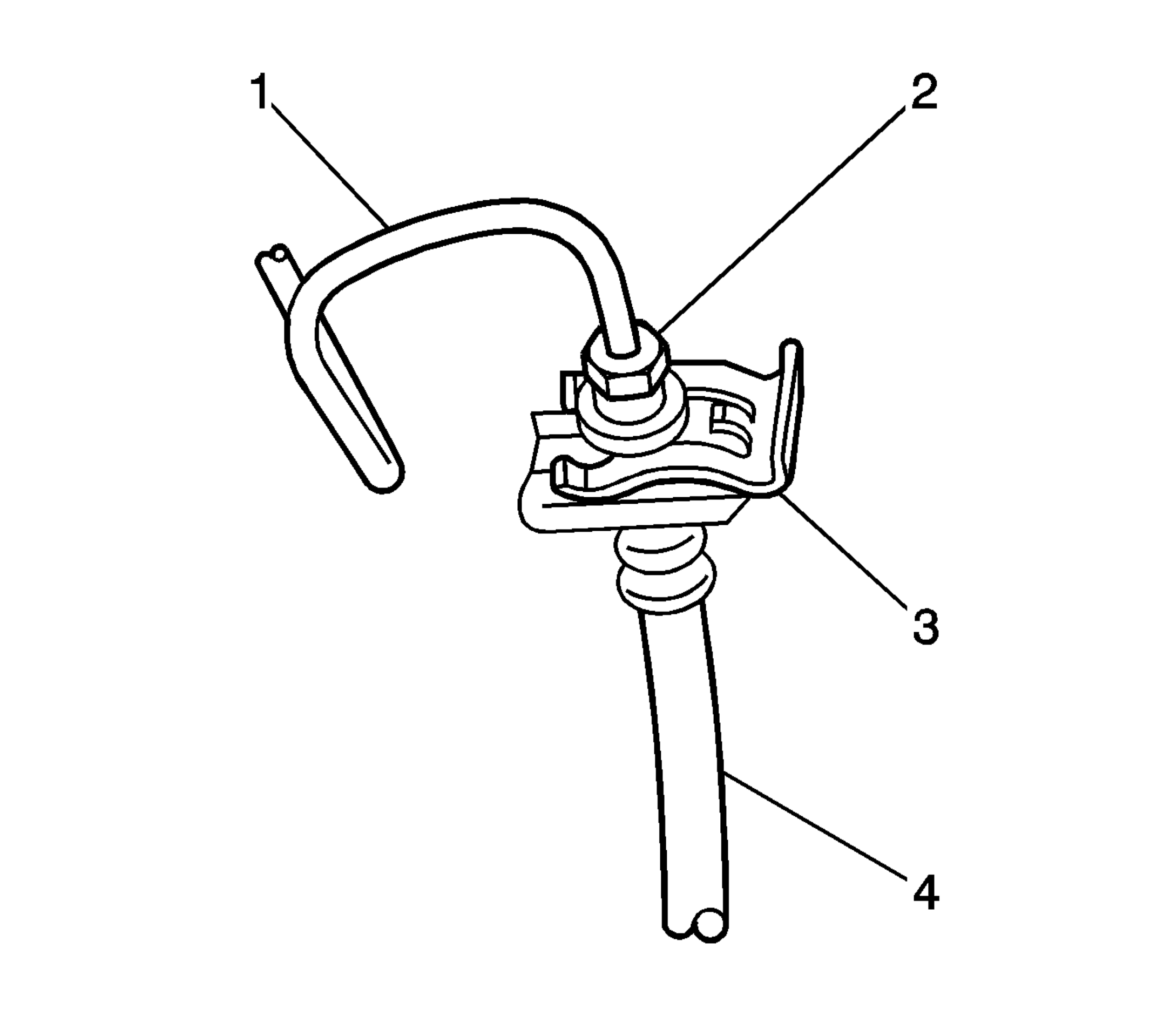

- Install the brake pipe (1) and the fittings (2).
- Install the brake pipe to the brackets as necessary.
- Install the brake pipe retainers (3) as necessary.
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding .
- If you removed a tire and wheel assembly, install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- If you raised the vehicle, lower the vehicle.
- Inspect the hydraulic brake system for leaks. Repair as necessary. Refer to Brake System External Leak Inspection .
IMPORTANT:
Consult the parts catalog for the brake pipe routing illustrations and the part numbers.
