Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backing plate with the rear wheel bearing and hub assembly. Refer to Wheel Bearing/Hub Replacement - Rear (FWD) or Wheel Bearing/Hub Replacement - Rear (AWD) in Rear Suspension.

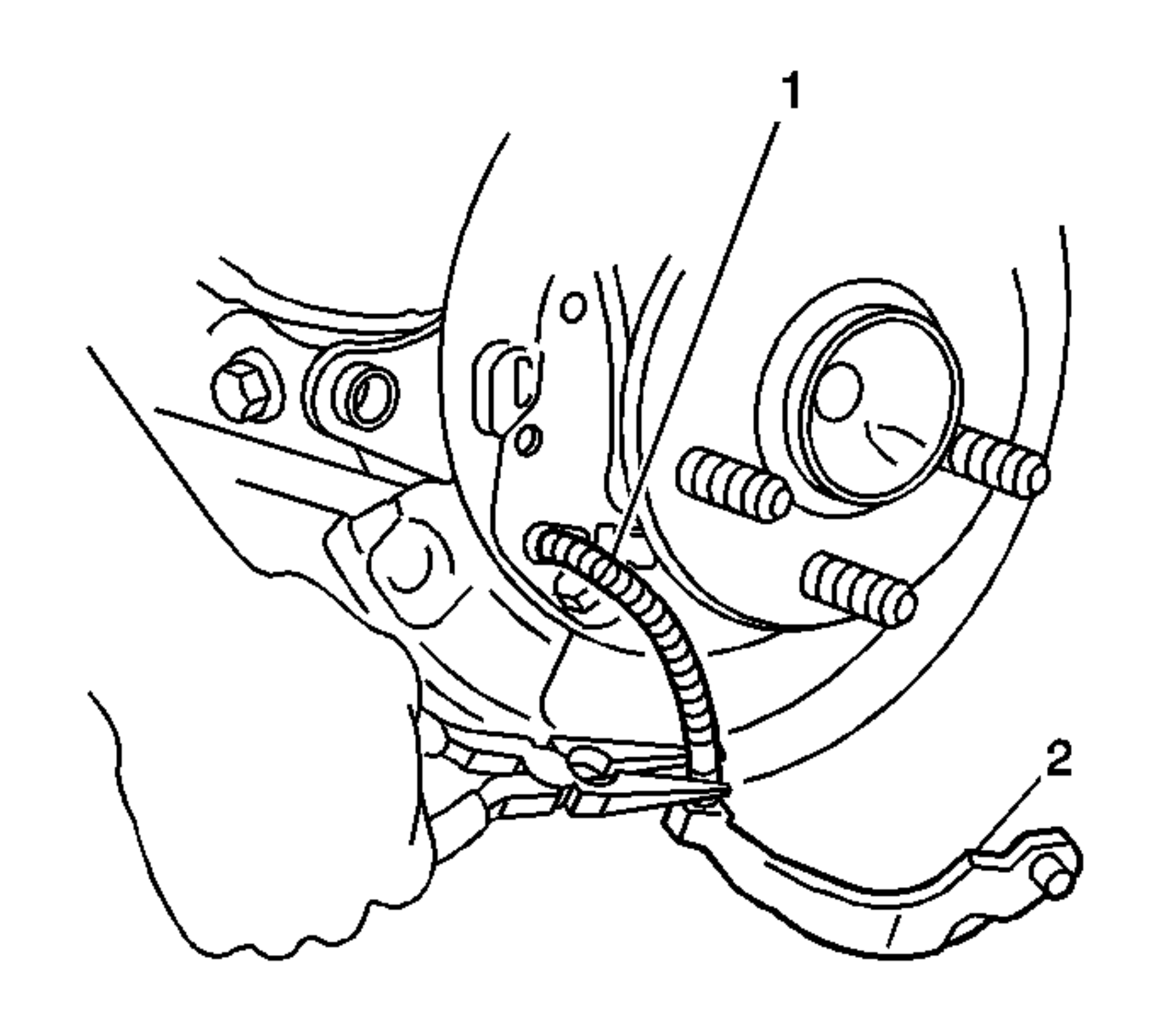

    2. Fig 1: Removing/Installing Park Brake Cable And Backing Plate
    GM818046Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the park brake cable (1) and the bolt to the backing plate.

    Tighten:  Tighten the bolt to 7.8 N.m (69.04 lb in).

  3. Install the park brake shoes and the hardware. Refer to Park Brake Shoe Replacement in Park Brake.
