Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Connect the HVAC control-auxiliary electrical connector.

Fig 1: Connecting HVAC Control-Auxiliary Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the HVAC control-auxiliary in the console bottom first.
Push in at the top of the HVAC control-auxiliary in order to engage the HVAC control-auxiliary in the console/seat.

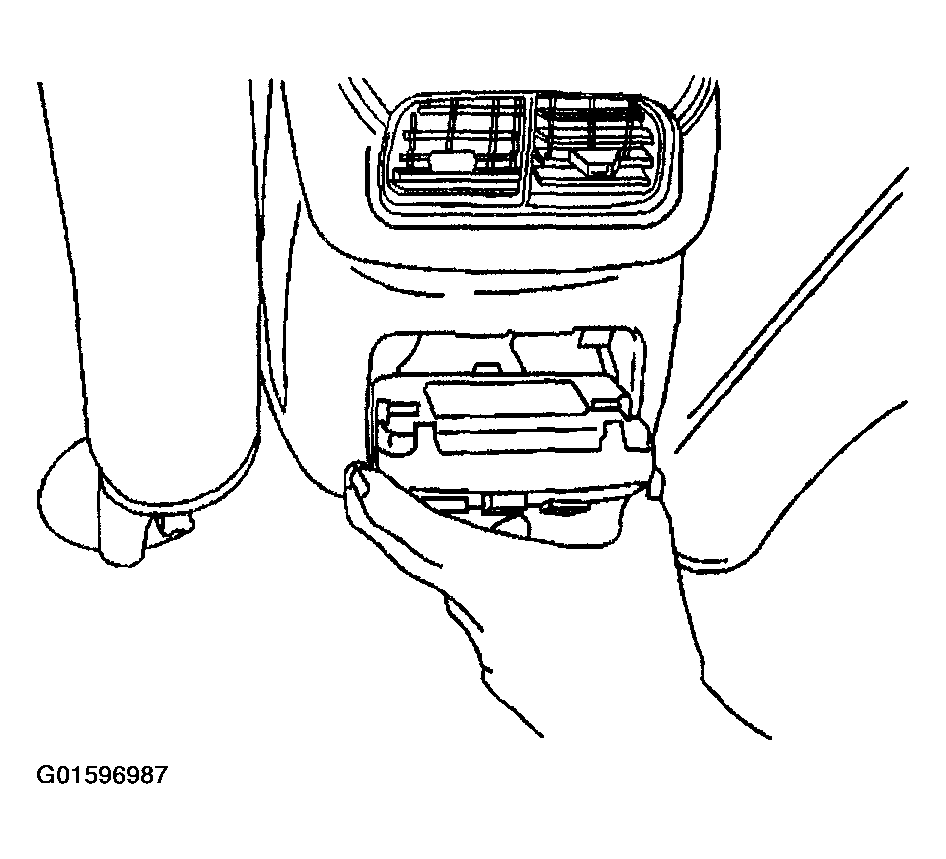

Fig 2: Installing HVAC Control-Auxiliary In Console
Courtesy of GENERAL MOTORS CORP.
