Air Temperature Sensor Connector End View - Outside
Air Temperature Sensor Connector End View - Outside

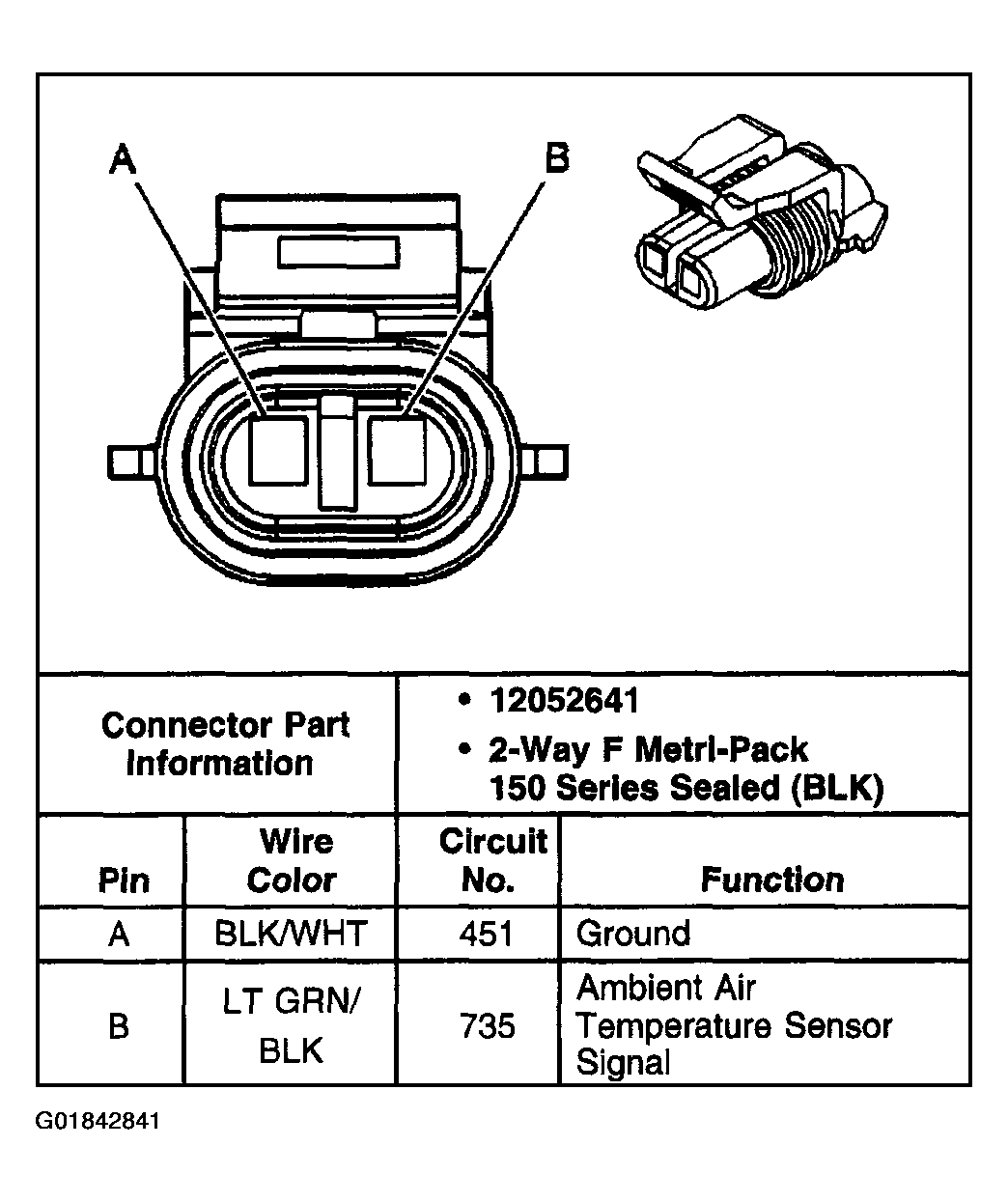

Fig 1: Air Temperature Sensor Connector End View - Outside
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
