Automatic Transmission Shift Lever Position Indicator Connector End View
Automatic Transmission Shift Lever Position Indicator Connector End View

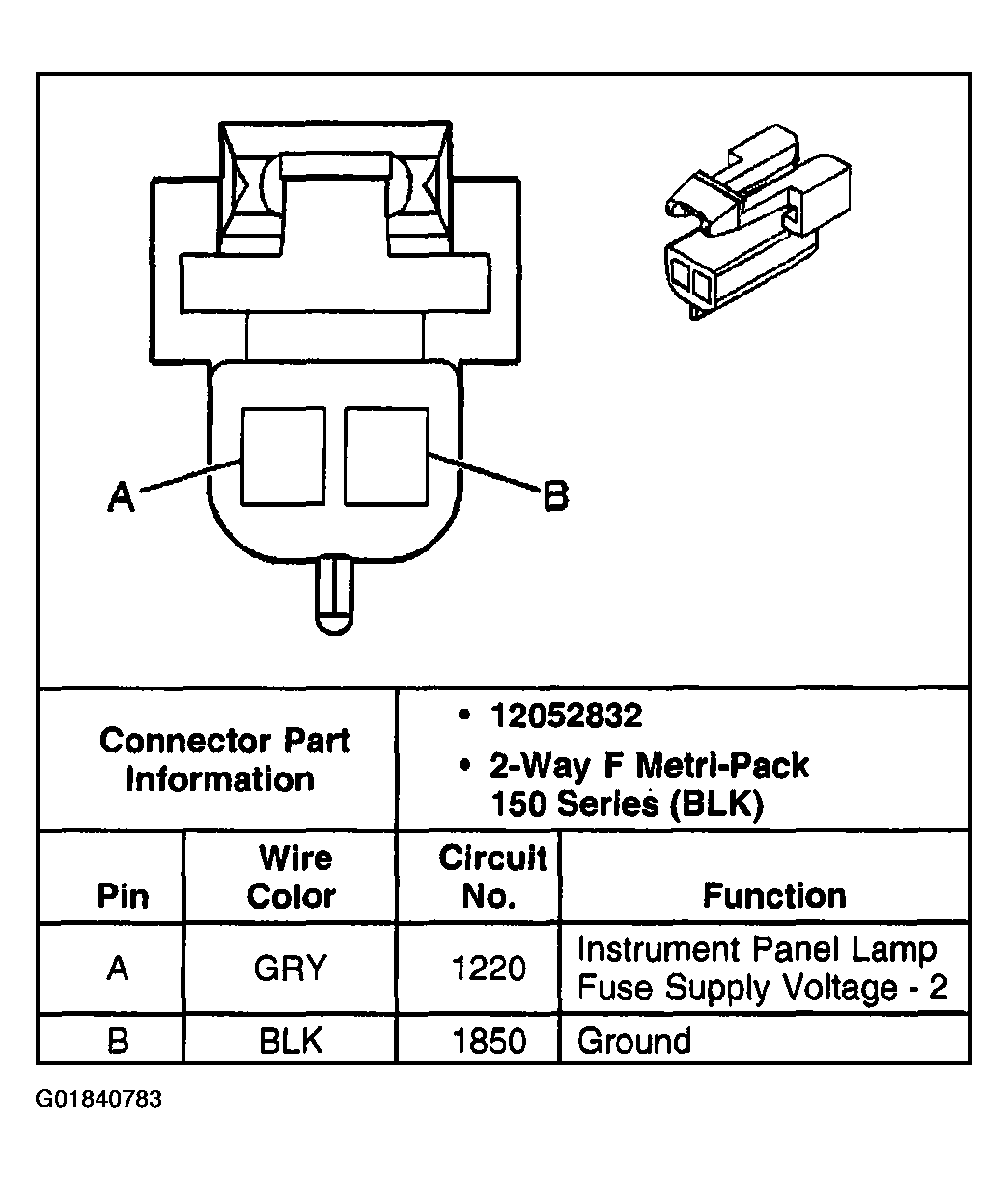

Fig 1: Automatic Transmission Shift Lever Position Indicator Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
