Jimmy 2D Utility, Part Time, Standard
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Identifying A/C Control Harness Connector End View (C1) Terminals
Identifying A/C Control Harness Connector End View (C1) Terminals

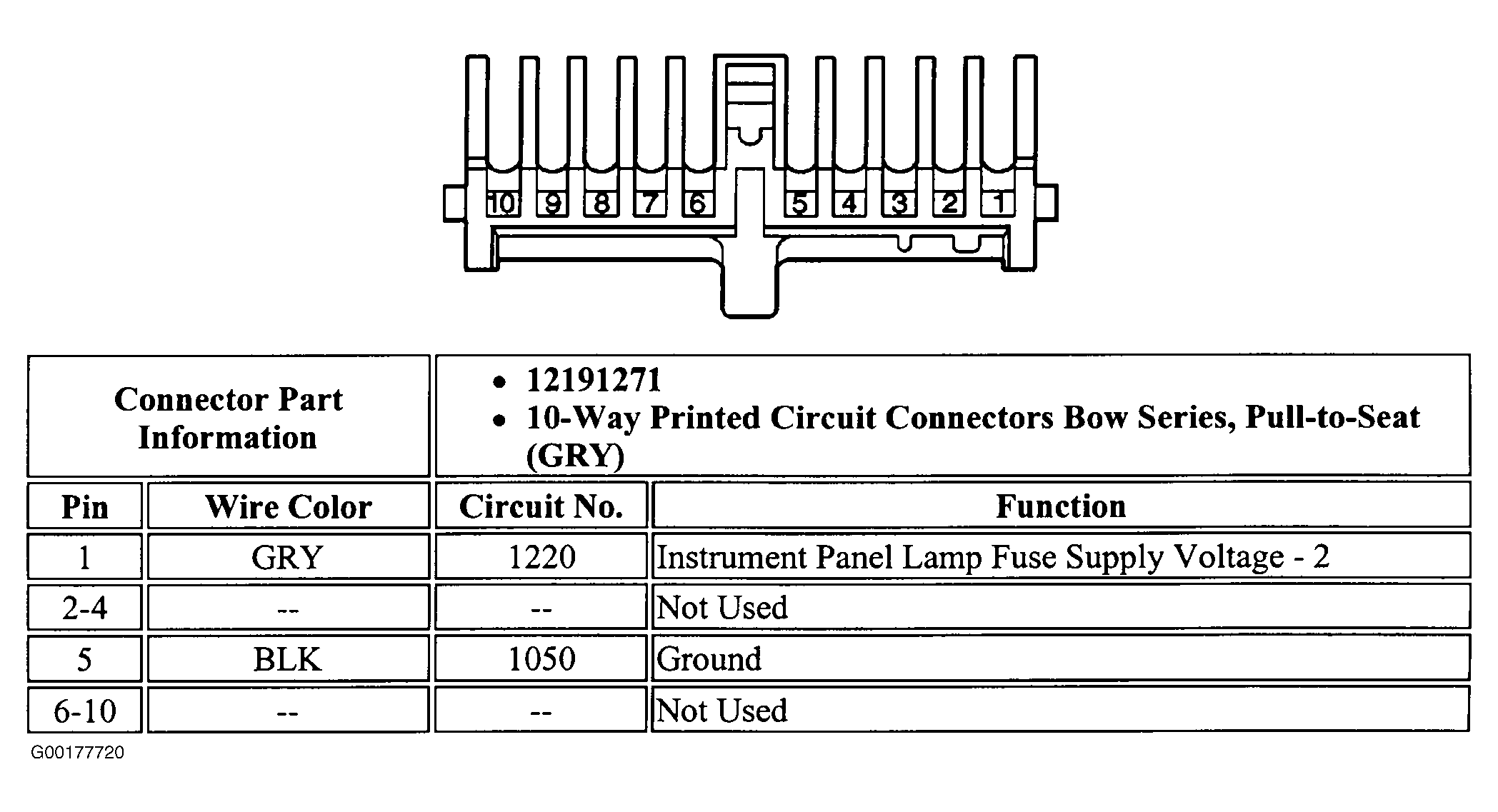

Fig 1: Identifying A/C Control Harness Connector End View (C1) Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
