Identifying Sunload Sensor Harness Connector End View
Identifying Sunload Sensor Harness Connector End View

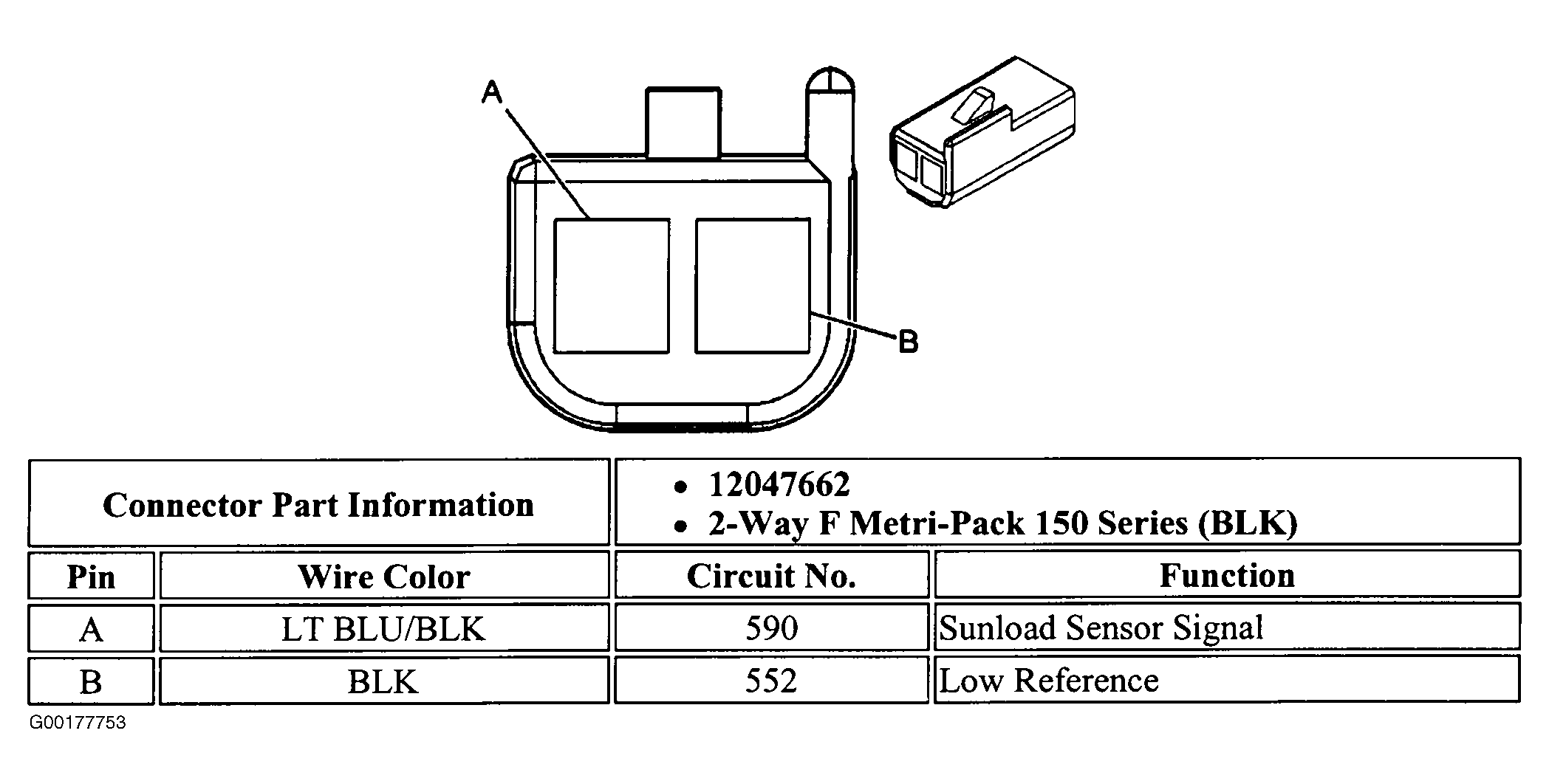

Fig 1: Identifying Sunload Sensor Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
