Steering Wheel Controls C2 Connector End View
Steering Wheel Controls C2 Connector End View

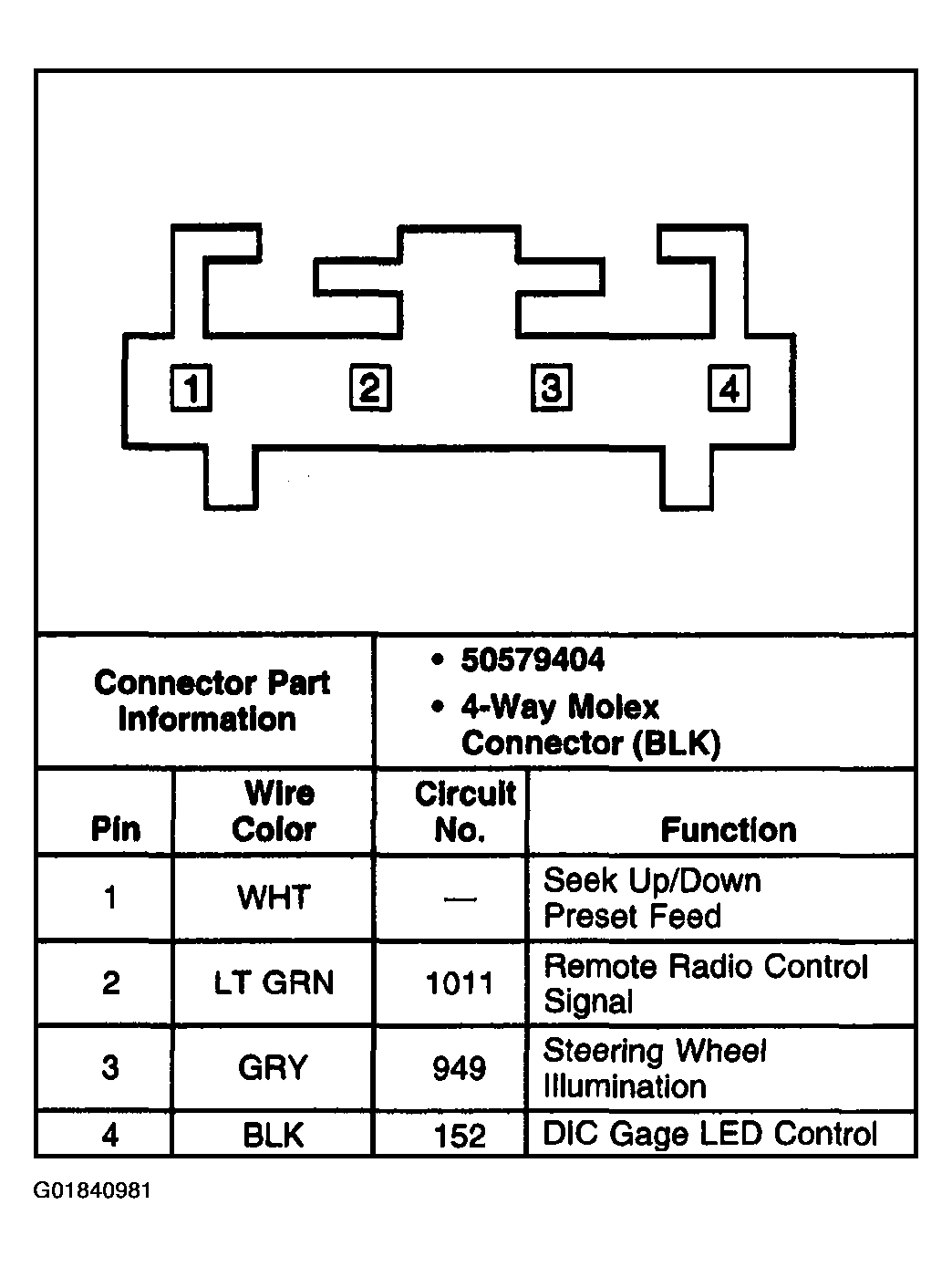

Fig 1: Steering Wheel Controls C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
