Horns Component Views

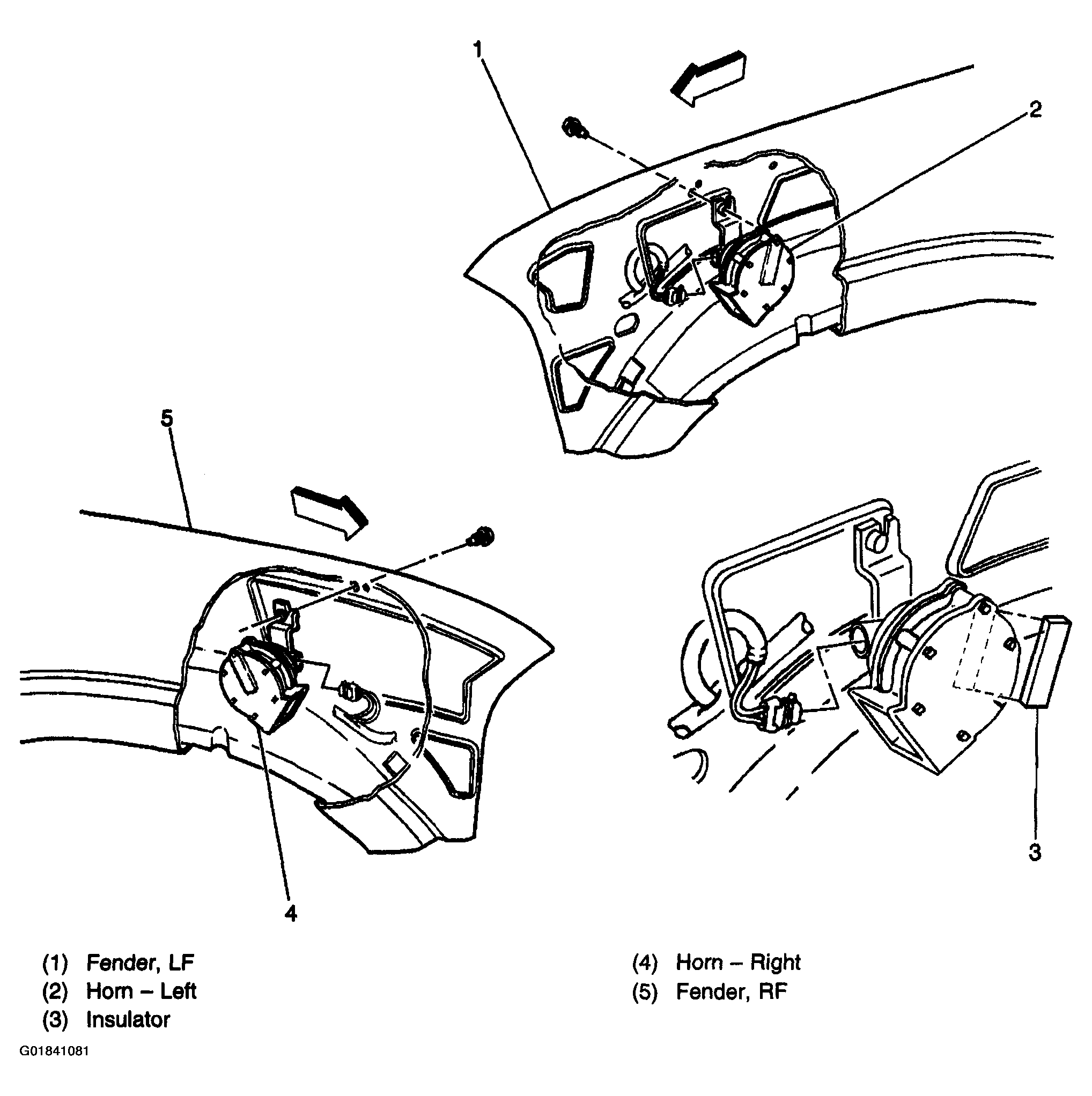

Fig 1: Locating Horns
G01841081Courtesy of GENERAL MOTORS CORP.

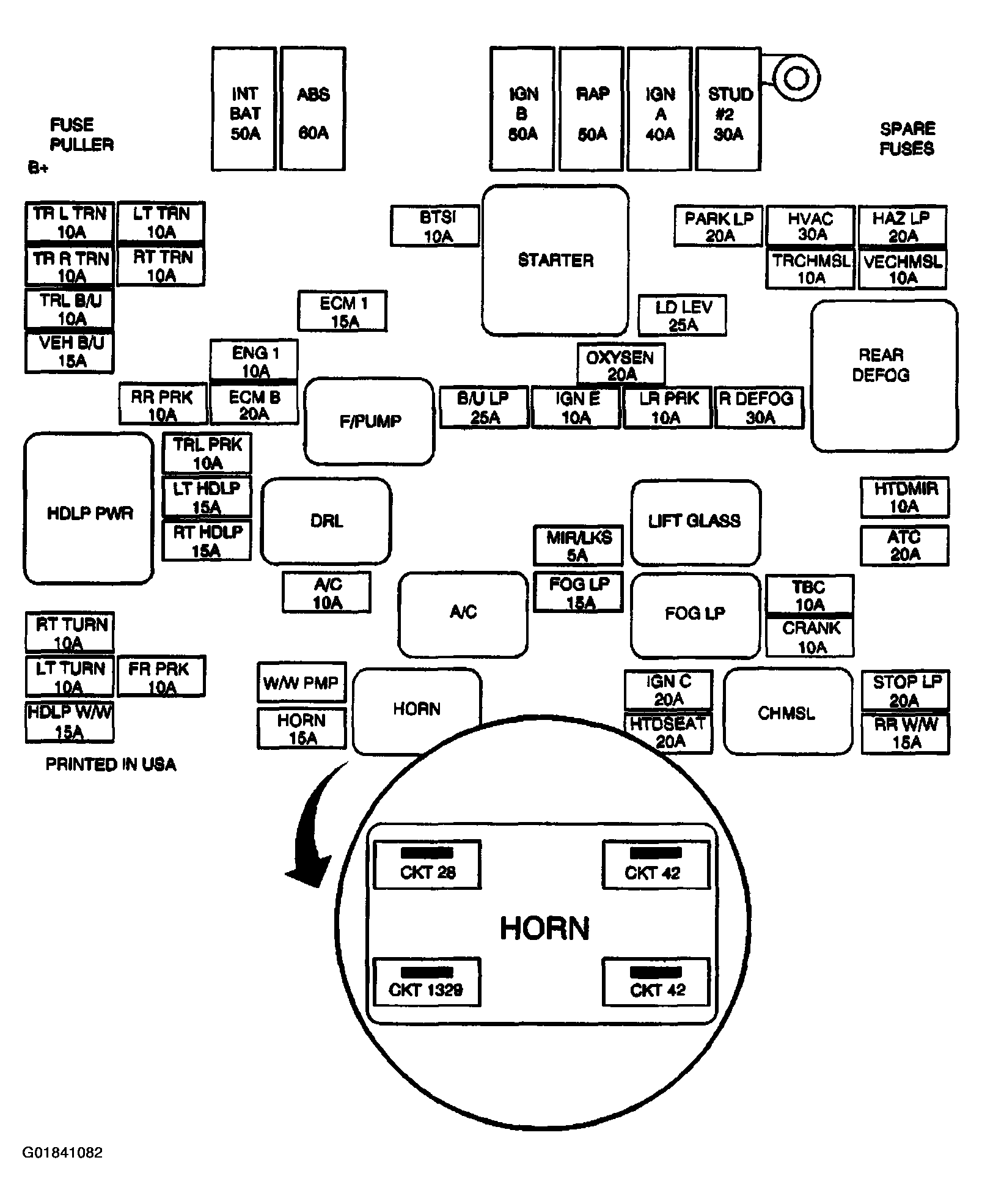

Fig 2: Horn Relay (Underhood Fuse/Relay Panel)
G01841082Courtesy of GENERAL MOTORS CORP.

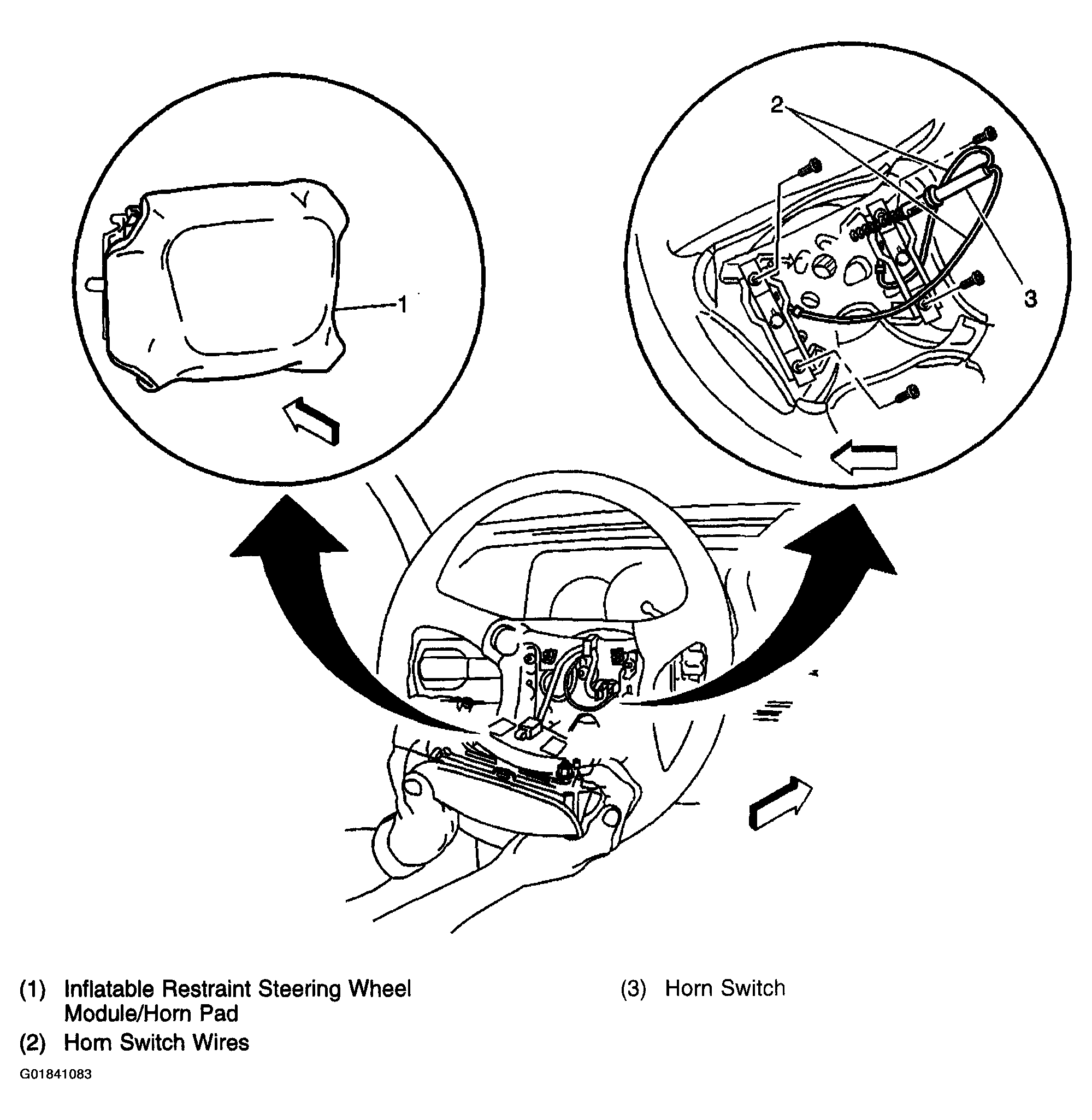

Fig 3: Inflatable Restraint Steering Wheel Module/Horn Pad
G01841083Courtesy of GENERAL MOTORS CORP.
