Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the radio antenna cable assembly to the vehicle.

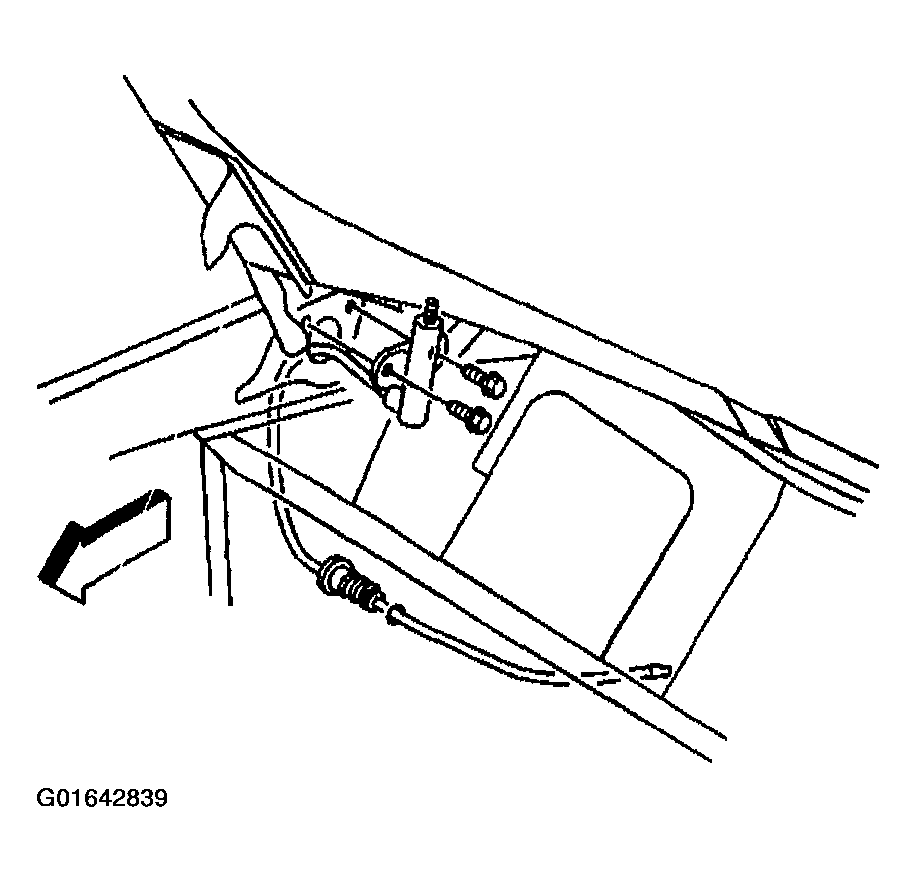

Pass the antenna cable and grommet assembly through the fender opening.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the radio antenna cable assembly retaining screws.
Tighten

Tighten the radio antenna cable assembly screws to 2.8 N.m (25 lb in).
Close the hood.
Install the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .

Fig 1: Installing Radio Antenna Cable Assembly To Vehicle
Courtesy of GENERAL MOTORS CORP.

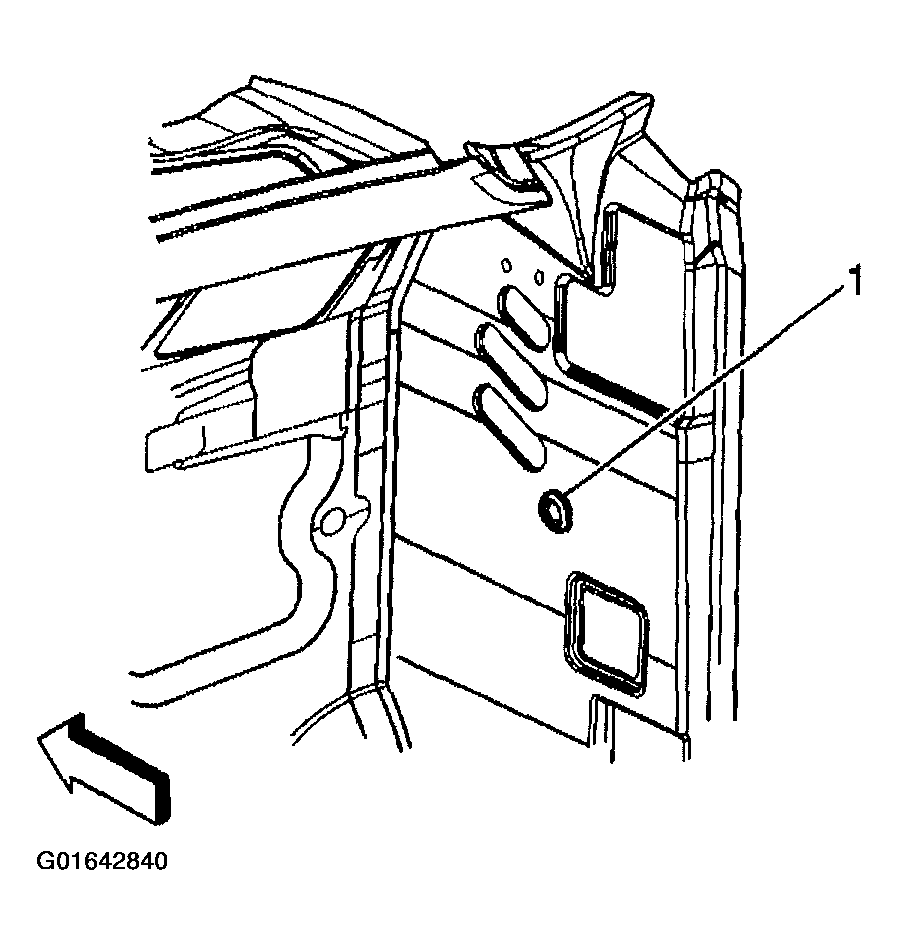

Reach up behind the wheelhouse panel and pass the end of the radio antenna cable assembly through the cowl opening (1).
Install the antenna cable grommet assembly to the cowl opening.
Install the wheelhouse panel. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.

Fig 2: Installing Antenna Cable Grommet Assembly To Cowl Opening
Courtesy of GENERAL MOTORS CORP.

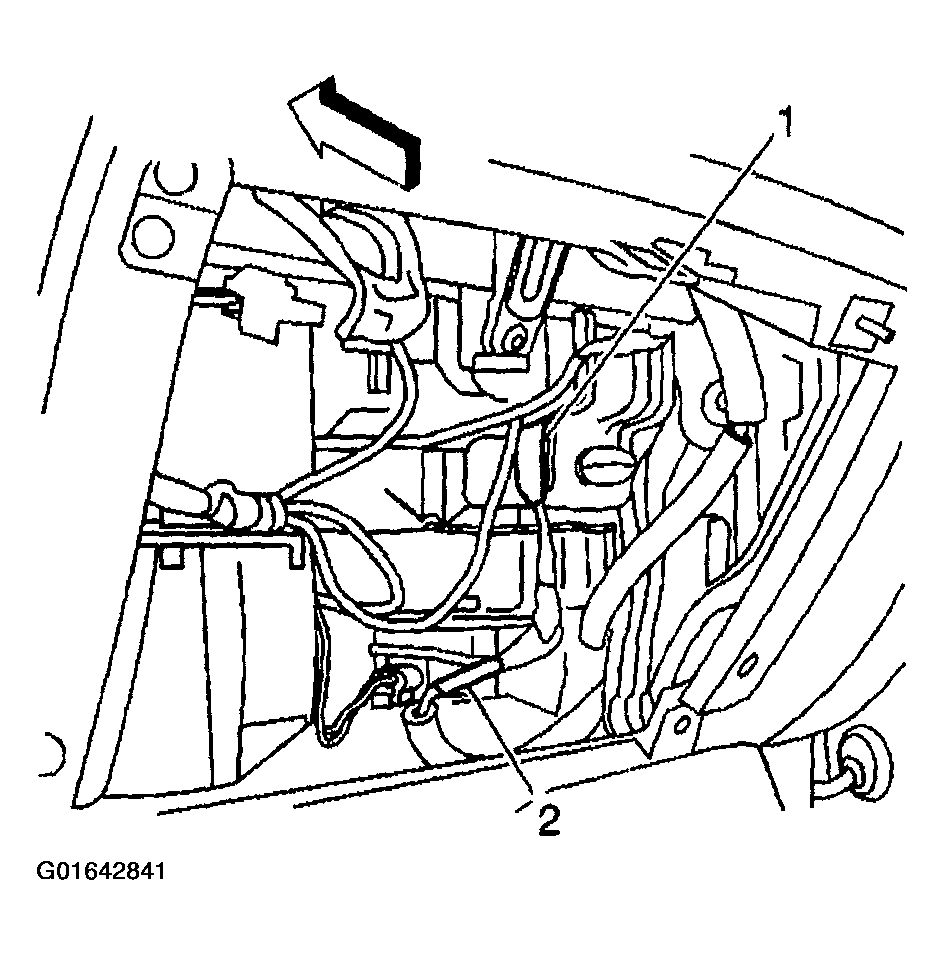

Install the radio antenna cable (2) to the radio extension cable.
Close the I/P compartment.

Fig 3: Installing Radio Antenna Cable To Radio Extension Cable
Courtesy of GENERAL MOTORS CORP.
