Seat Adjuster Memory Module Connector

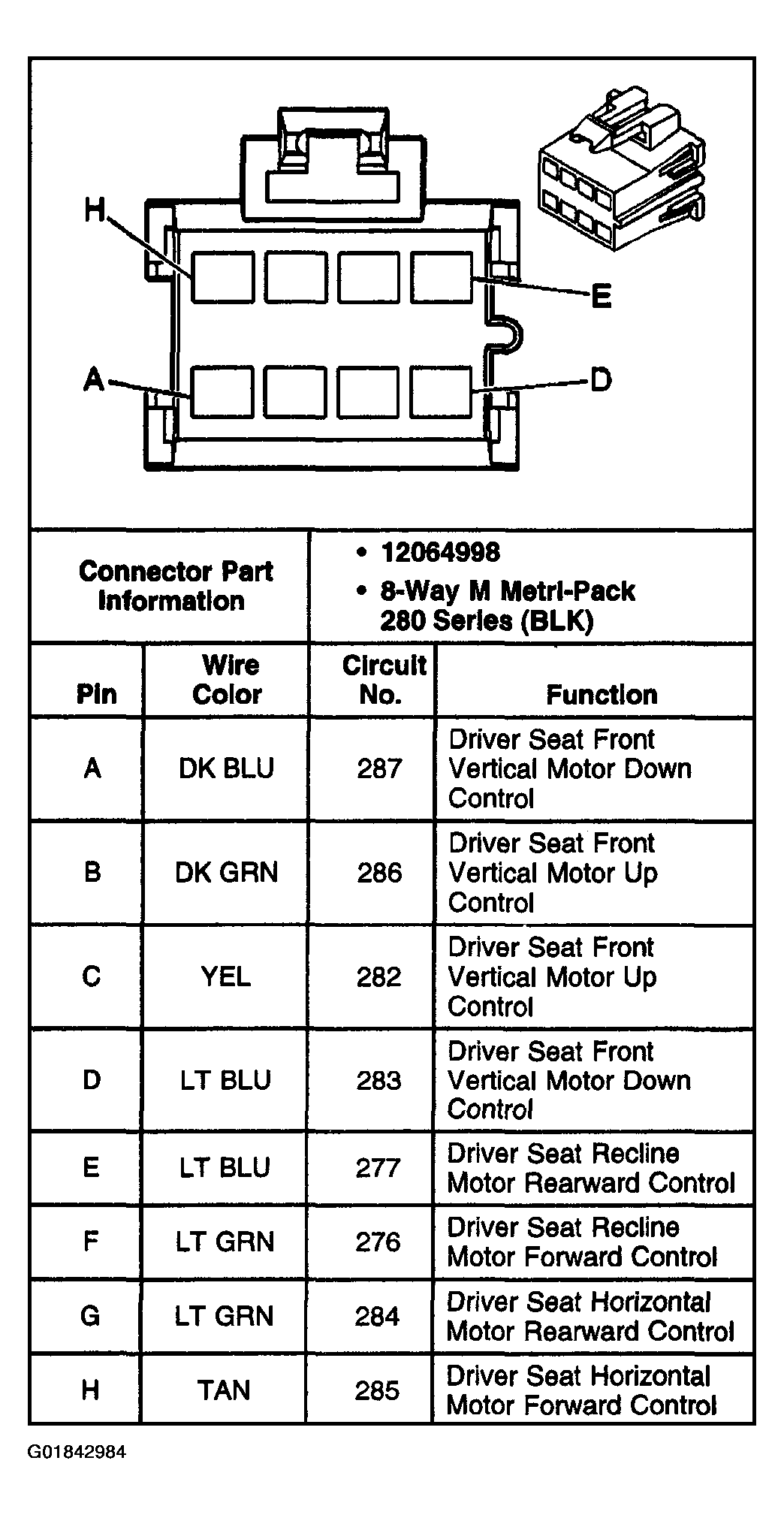

Fig 1: Seat Adjuster Memory Module Connector - C2
G01842984Courtesy of GENERAL MOTORS CORP.

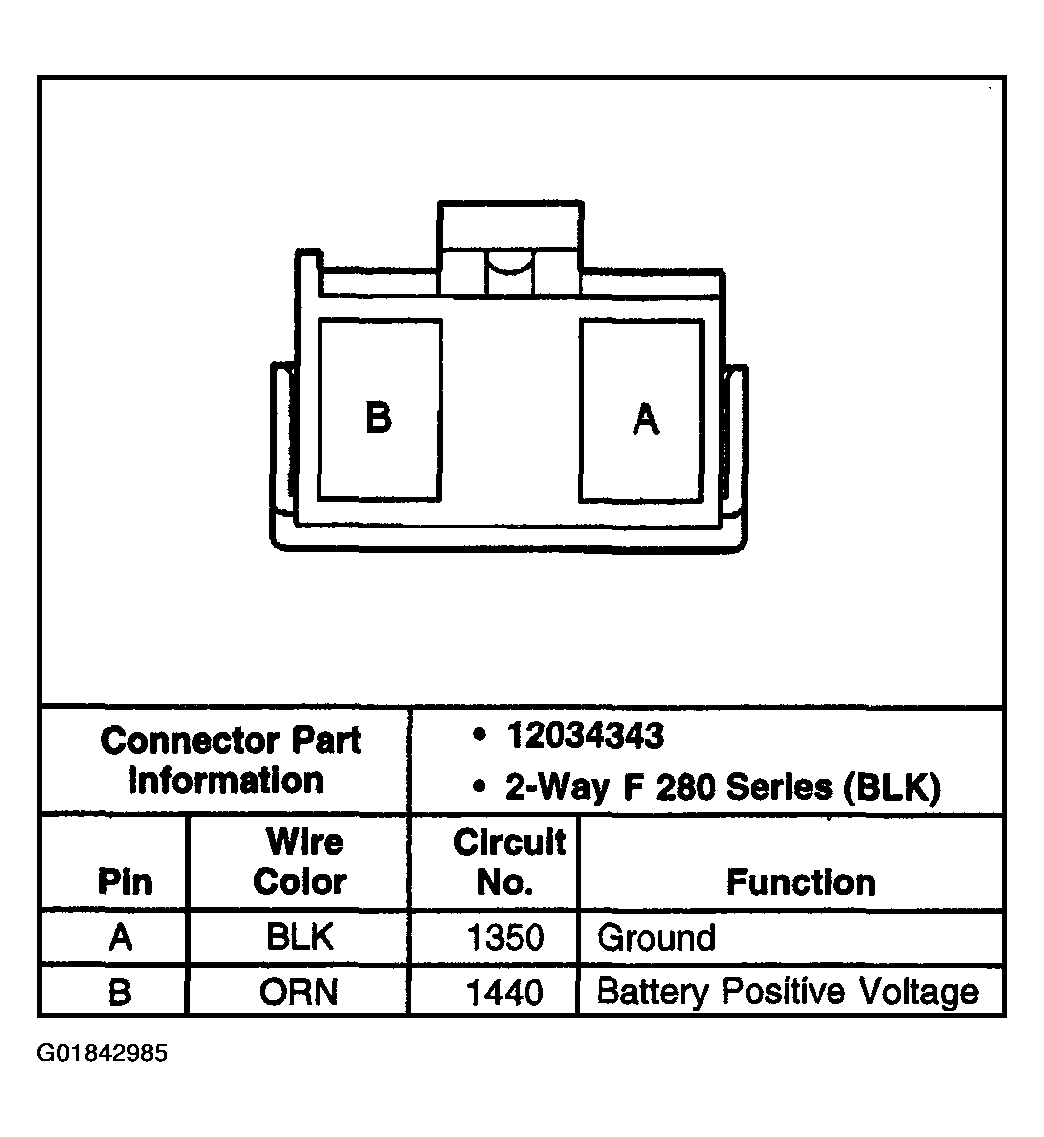

Fig 2: Seat Adjuster Memory Module Connector - C3
G01842985Courtesy of GENERAL MOTORS CORP.
