Memory Seats Schematics

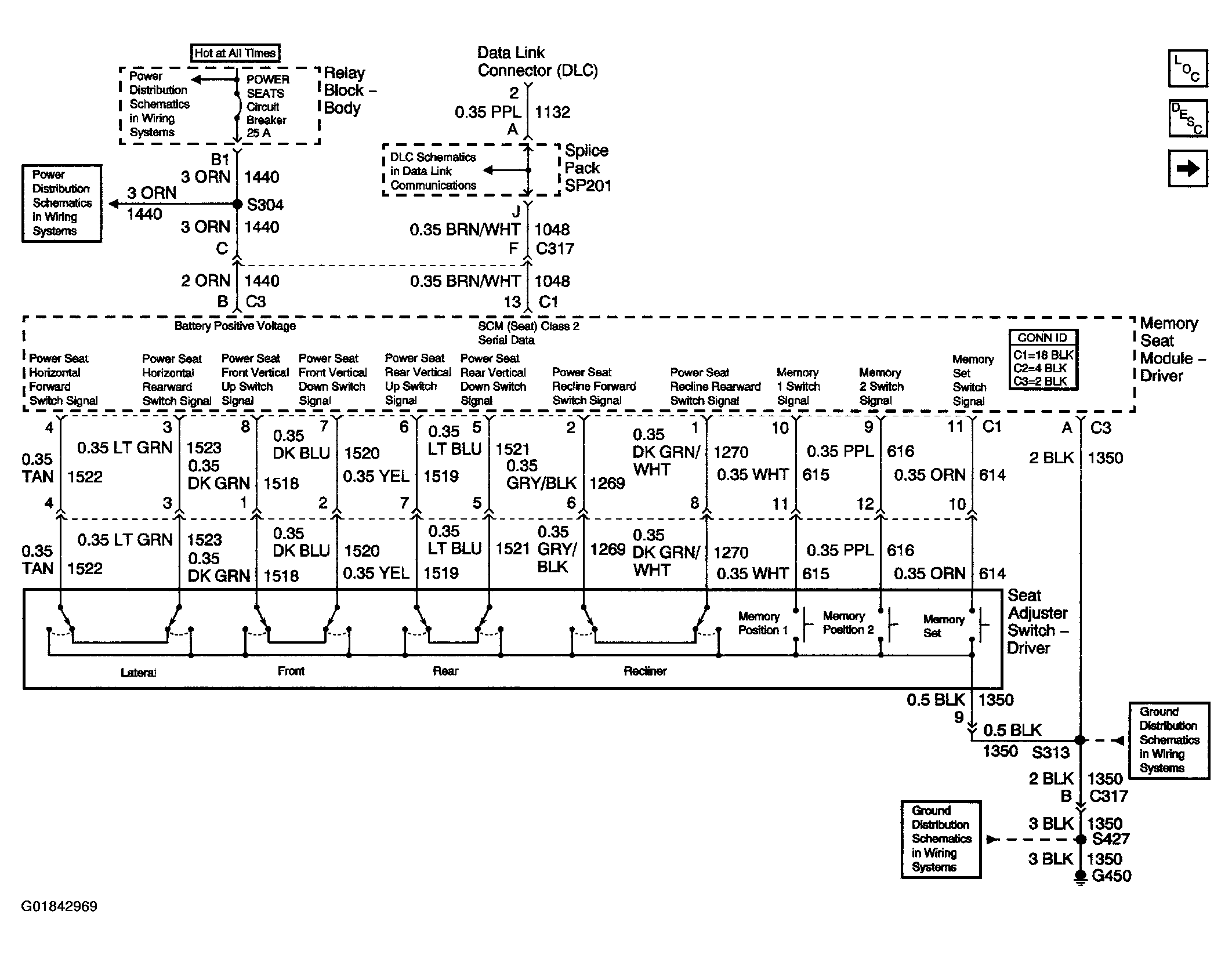

Fig 1: Memory Seats Schematics (Power, Ground, Data Link Connector (DLC) & Power Seat Adjuster Switch)
G01842969Courtesy of GENERAL MOTORS CORP.

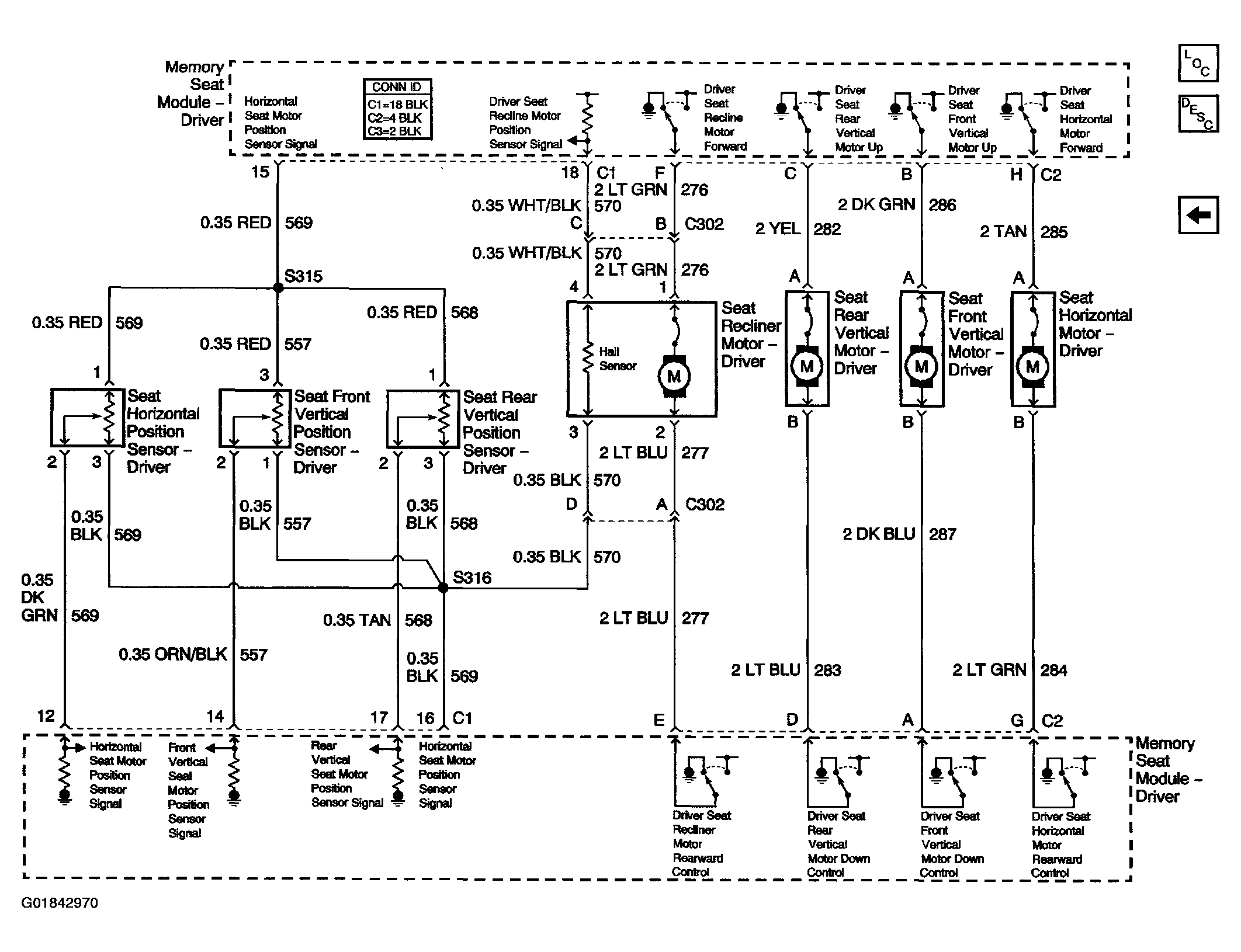

Fig 2: Memory Seats Schematics (Seat Adjuster Memory Module, Transducers & Motors)
G01842970Courtesy of GENERAL MOTORS CORP.
