Heated Seat Control Module Connector End View - Driver/Front Passenger

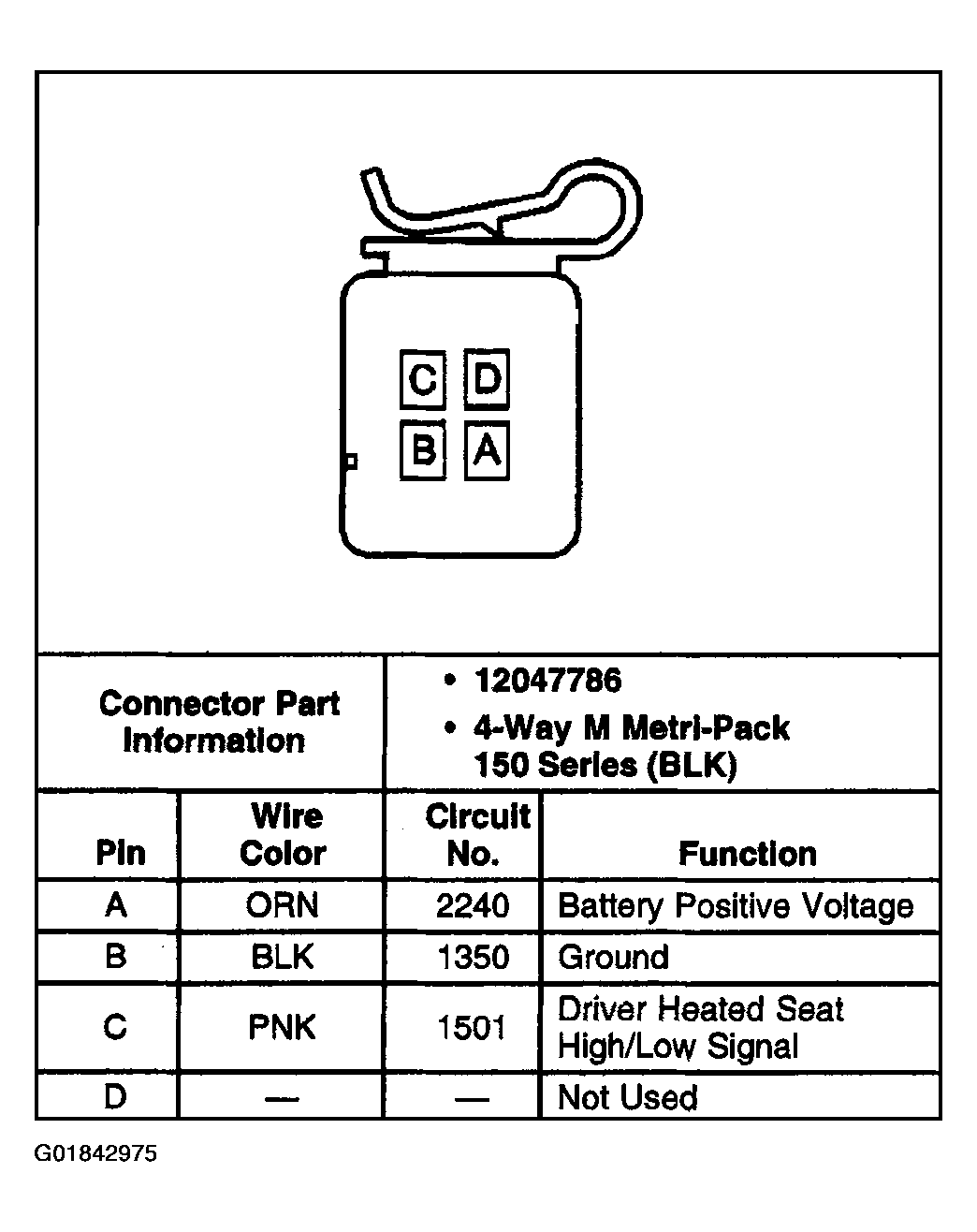

Fig 1: Heated Seat Control Module Connector End View - Driver/Front Passenger
G01842975Courtesy of GENERAL MOTORS CORP.
