Sunroof Opening Position Switch Connector End View
Sunroof Opening Position Switch Connector End View

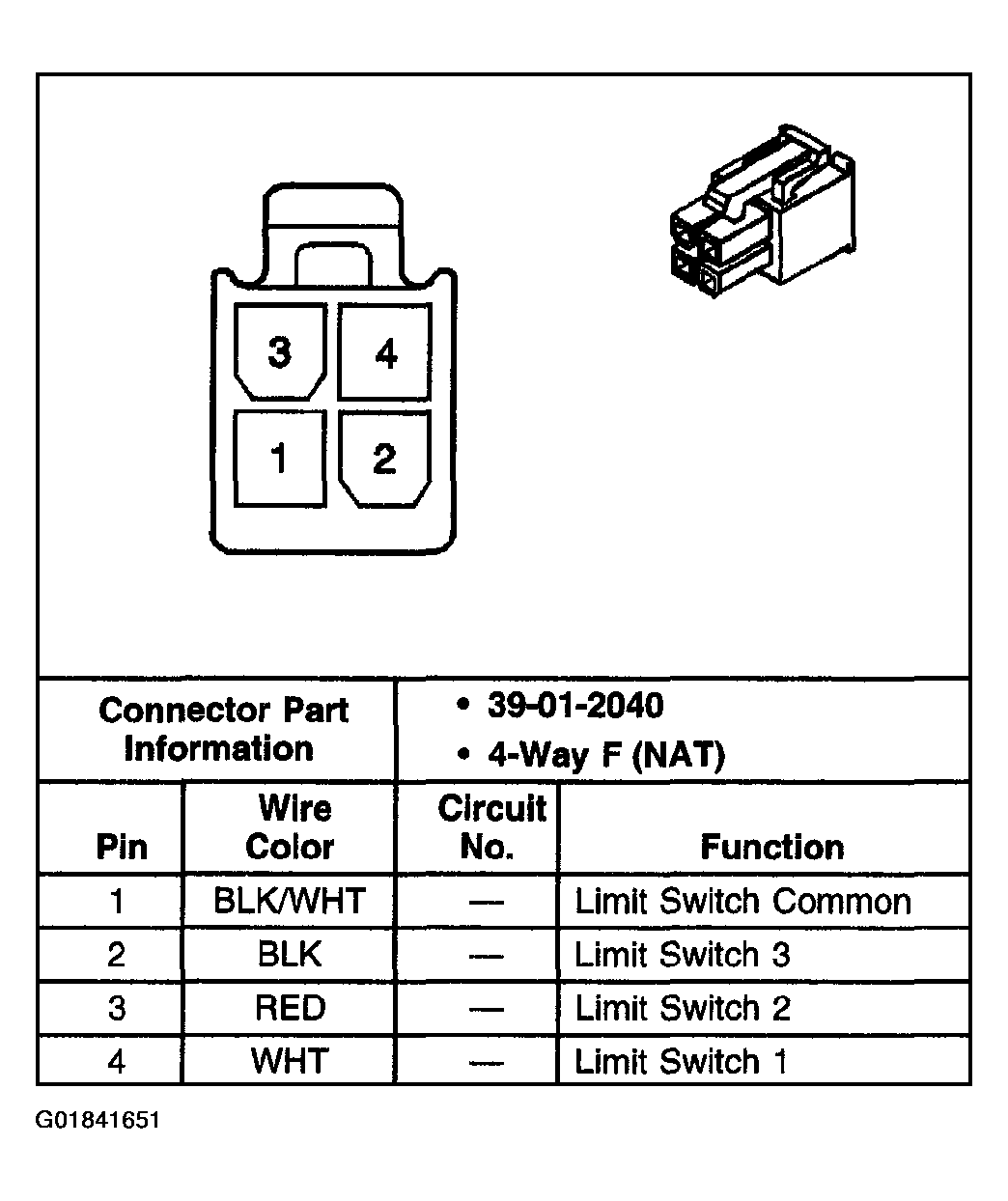

Fig 1: Sunroof Opening Position Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
