Transfer Case Shift Control Module Connector End View C1 (1 Of 2)

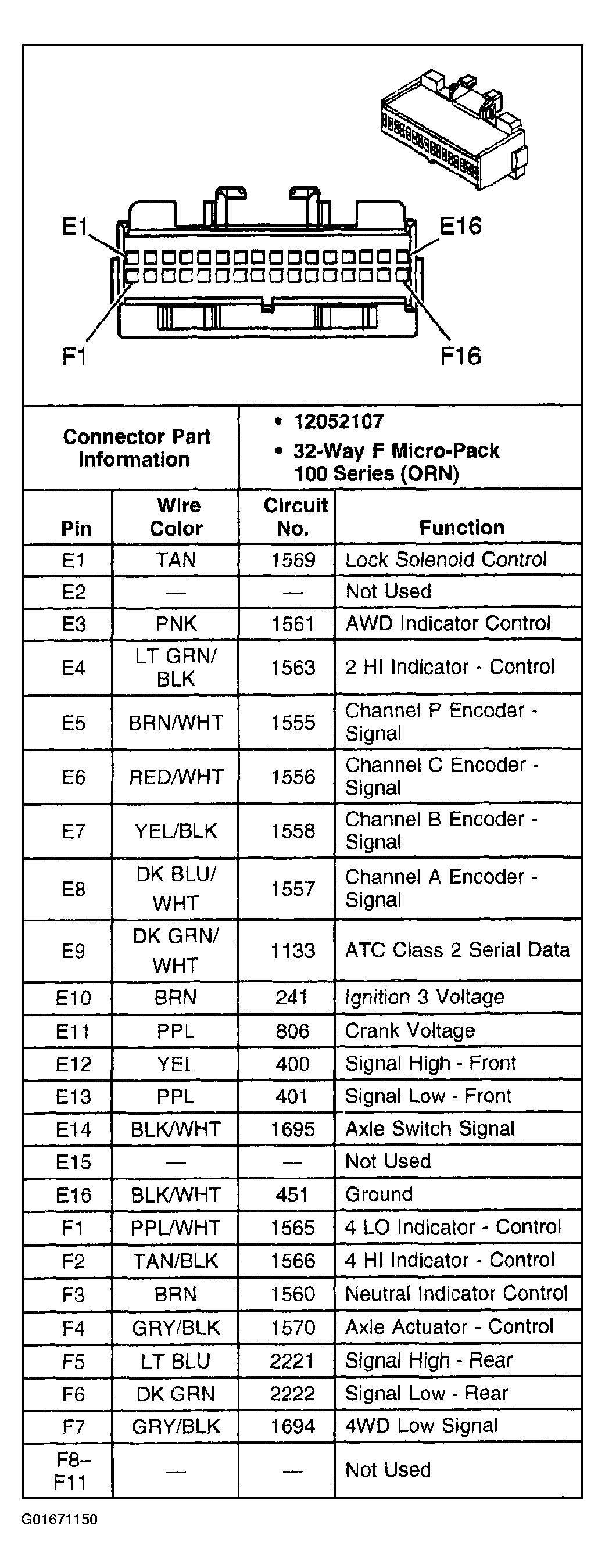

Fig 1: Transfer Case Shift Control Module Connector End View C1 (1 Of 2)
G01671150Courtesy of GENERAL MOTORS CORP.
