FixVault
Home
›
GMC
›
2002
›
Jimmy 4D Utility, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Turn Signal/Hazard Flasher Module Connector End View
Turn Signal/Hazard Flasher Module Connector End View

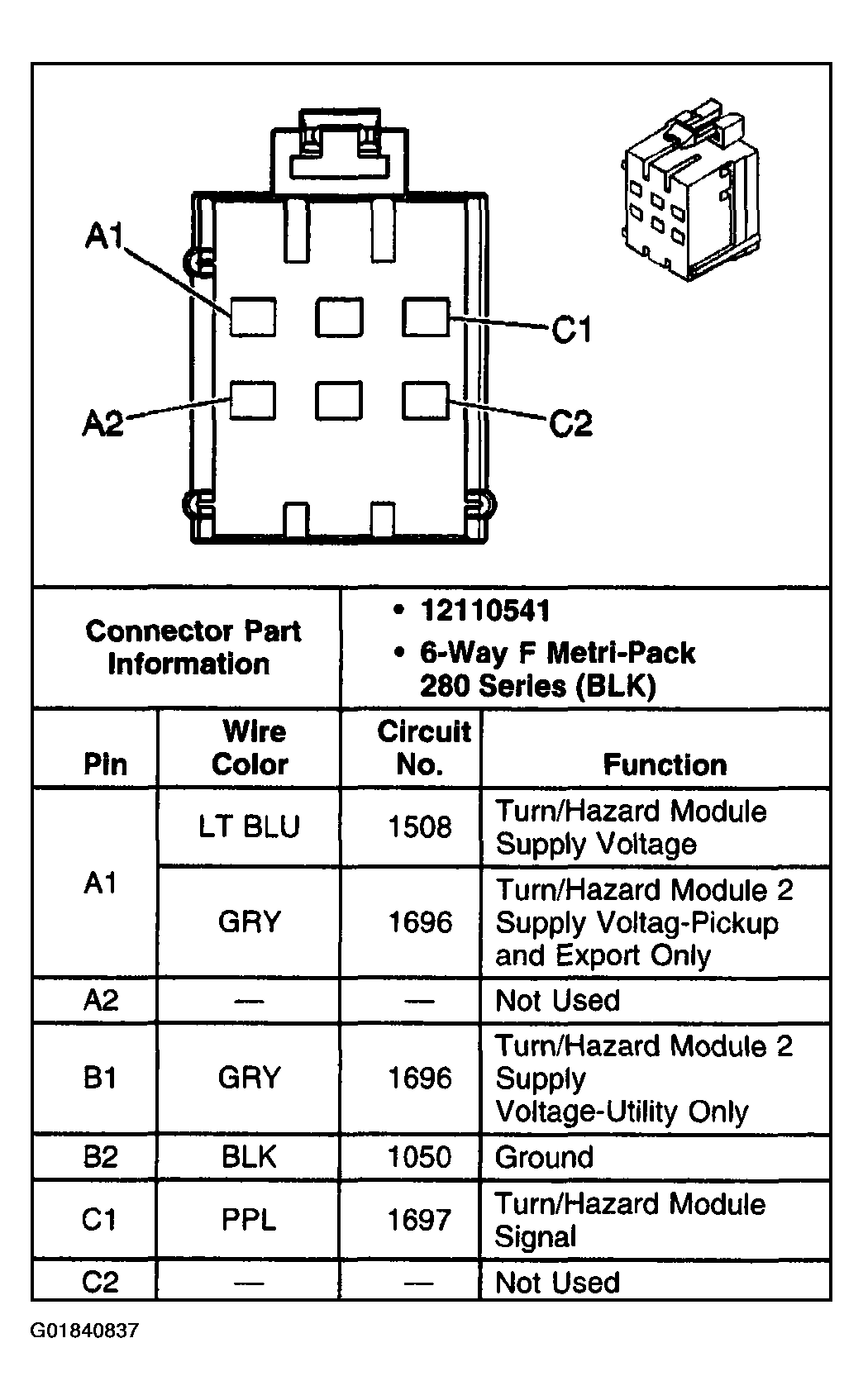

Fig 1: Turn Signal/Hazard Flasher Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
