Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

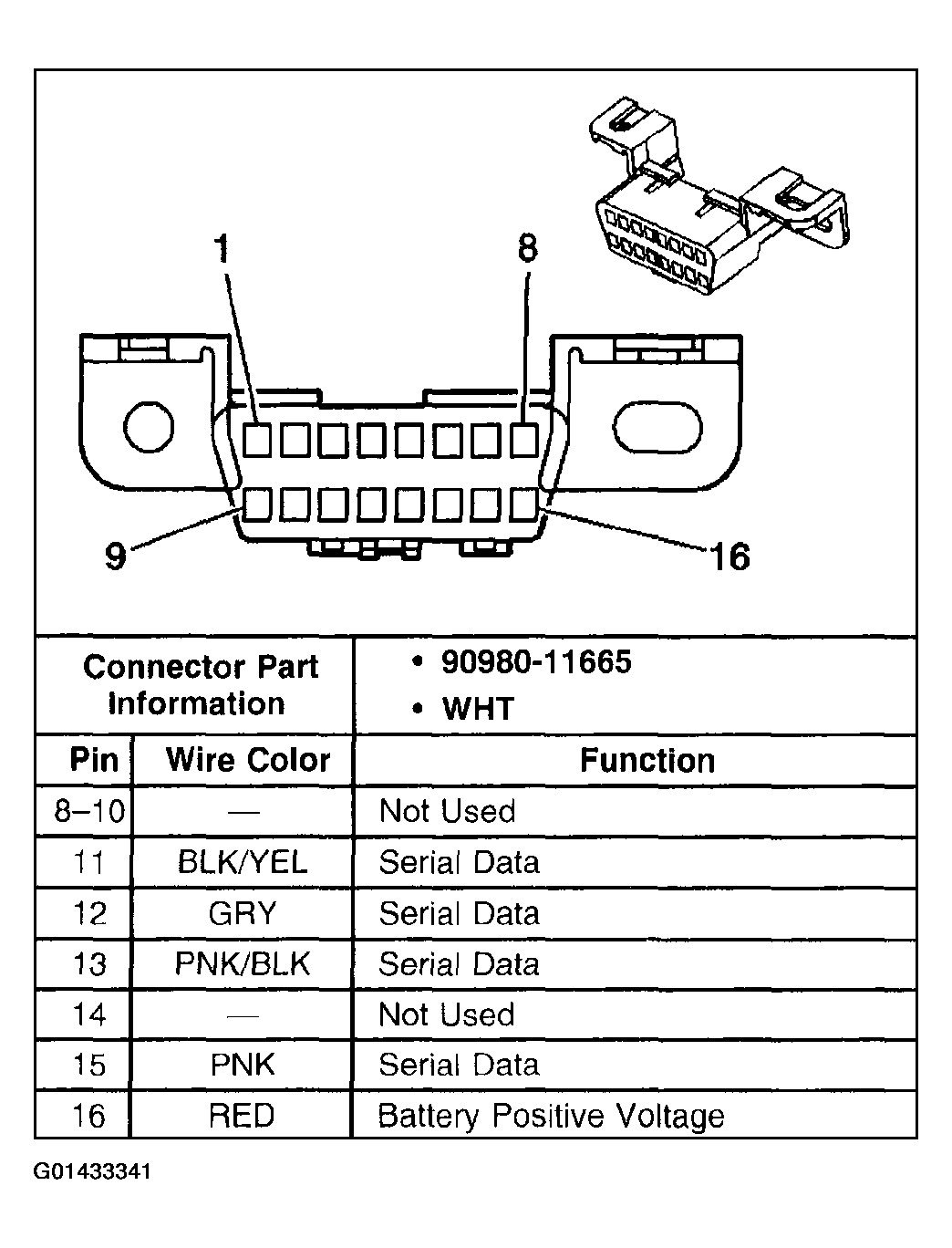

Fig 1: Identifying Data Link Connector (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

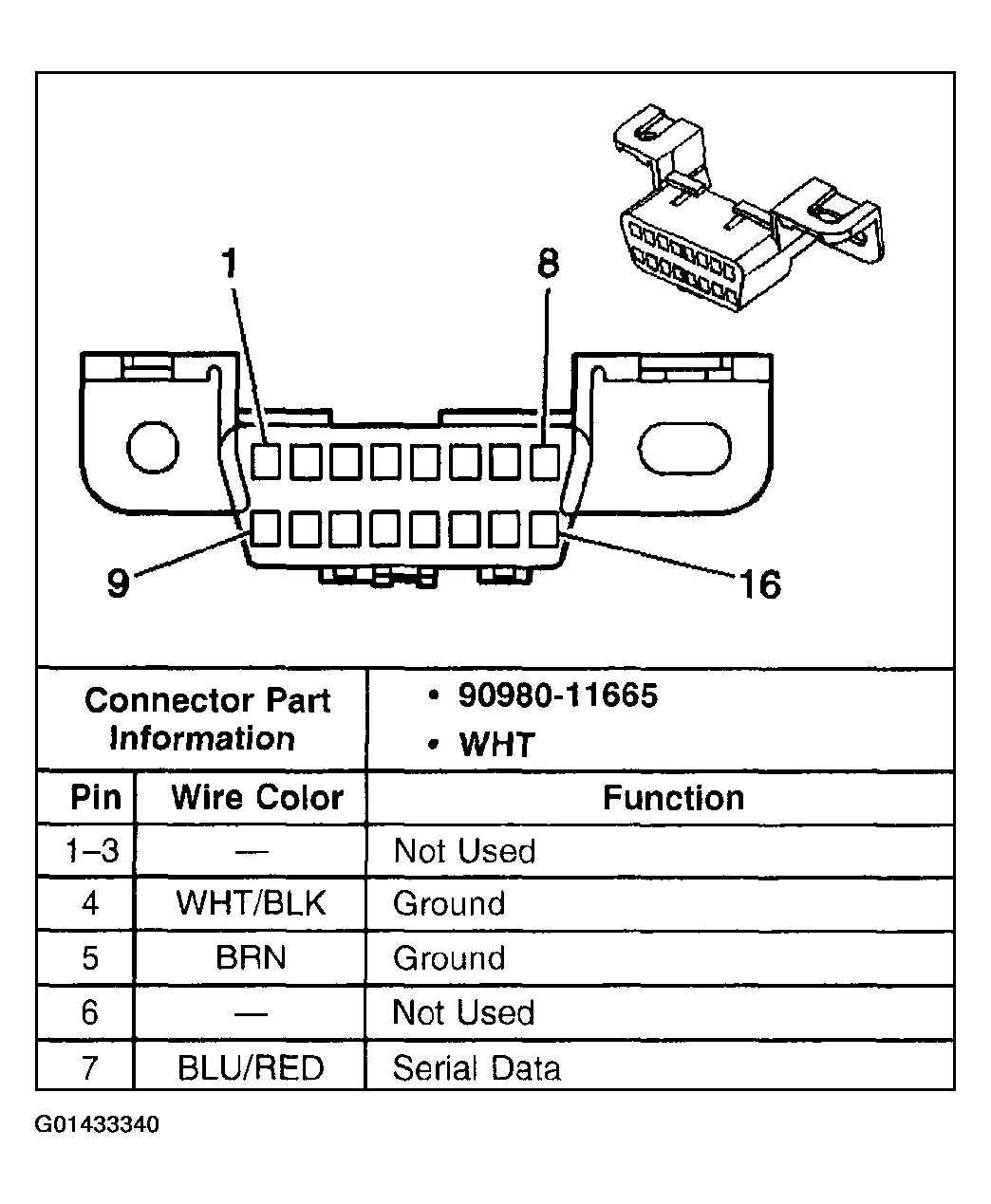

Fig 2: Identifying Data Link Connector (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
