Audio Amplifier Connector End View C2

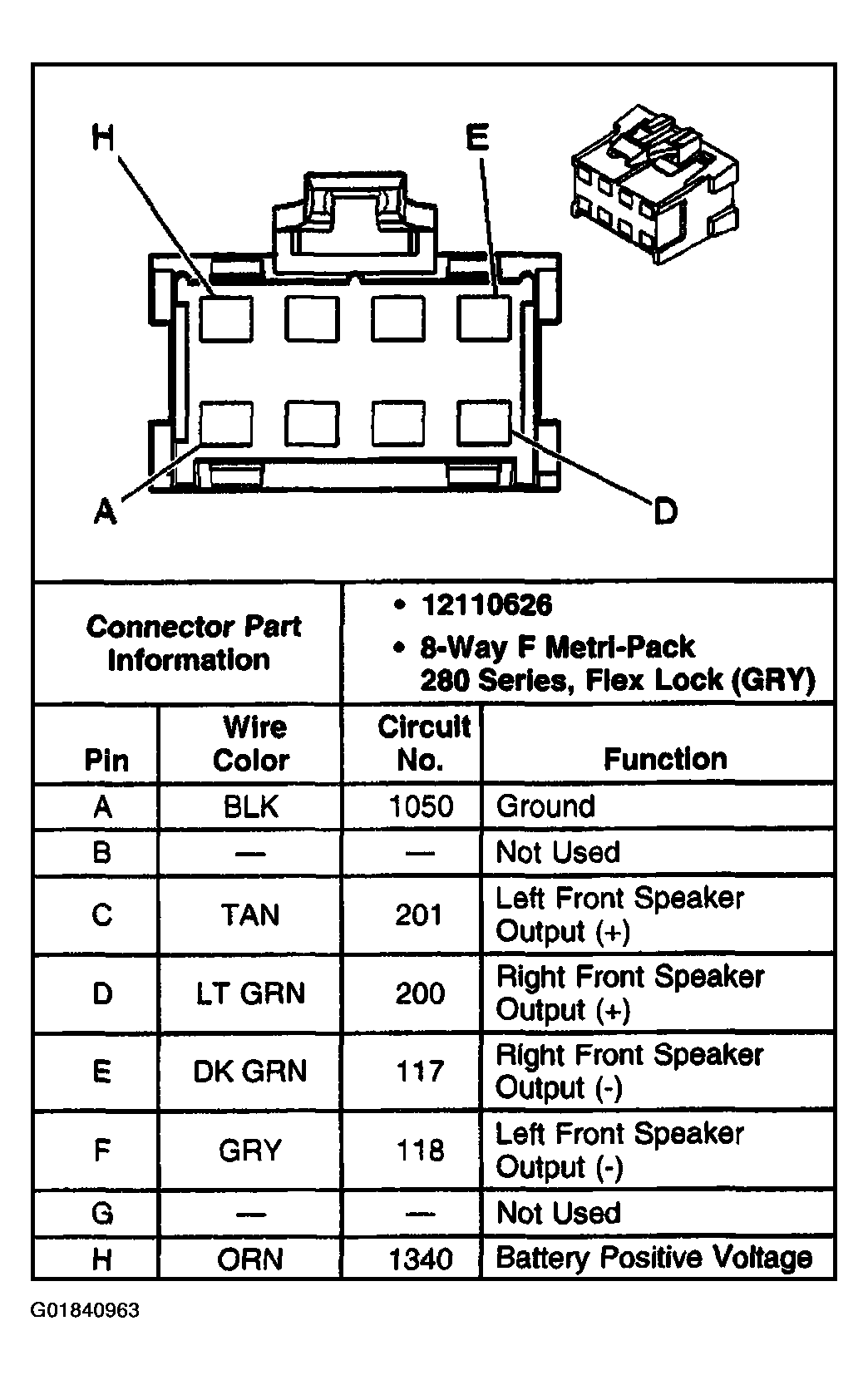

Fig 1: Audio Amplifier Connector End View C2
G01840963Courtesy of GENERAL MOTORS CORP.
