Headlamp Leveling Switch Connector End View - Export Only
Headlamp Leveling Switch Connector End View - Export Only

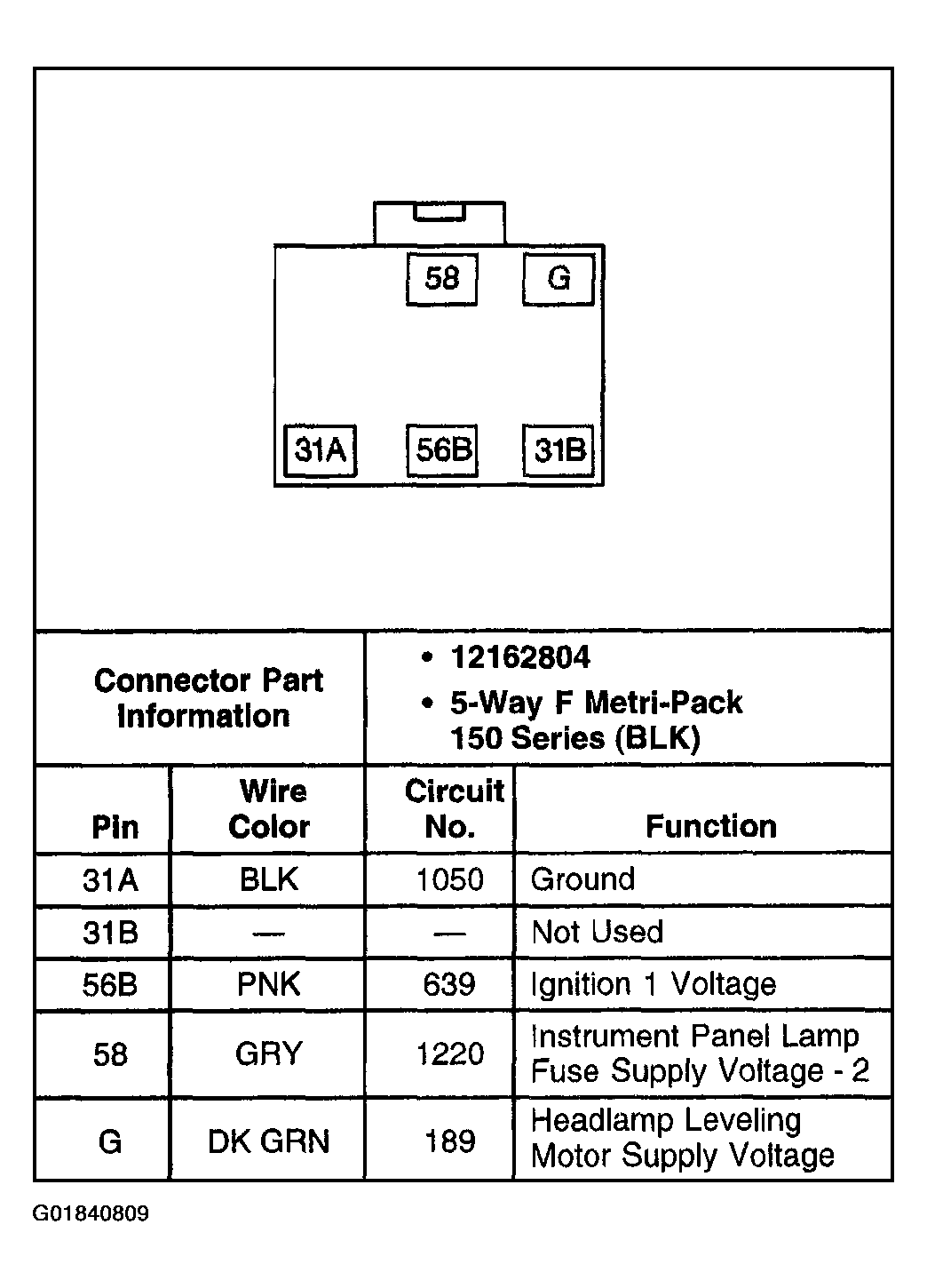

Fig 1: Headlamp Leveling Switch Connector End View - Export Only
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
