Identifying Lower Air Temperature Sensor Harness Connector End View
Identifying Lower Air Temperature Sensor Harness Connector End View

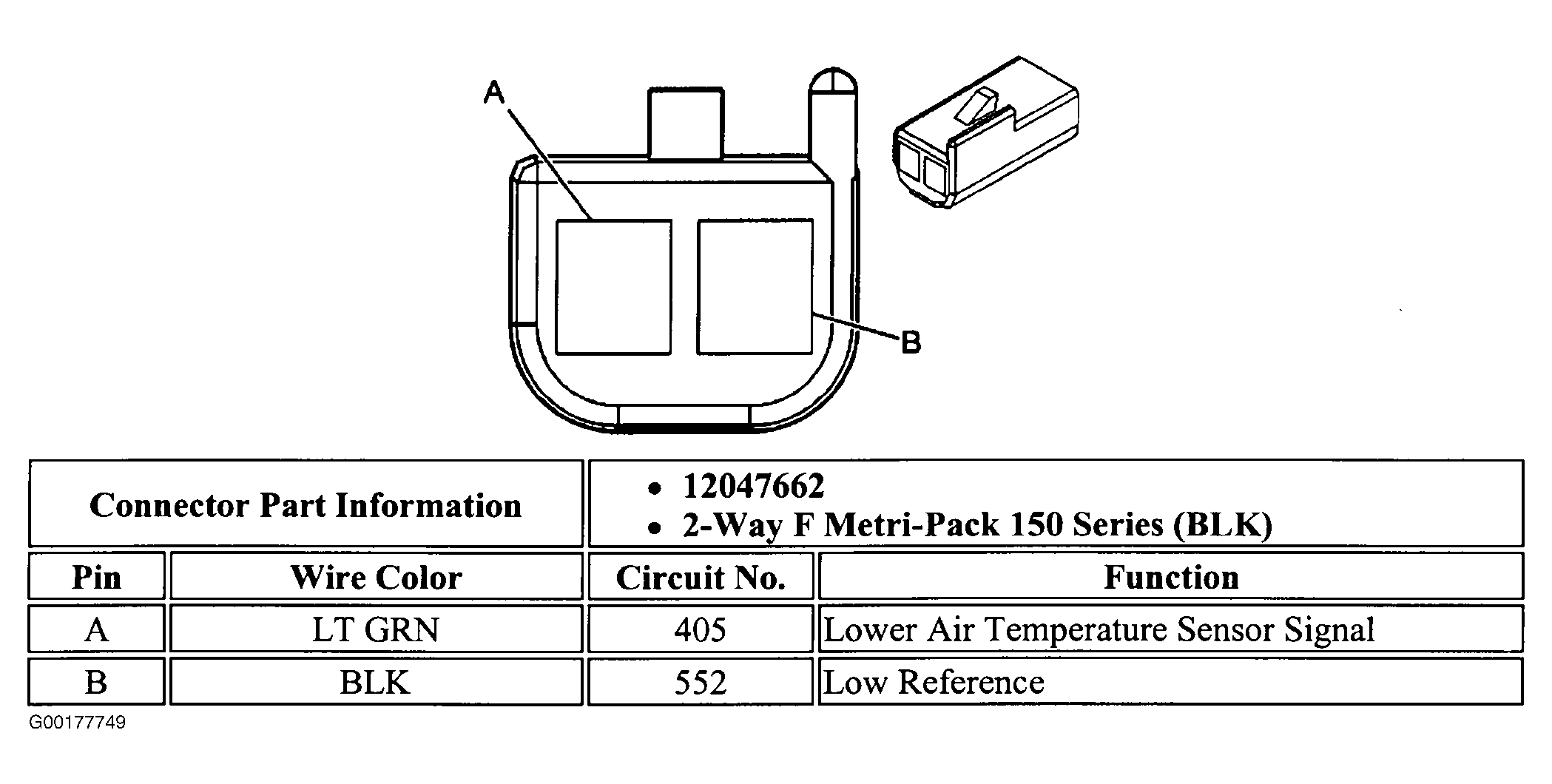

Fig 1: Identifying Lower Air Temperature Sensor Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
