Radio Connector End View C1
Radio Connector End View C1

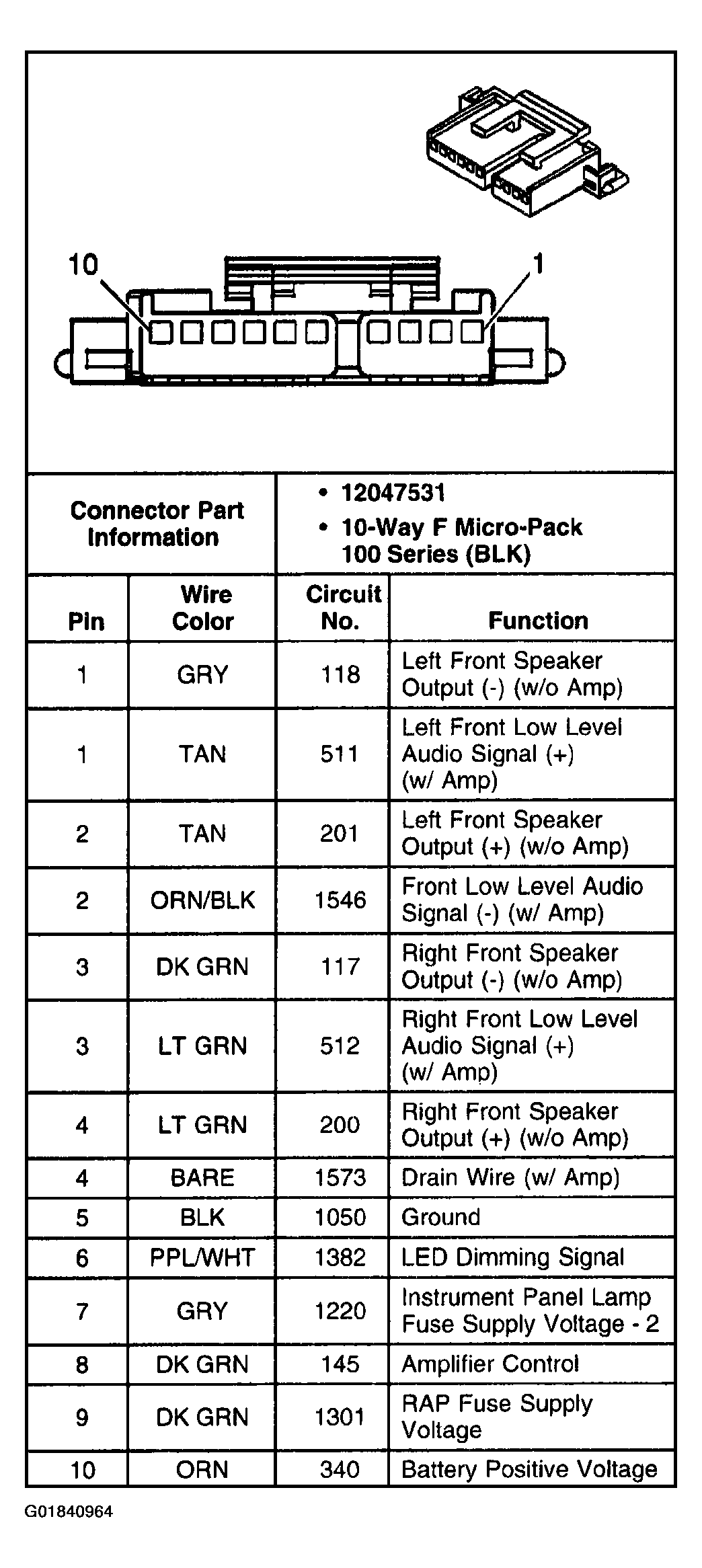

Fig 1: Radio Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
