Radio Connector End View C2
Radio Connector End View C2

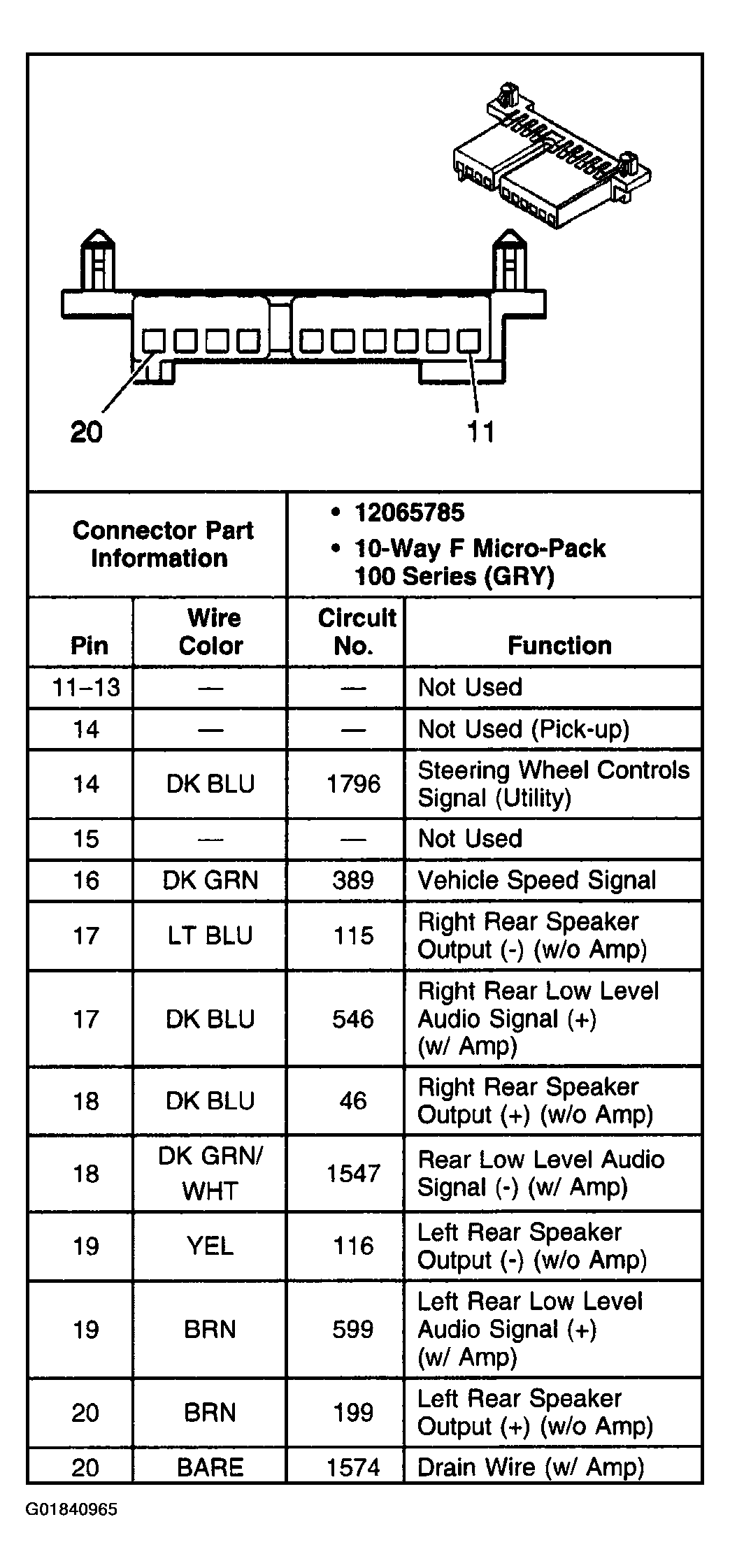

Fig 1: Radio Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
