Power Steering Pump Disassembled View (CB Series)

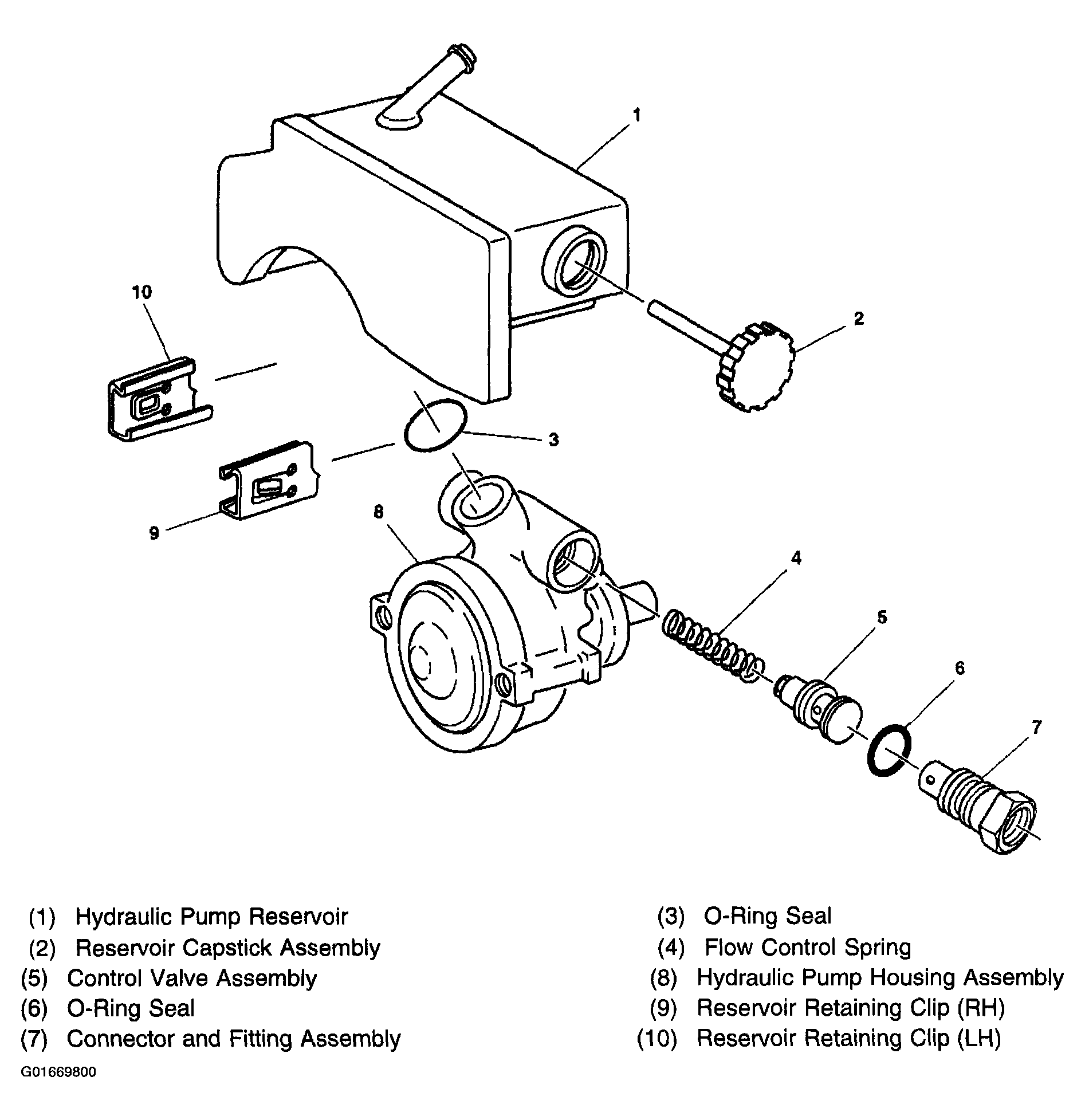

Fig 1: Power Steering Pump Reservoir Disassembled View (CB Series)
G01669800Courtesy of GENERAL MOTORS CORP.
