Installation Procedure

  1. Install the steering linkage shield.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the steering linkage shield bolts and the washers.

    Tighten

    Tighten the steering linkage shield bolts to 32 N.m (24 lb ft).

  3. Lower the vehicle.

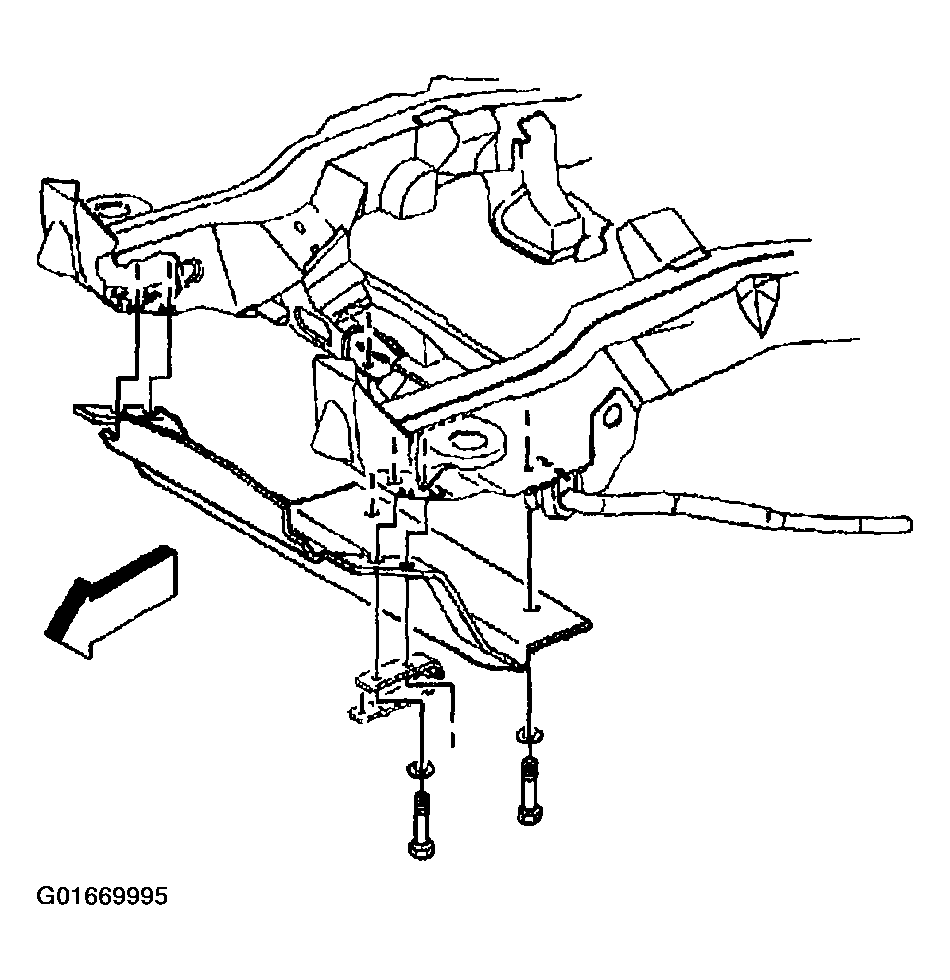

    Fig 1: Installing Steering Linkage Shield, Bolts & Washers
    G01669995Courtesy of GENERAL MOTORS CORP.
