Removal Procedure

Disconnect the negative battery cable(s).
Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .

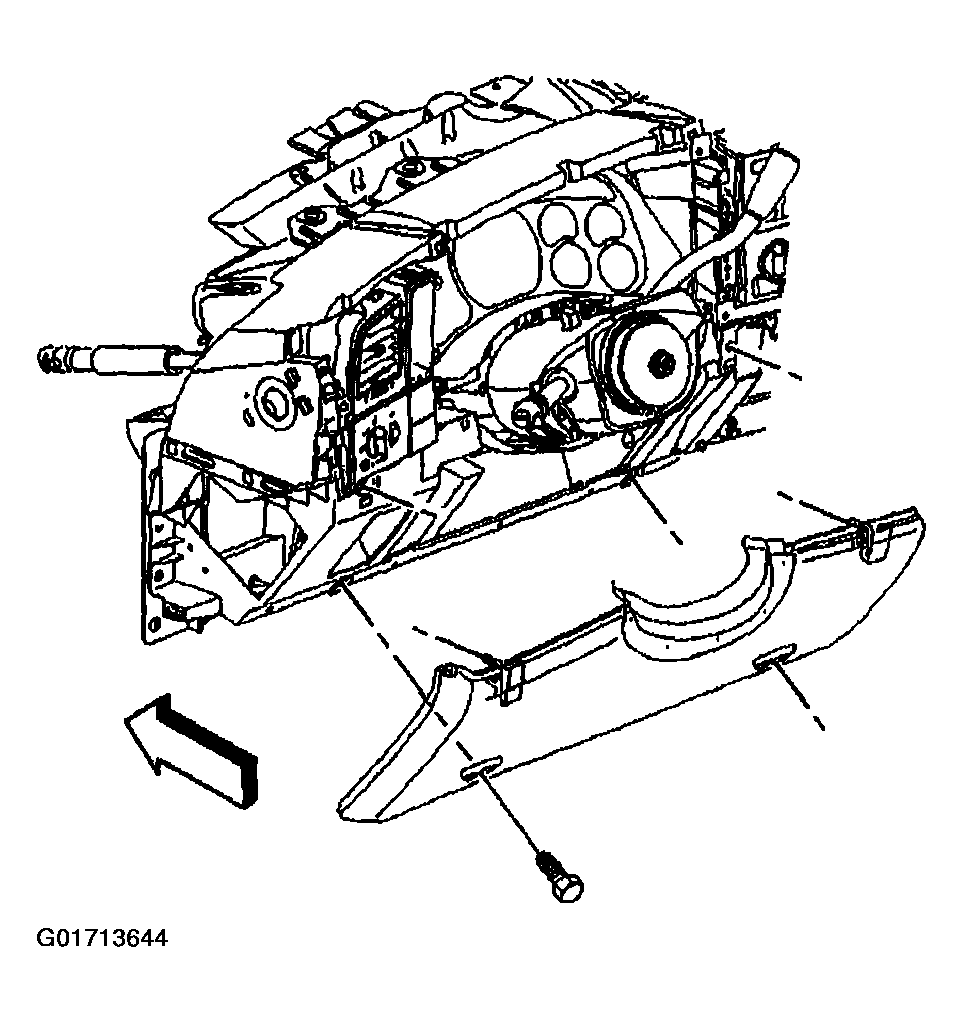

Fig 1: Knee Bolster
Courtesy of GENERAL MOTORS CORP.
Disconnect the brown connector.
Disconnect all other connectors (1).
Remove the BCM from the sliding bracket.

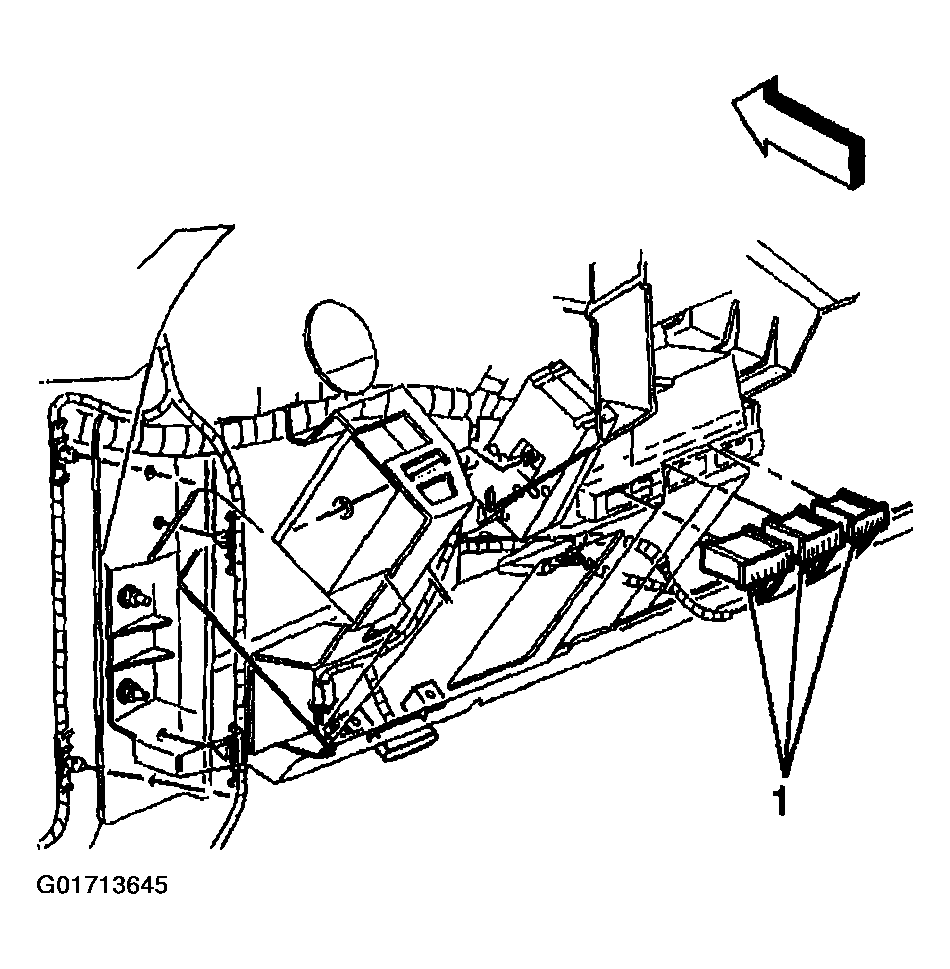

Fig 2: Removing BCM From Sliding Bracket
Courtesy of GENERAL MOTORS CORP.
