Brake Fluid Level Switch Connector End View
Brake Fluid Level Switch Connector End View

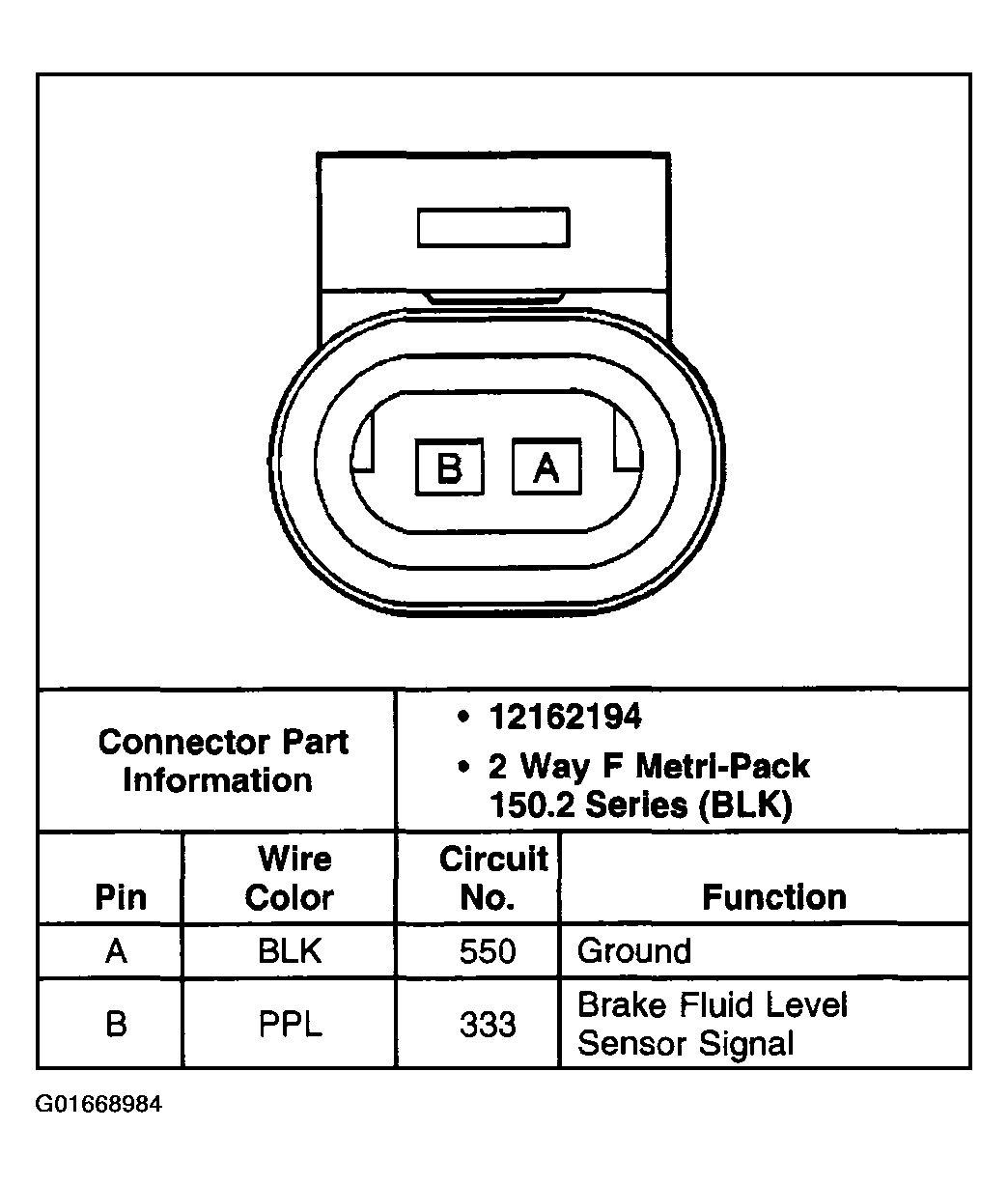

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
