A/C High Pressure Recirculation Switch Connector End View
A/C High Pressure Recirculation Switch Connector End View

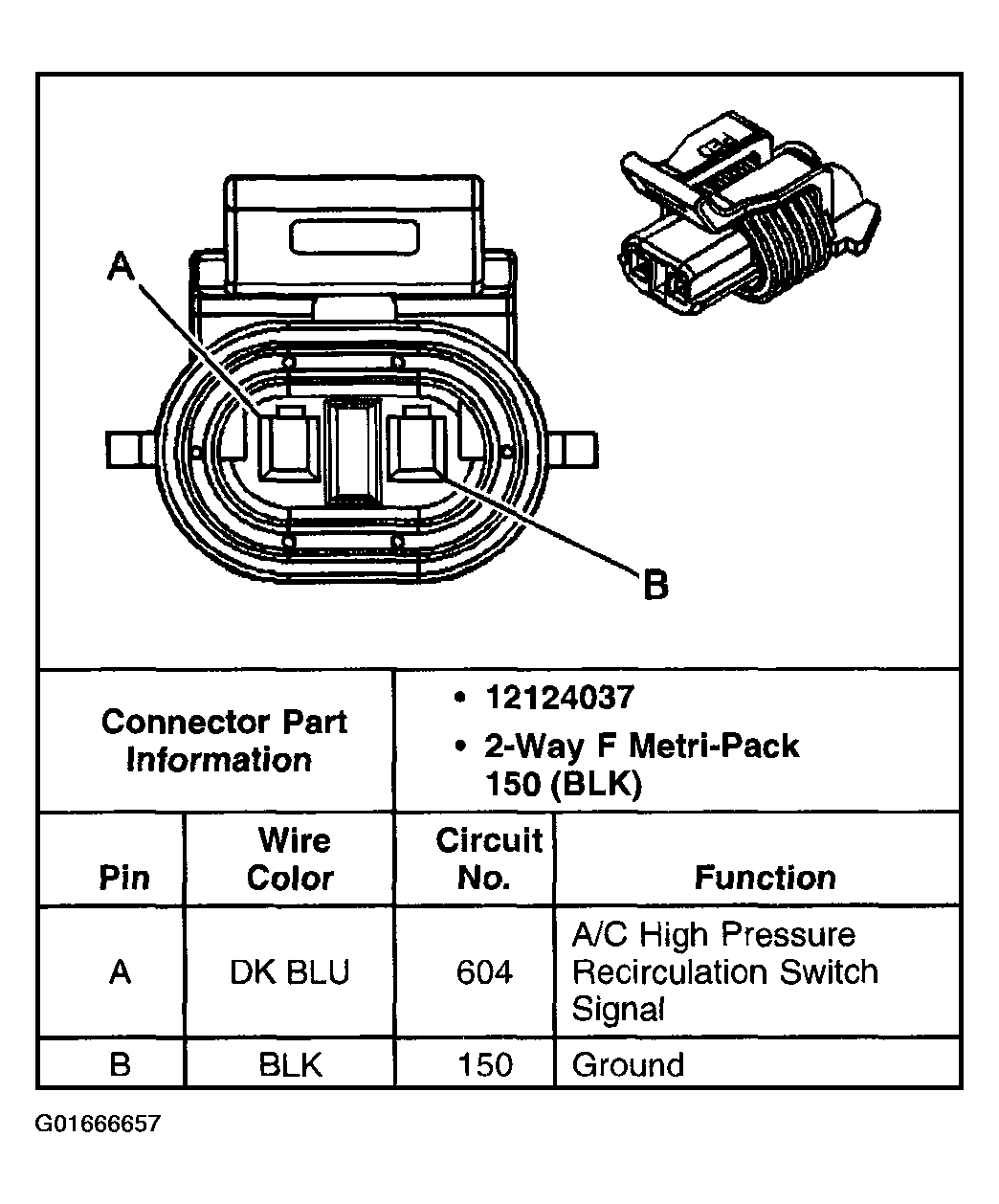

Fig 1: A/C High Pressure Recirculation Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

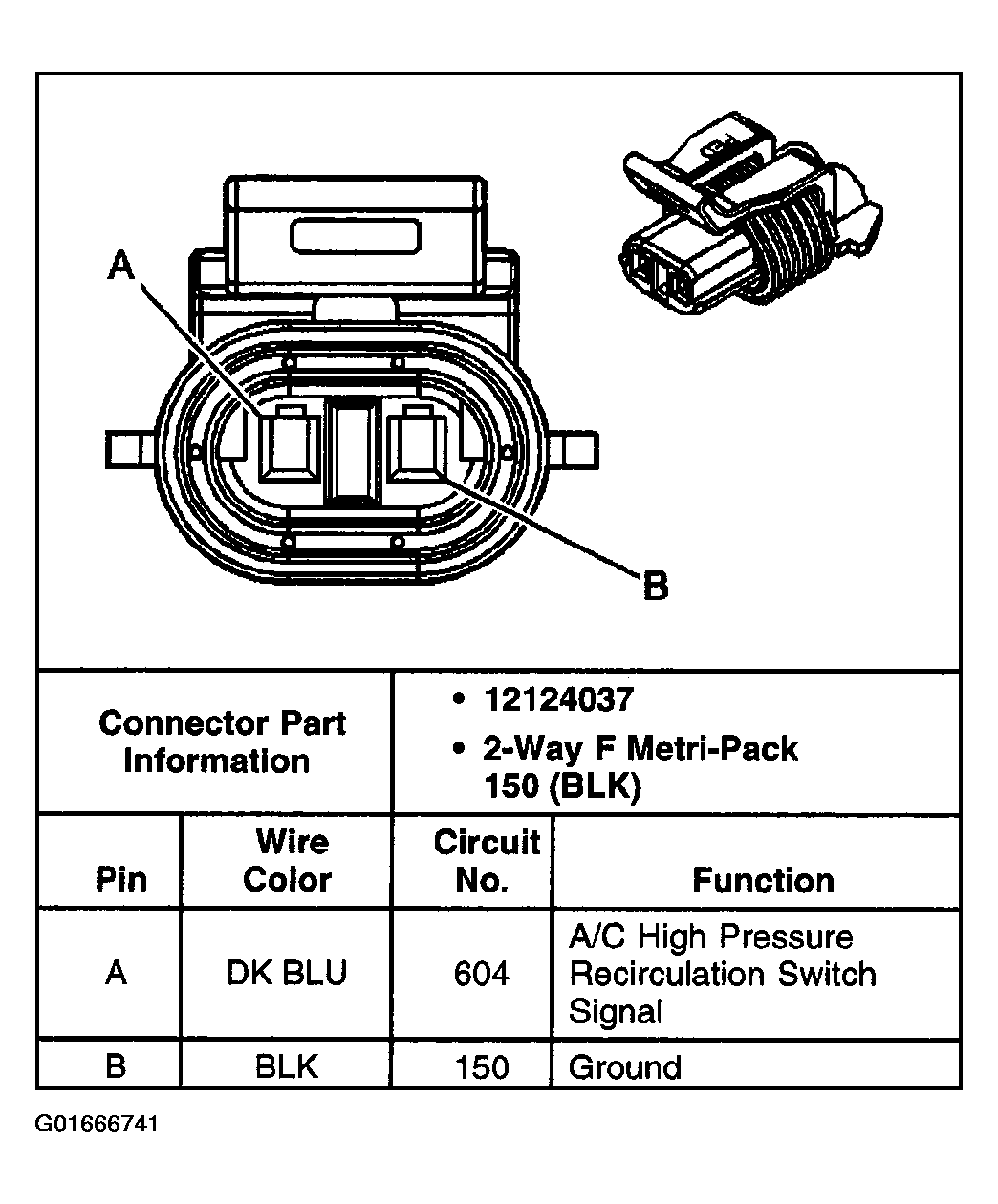

Fig 1: A/C High Pressure Recirculation Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
