Coolant Level Switch Connector End View
Coolant Level Switch Connector End View

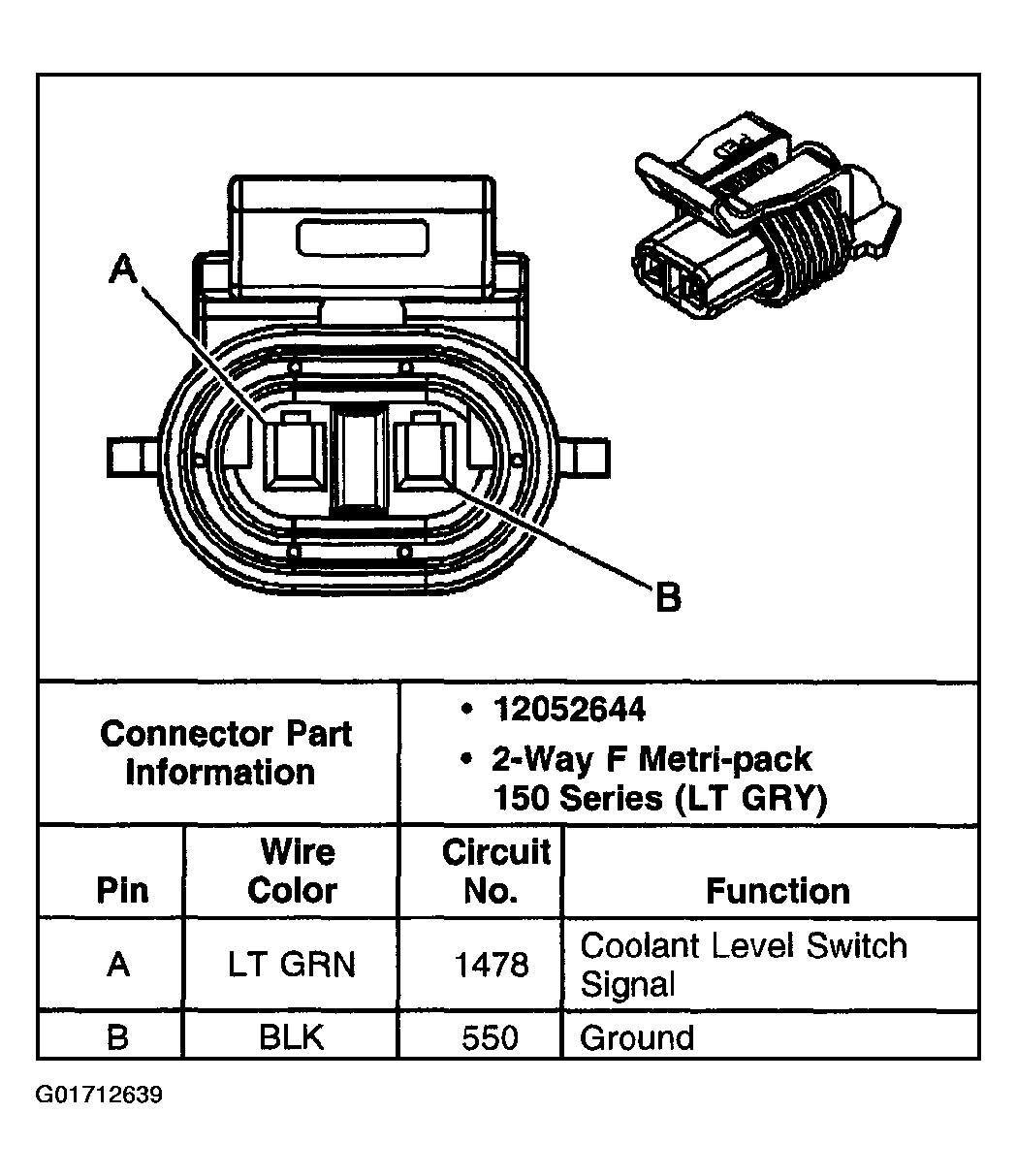

Fig 1: Coolant Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: Coolant Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
