Fuel Tank Temperature Sensor Connector End View
Fuel Tank Temperature Sensor Connector End View

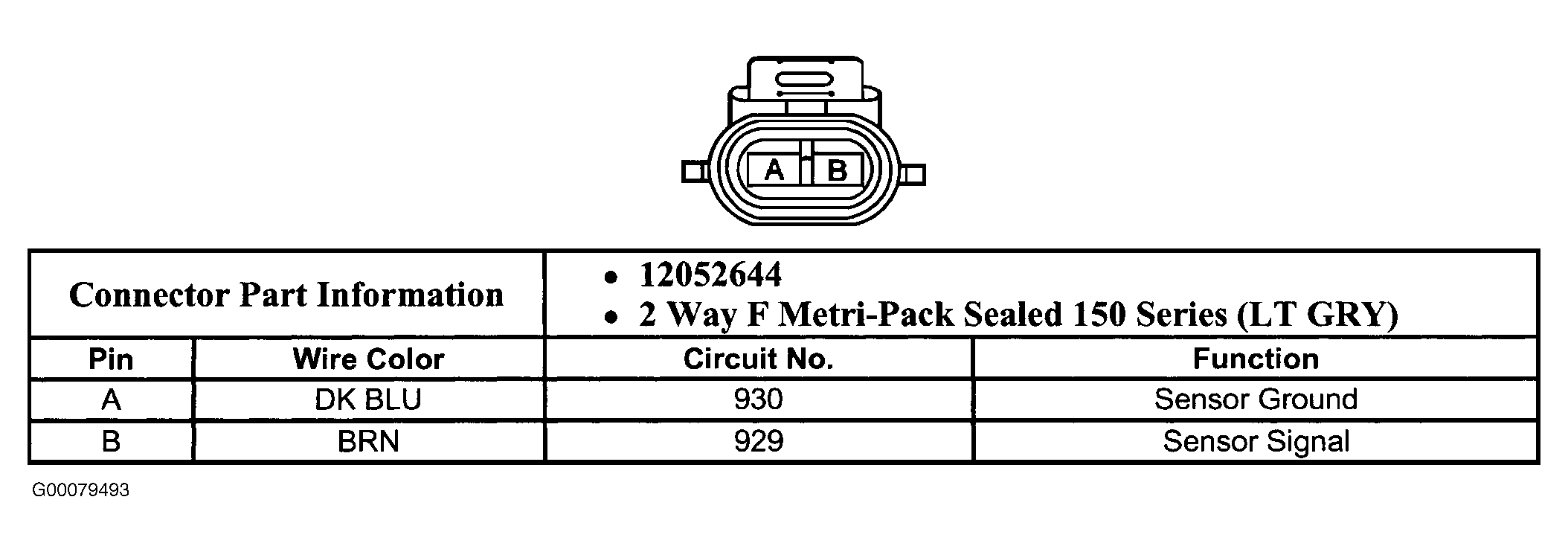

Fig 1: Fuel Tank Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
