Recirculation Actuator Connector End View

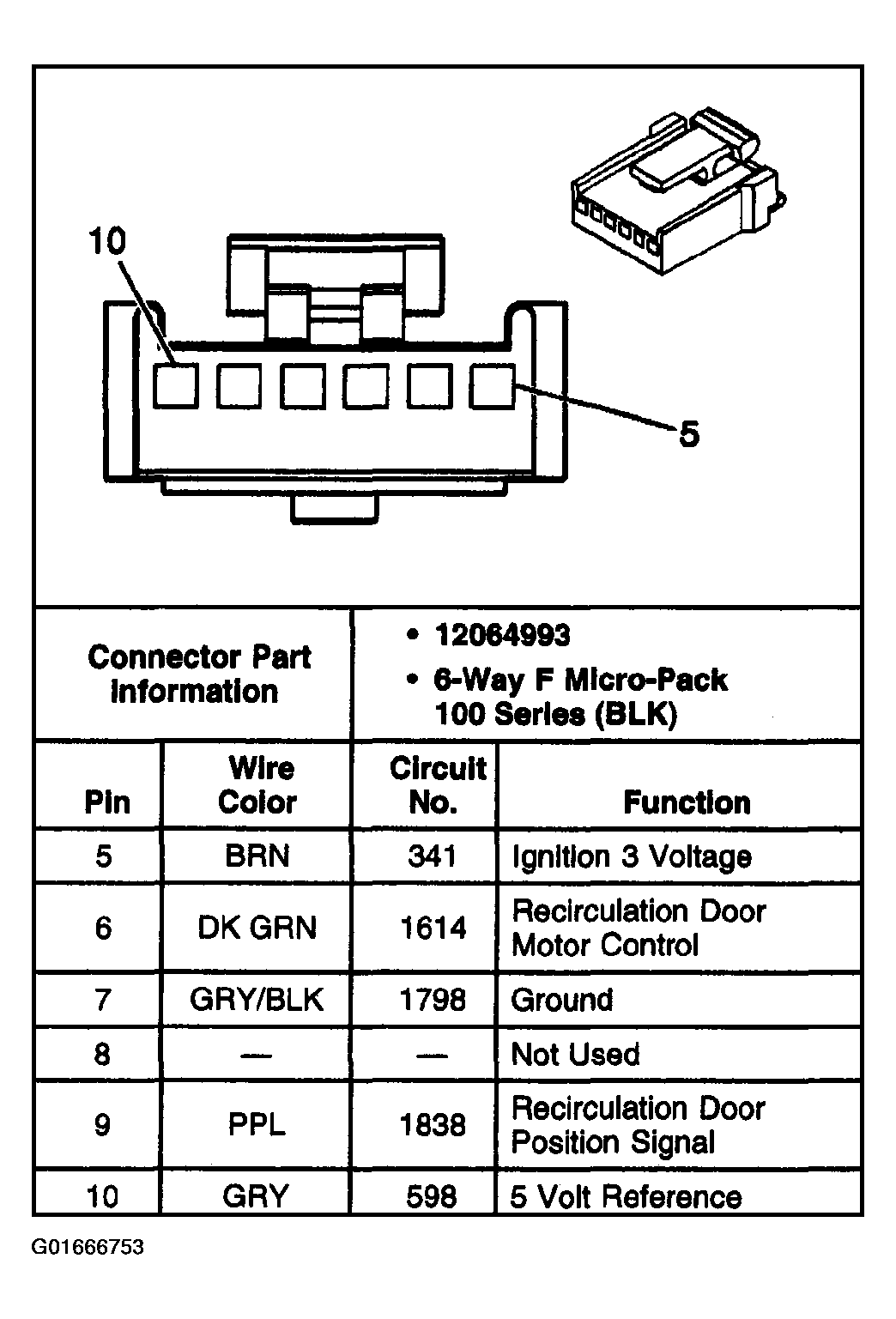

Fig 1: Recirculation Actuator Connector End View
G01666753Courtesy of GENERAL MOTORS CORP.

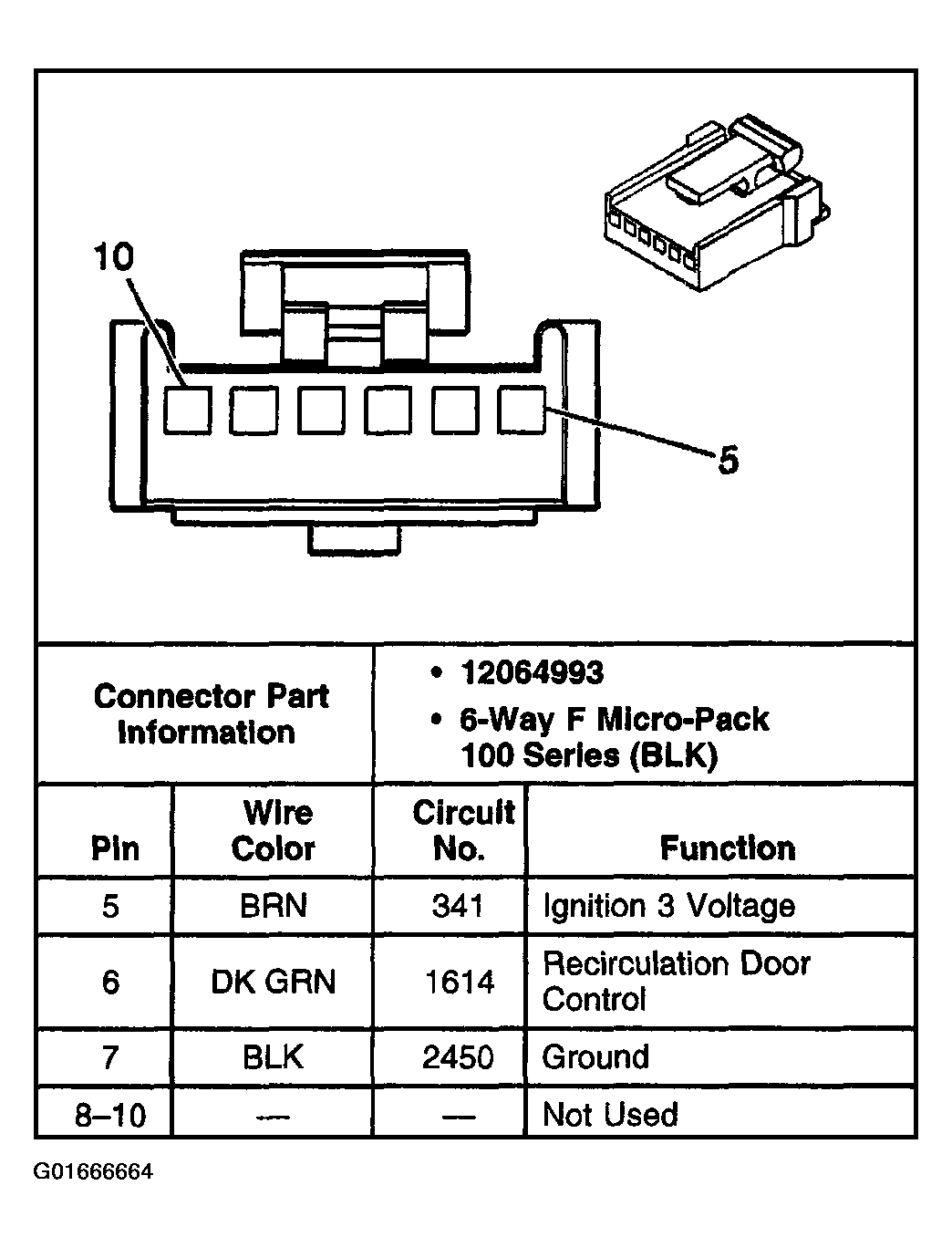

Fig 1: Recirculation Actuator Connector End View
G01666664Courtesy of GENERAL MOTORS CORP.
