Transfer Case Shift Control Module - C1 Connector End View (1 Of 2)

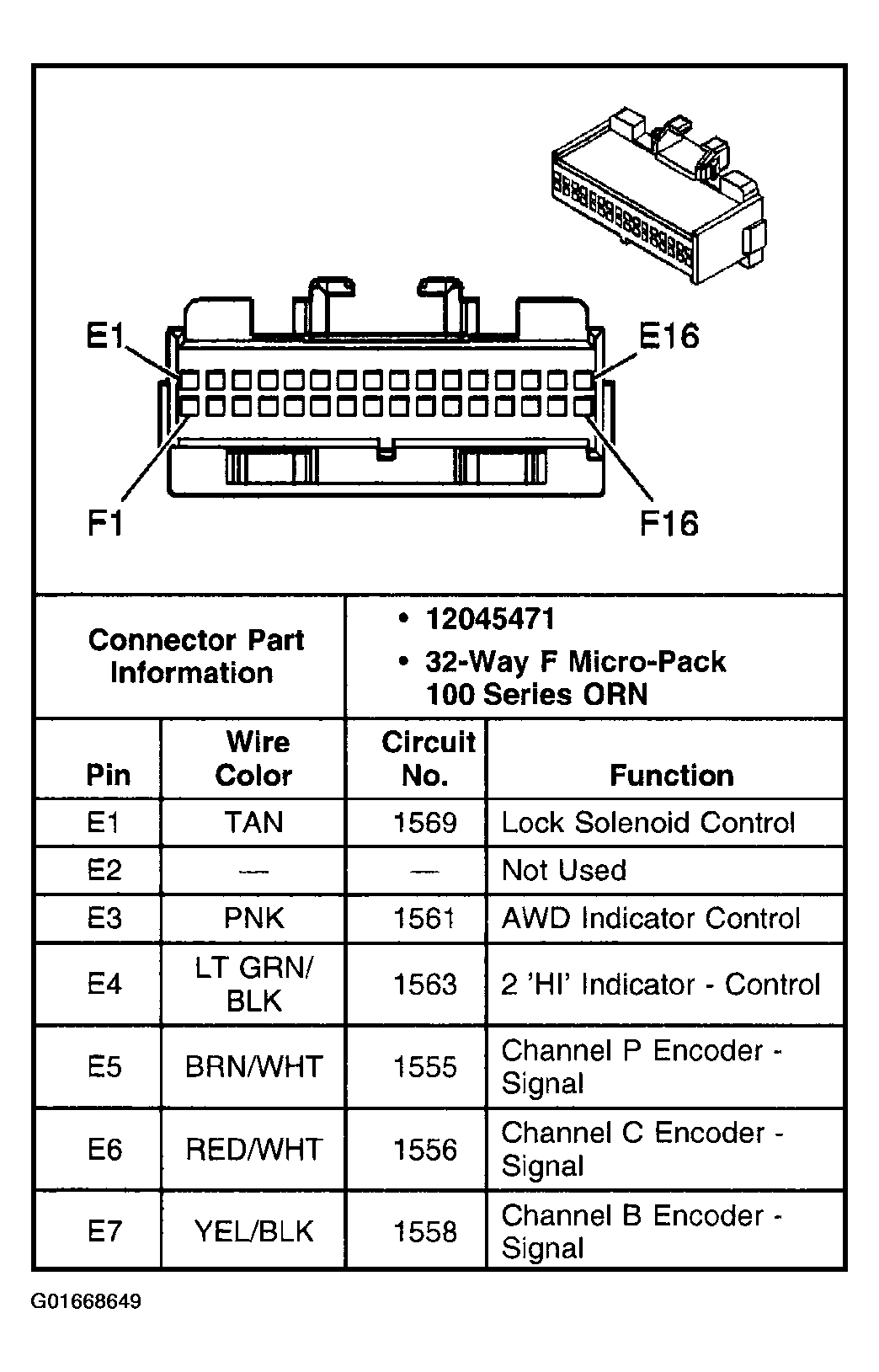

Fig 1: Transfer Case Shift Control Module - C1 Connector End View (1 Of 2)
G01668649Courtesy of GENERAL MOTORS CORP.

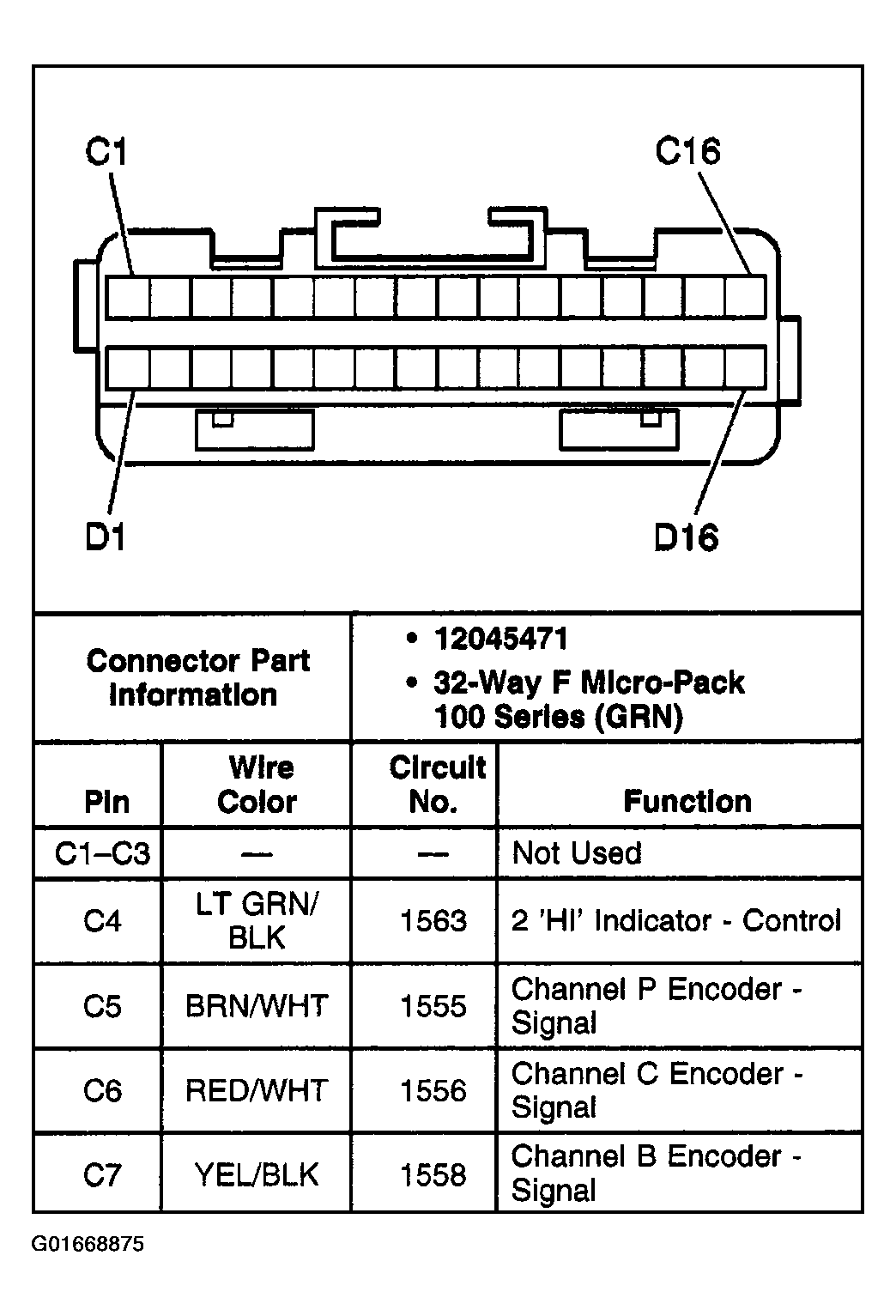

Fig 1: Transfer Case Shift Control Module - C1 Connector End View (1 Of 2)
G01668875Courtesy of GENERAL MOTORS CORP.
