Seat Belt Connector End Views
Seat Belt Connector End Views

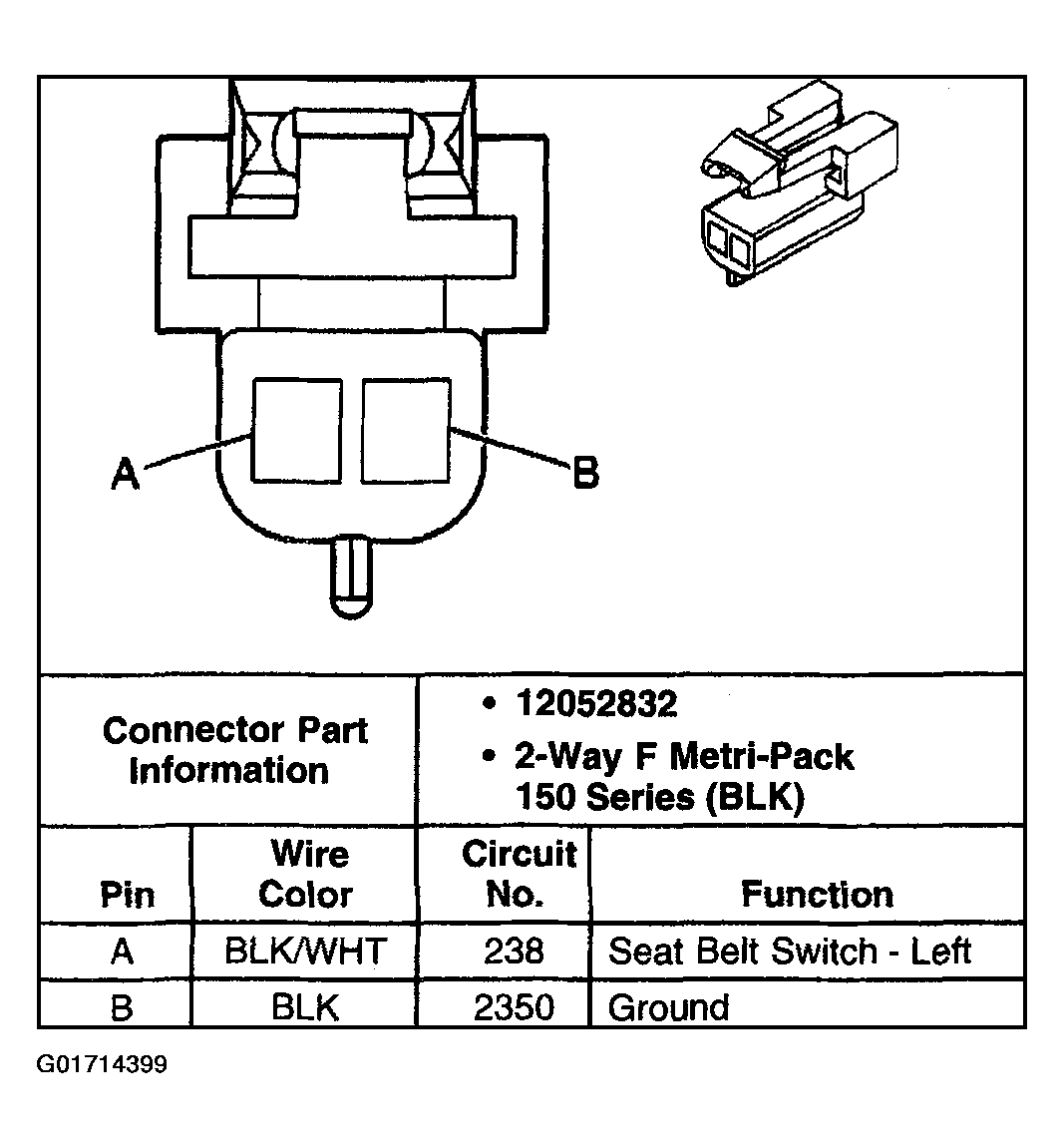

Fig 1: Identifying Left Seat Belt Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
