Fuel Injection Control Module Connector End View C1
Fuel Injection Control Module Connector End View C1

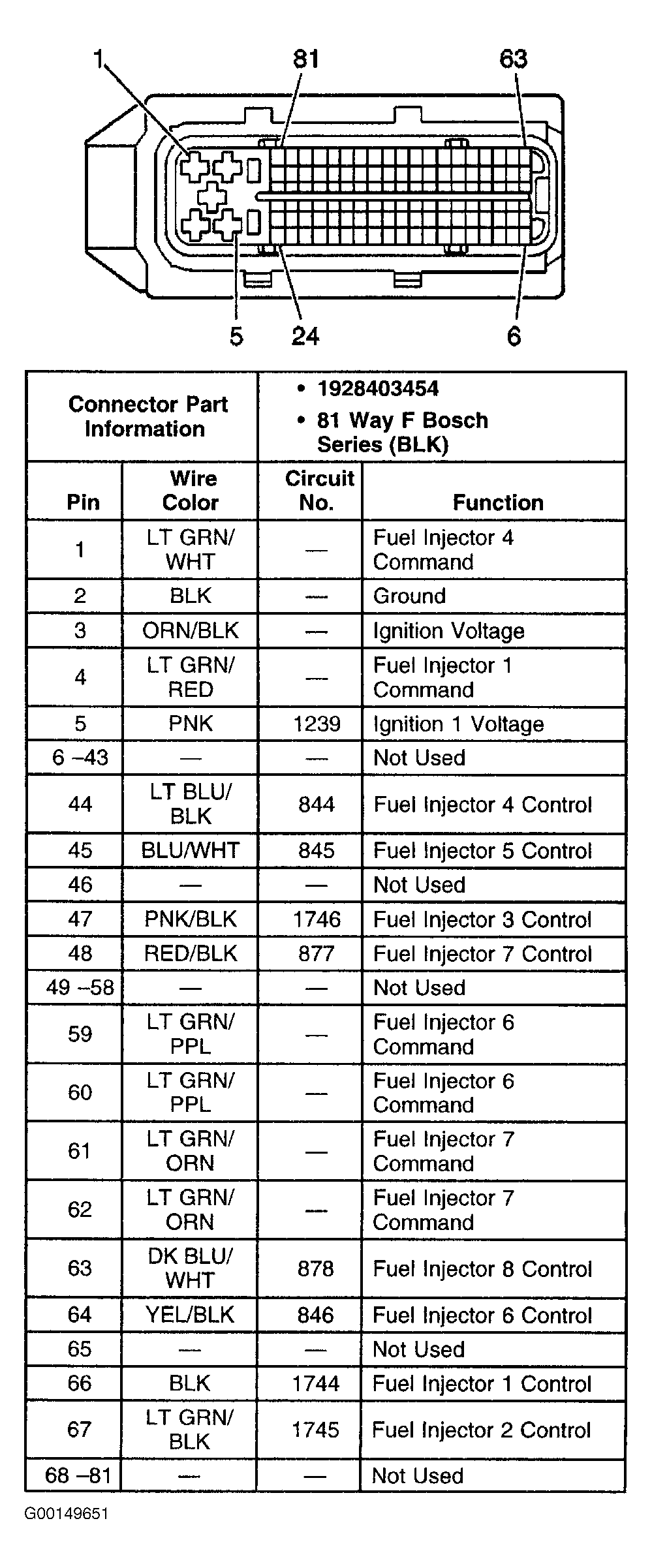

Fig 1: Fuel Injection Control Module Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
