Fuel Injection Control Module Connector End View C2
Fuel Injection Control Module Connector End View C2

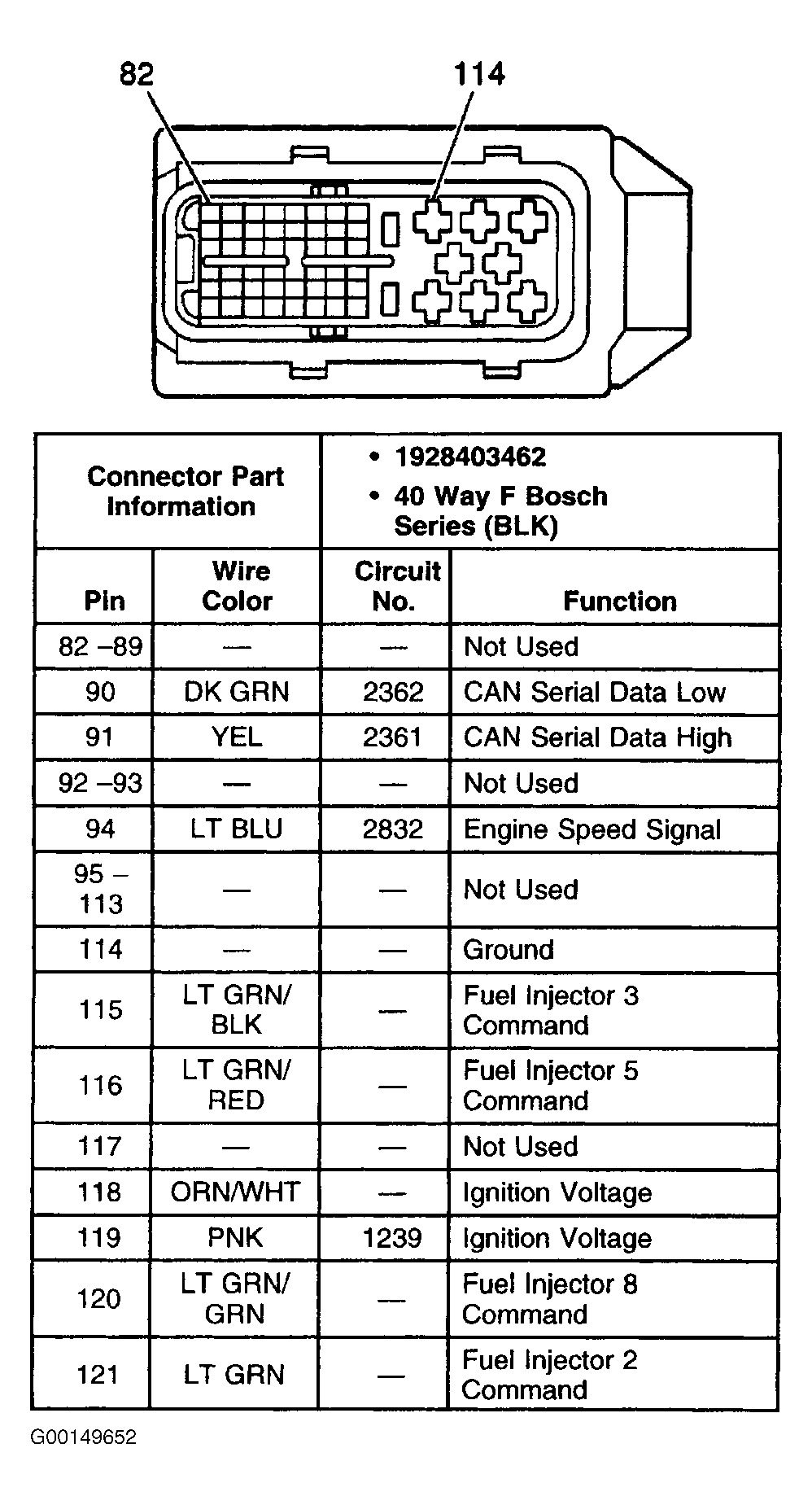

Fig 1: Fuel Injection Control Module Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
