Wheel Alignment Specifications

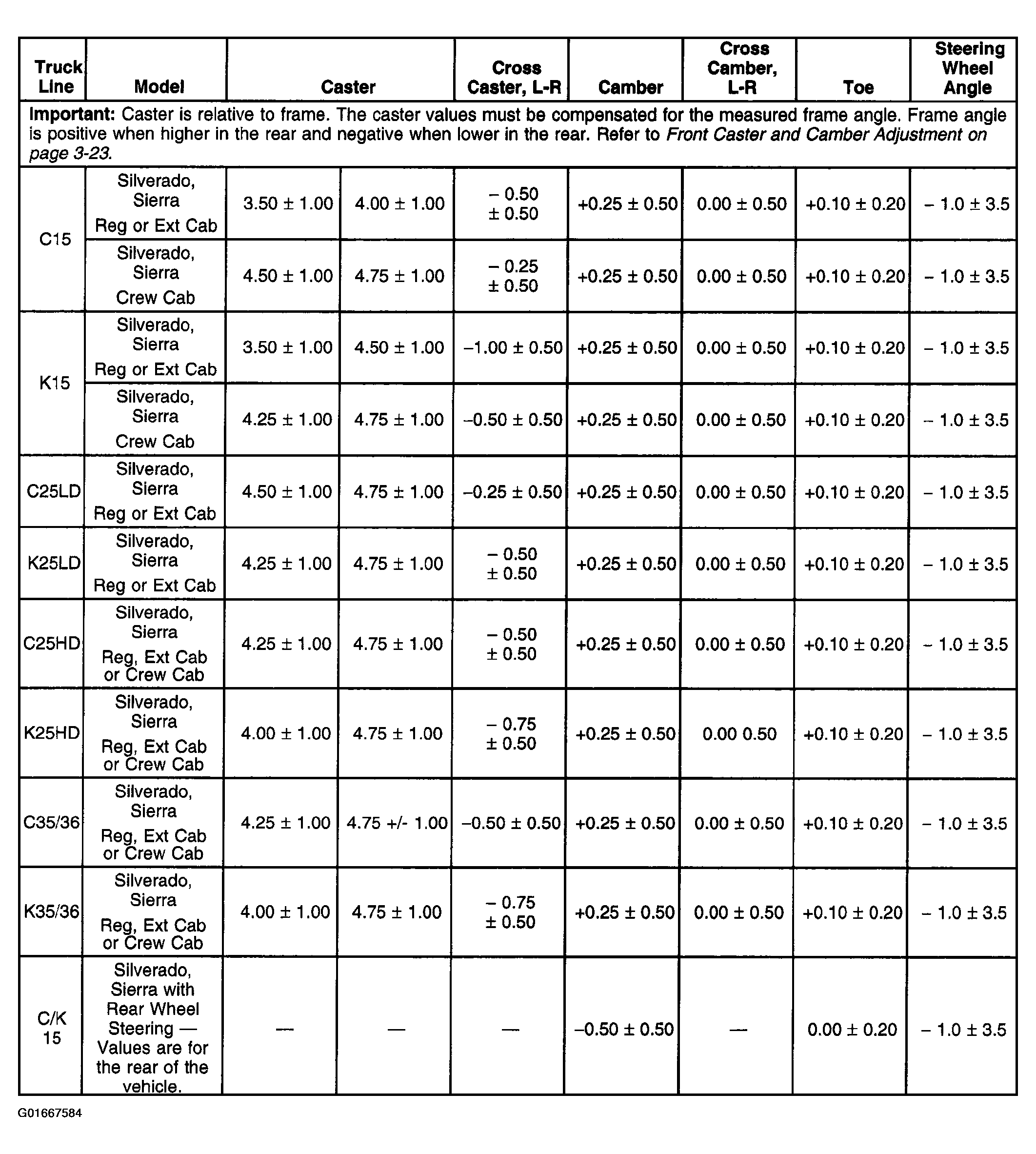

Fig 1: Wheel Alignment Specifications
G01667584Courtesy of GENERAL MOTORS CORP.
