STOPLAMP Switch: Installation

Install the stoplamp switch (2). Install the pushrod retaining clip (4). See Fig 1 . Connect electrical connection to the stoplamp switch (2). The stoplamp switch is self adjusting.

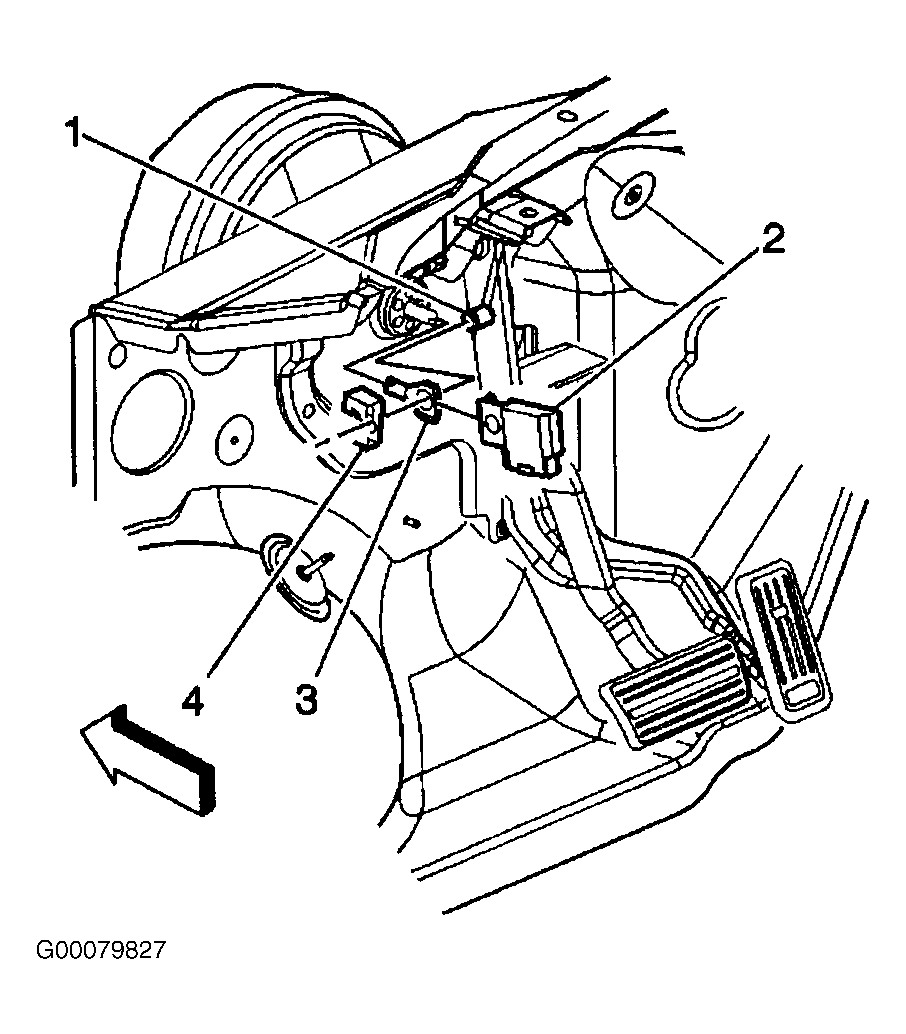

Fig 1: Removing & Installing Stoplamp Switch

Courtesy of GENERAL MOTORS CORP.
