Liftgate Module (LGM) Connector End View - C1

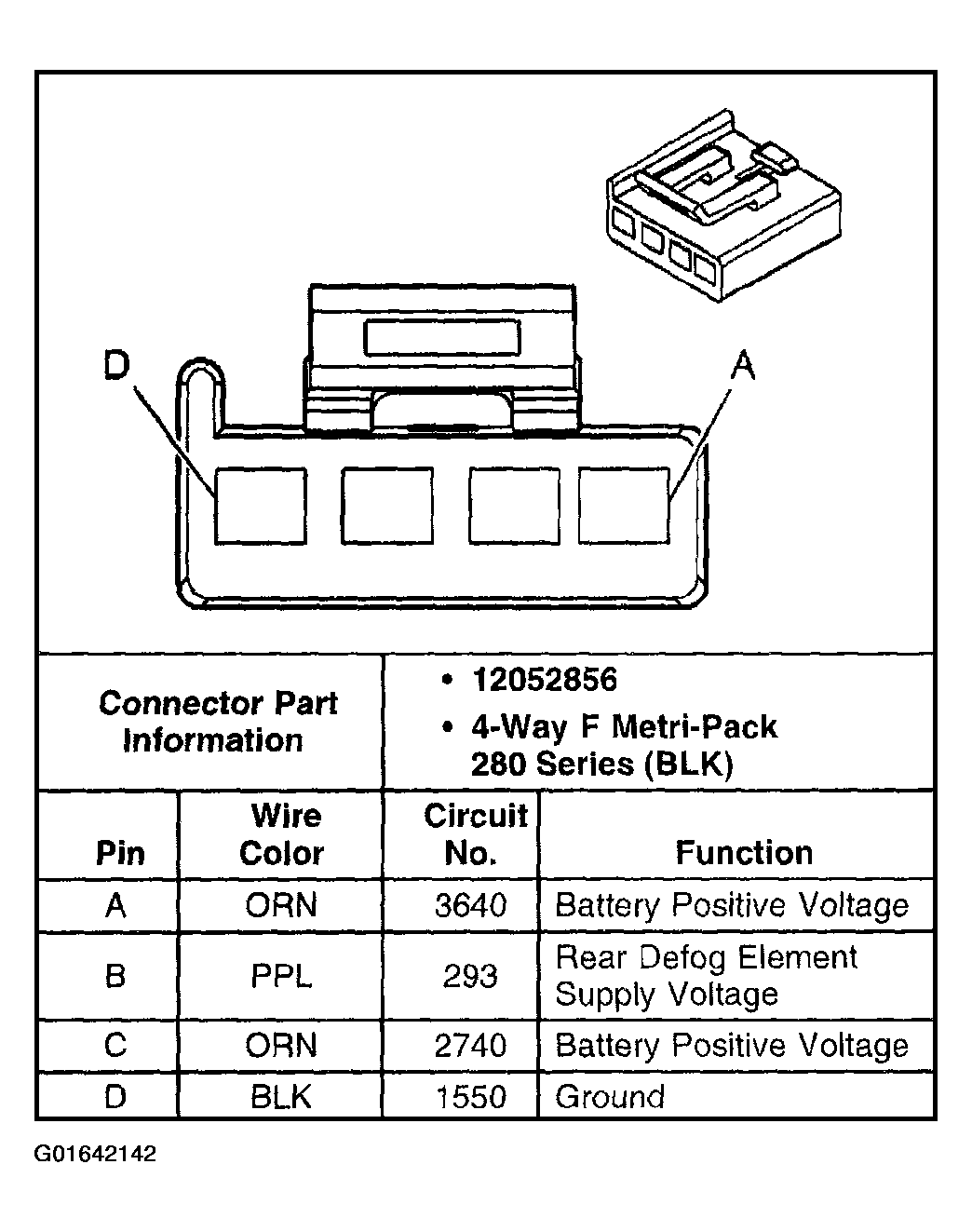

Fig 1: Liftgate Module (LGM) Connector End View - C1
G01642142Courtesy of GENERAL MOTORS CORP.
