Blower Motor Relay Connector End View

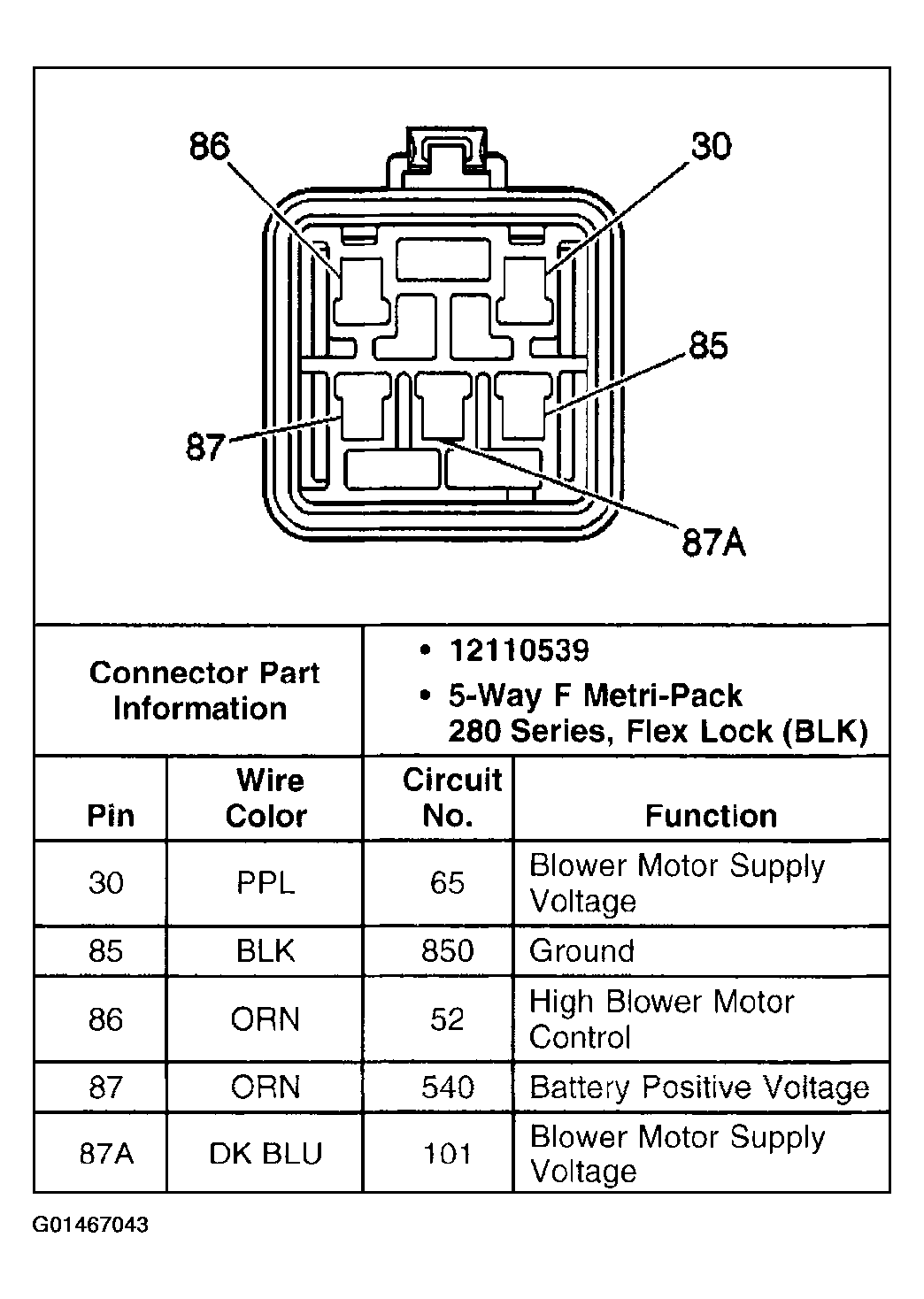

Fig 1: Blower Motor Relay Connector End View
G01467043Courtesy of GENERAL MOTORS CORP.
