Transfer Case Encoder Motor C2 Connector End View

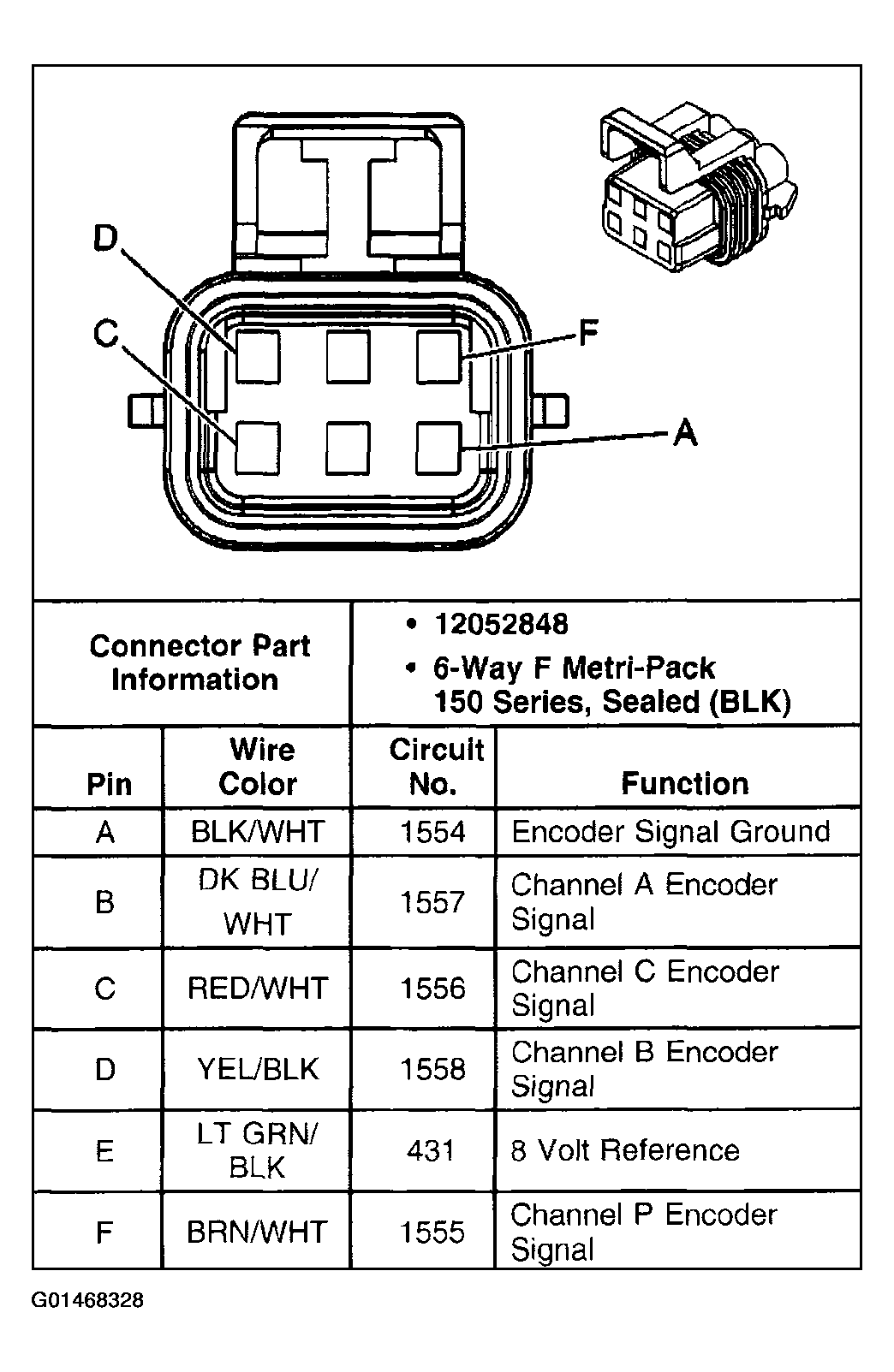

Fig 1: Transfer Case Encoder Motor C2 Connector End View
G01468328Courtesy of GENERAL MOTORS CORP.
