ABS Connector End Views

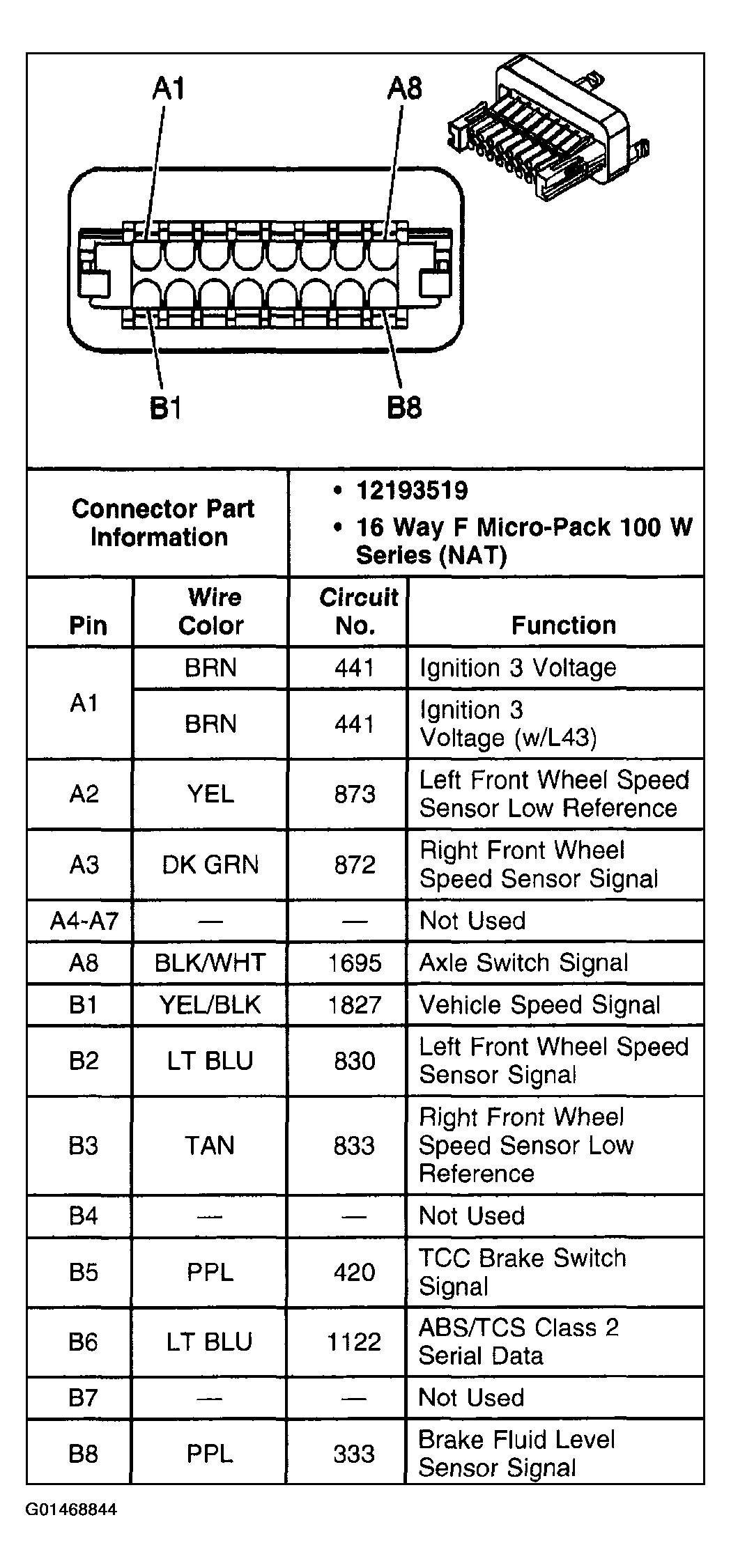

Fig 1: Electronic Brake Control Module (EBCM) Connector C1 Terminal Identification
G01468844Courtesy of GENERAL MOTORS CORP.
Fig 2: Electronic Brake Control Module (EBCM) Connector C2 Terminal Identification
G01468845Courtesy of GENERAL MOTORS CORP.

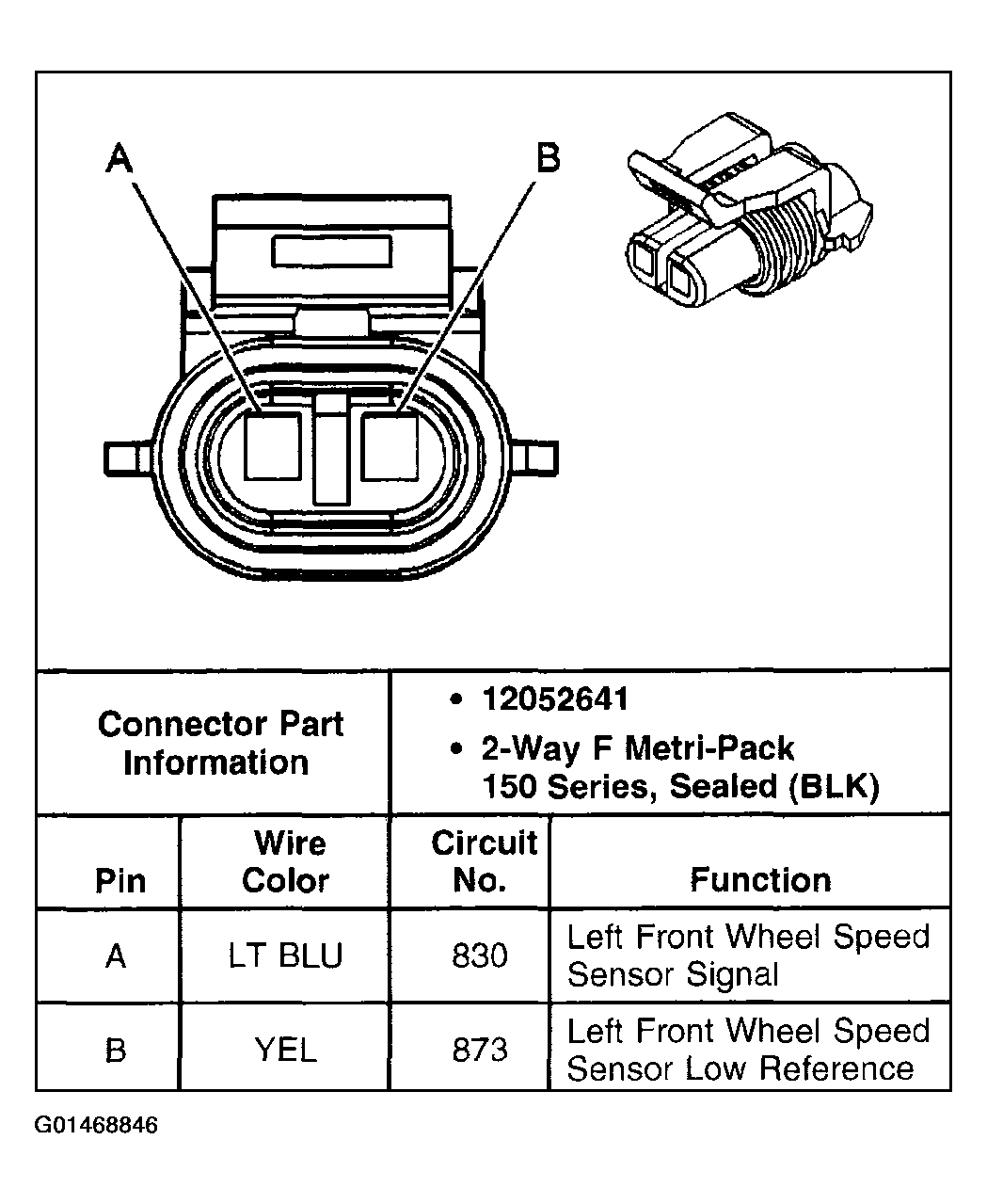

Fig 3: Wheel Speed Sensor (WSS) - LF Connector Terminal Identification
G01468846Courtesy of GENERAL MOTORS CORP.

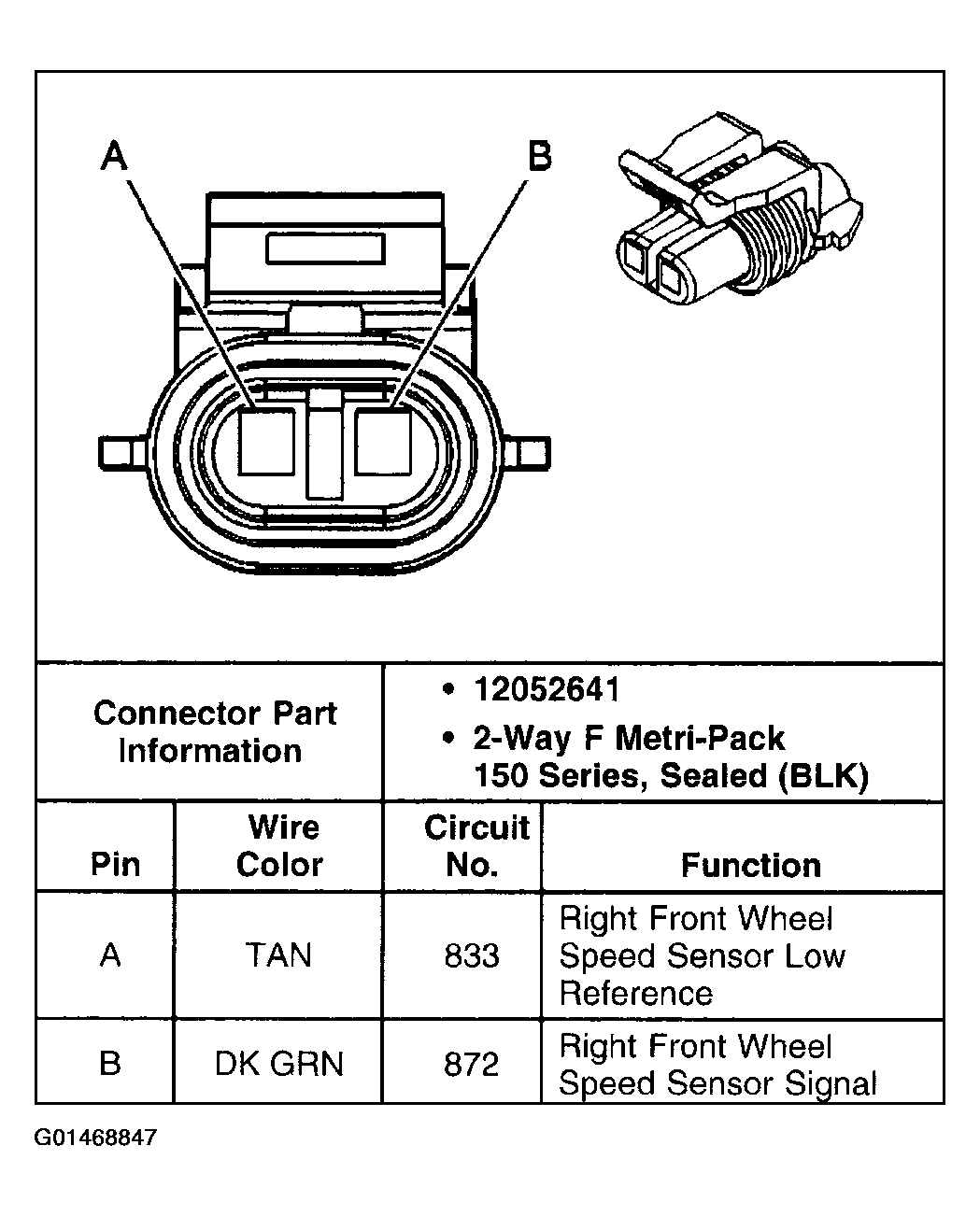

Fig 4: Wheel Speed Sensor (WSS) - RF Connector Terminal Identification
G01468847Courtesy of GENERAL MOTORS CORP.
