Removal Procedure
CAUTION:
Refer to BATTERIES PRODUCE EXPLOSIVE GASES CAUTION
in Cautions and Notices.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
- Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
- Disconnect the positive battery cable.

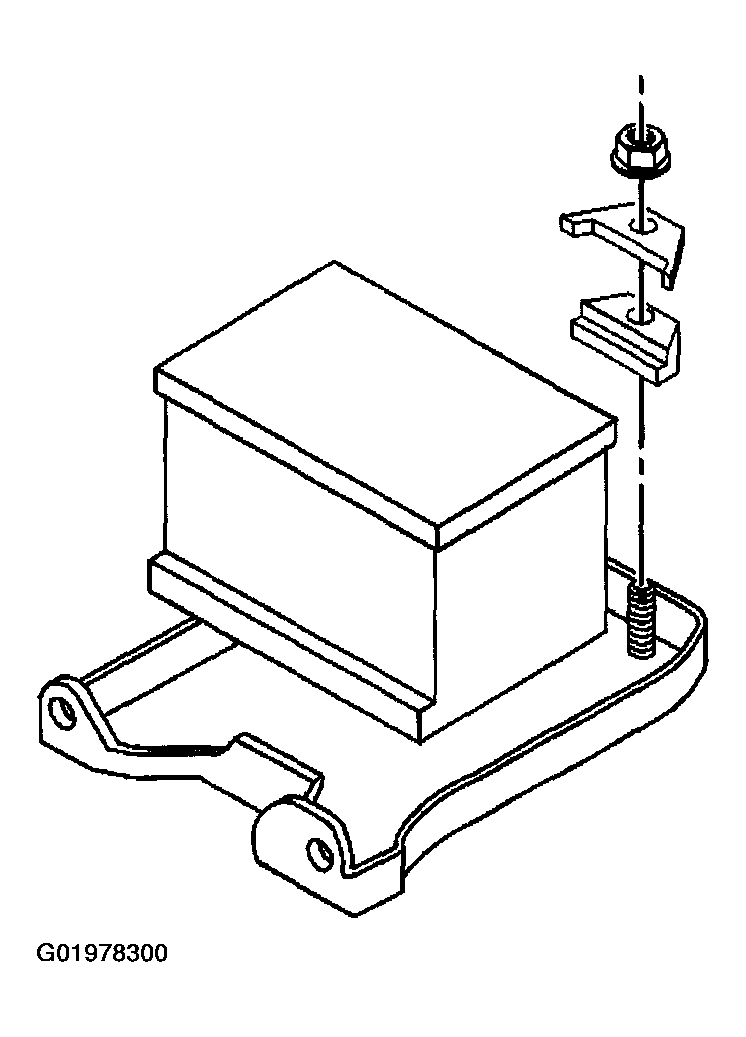

- Remove the battery hold down retainer nut.
- Remove the battery hold down retainer.
- Remove the battery.
