Theft Deterrent System Connector End Views

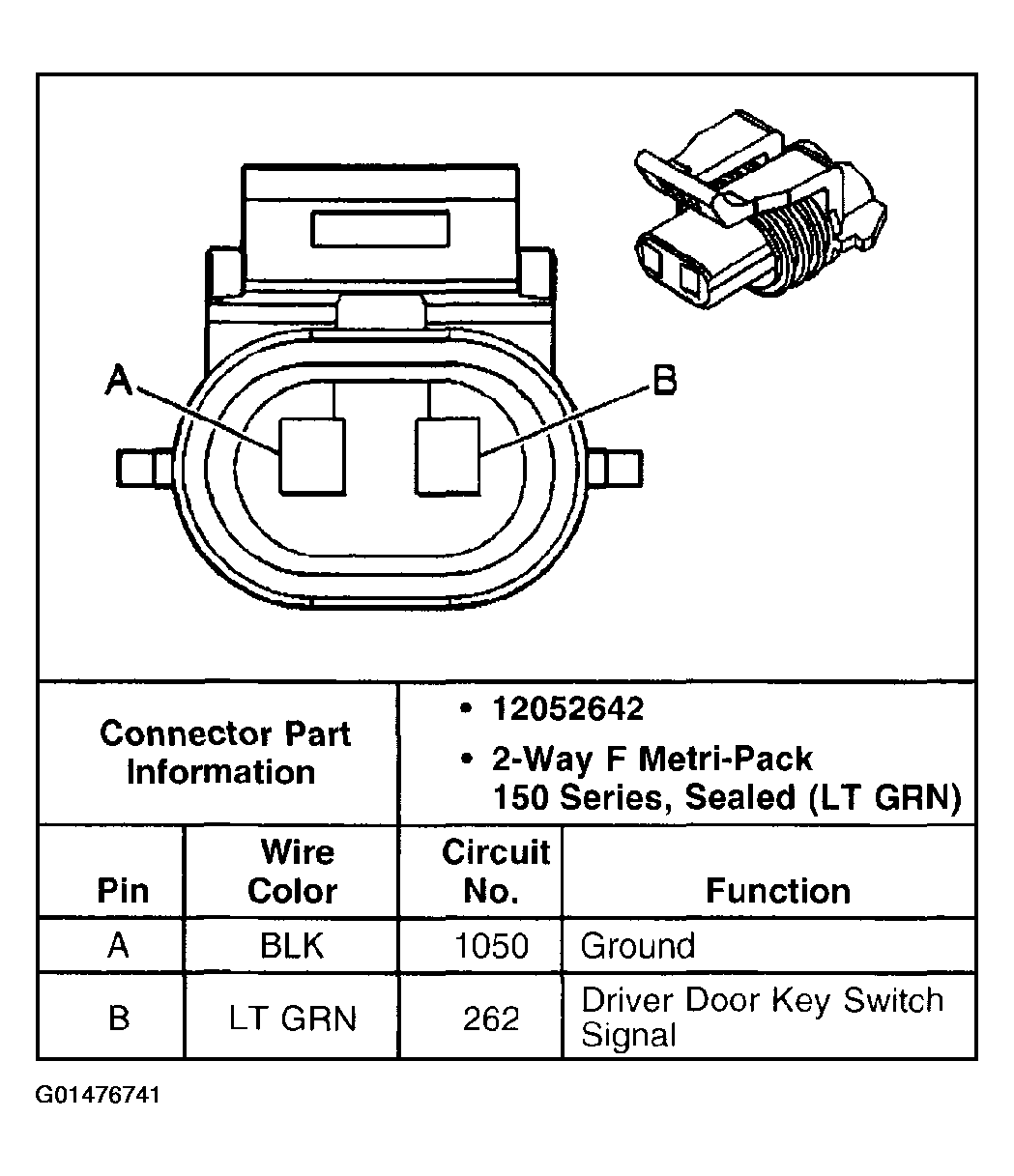

Fig 1: Door Lock Cylinder Switch - Driver (Utility, Crew Cab W/ RKE)

Courtesy of GENERAL MOTORS CORP.

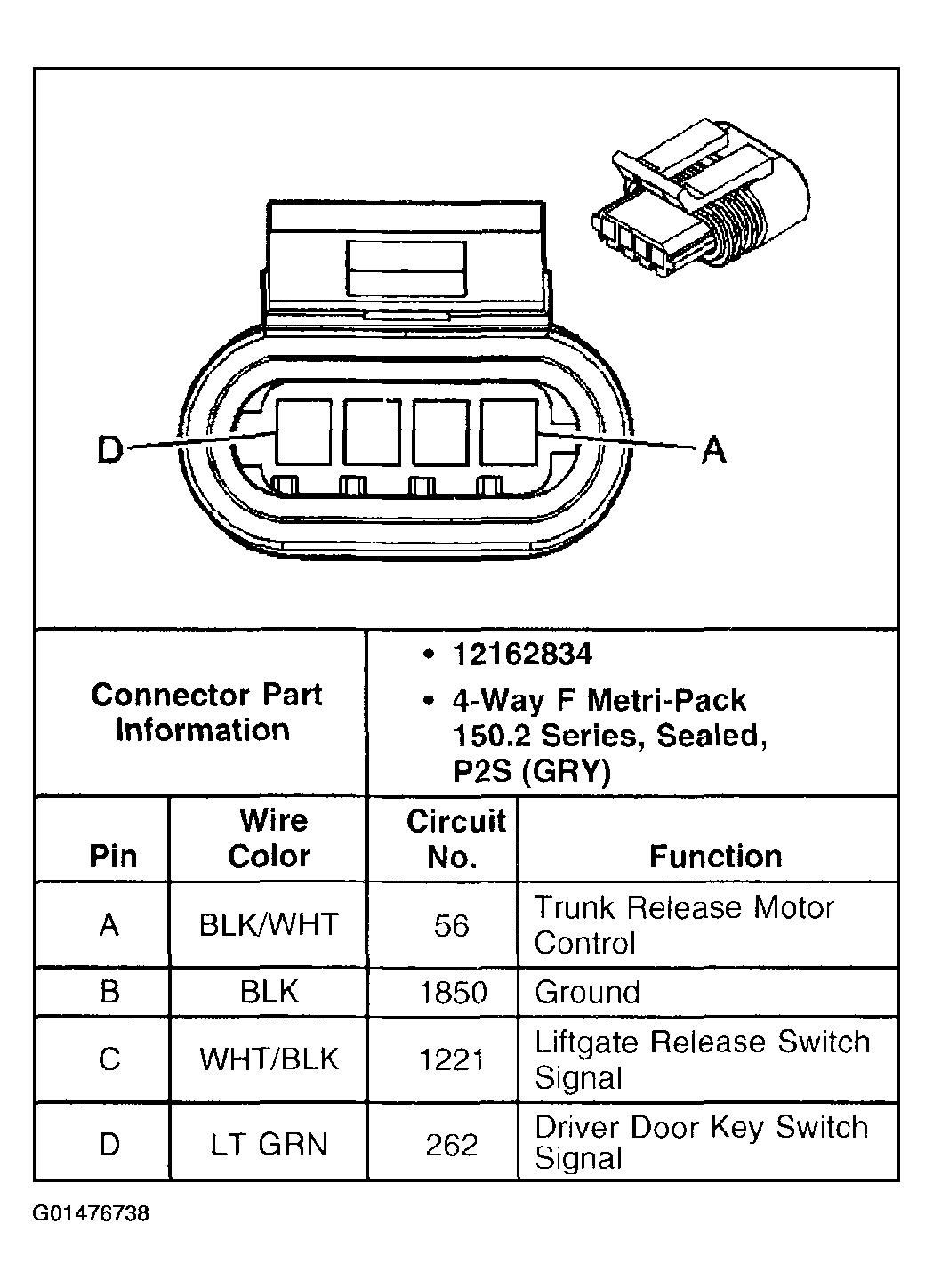

Fig 2: Door Lock Cylinder Switch - Driver (Pickup W/ RKE)

Courtesy of GENERAL MOTORS CORP.

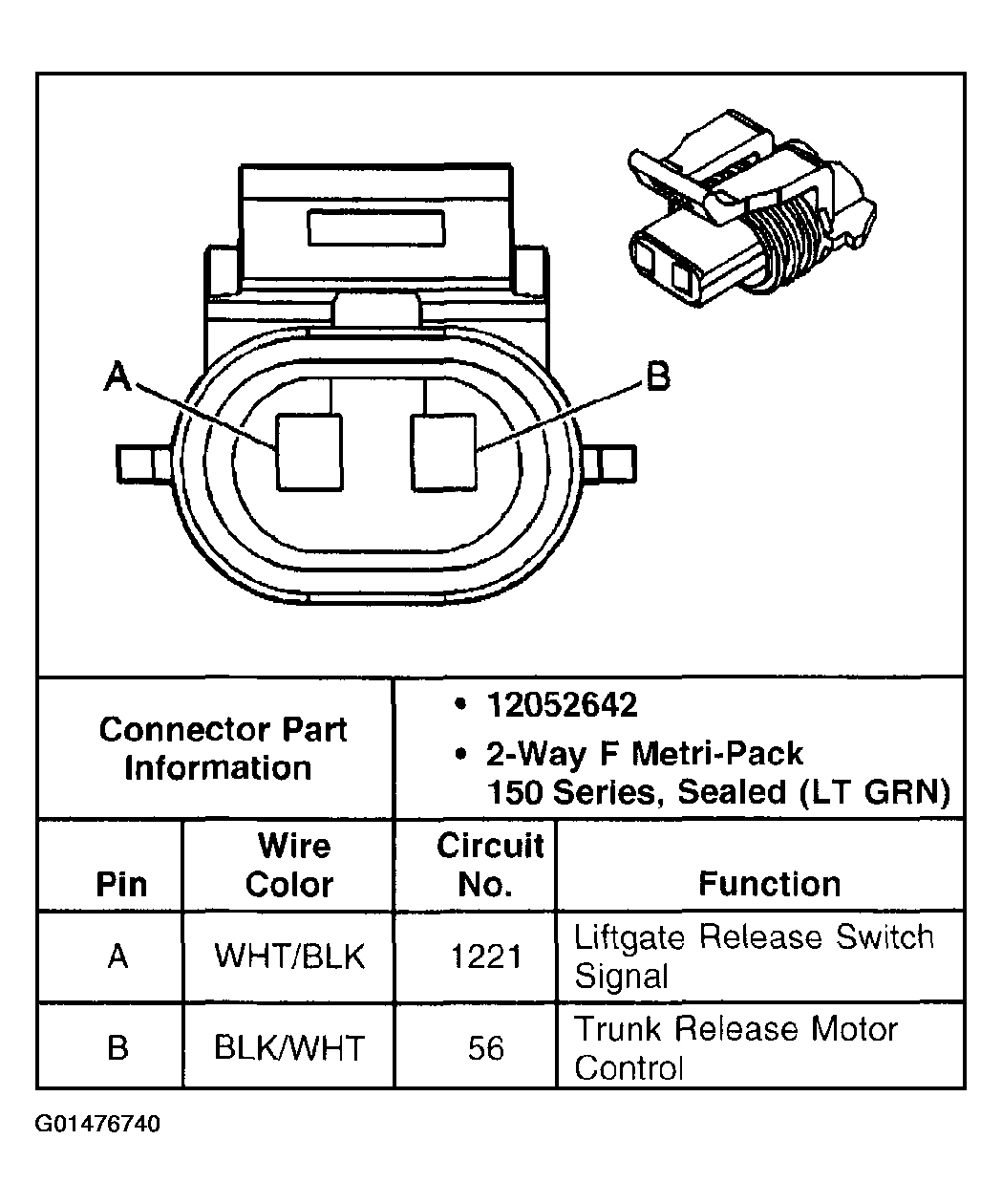

Fig 3: Door Lock Cylinder Switch - Driver (W/O RKE)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Lock Cylinder Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.
