Installation Procedure

Install the cable (3) through the hole (2) in the seat adjuster rail.
Hook the cable (3) into the rail and clip the cable to the rail (1).

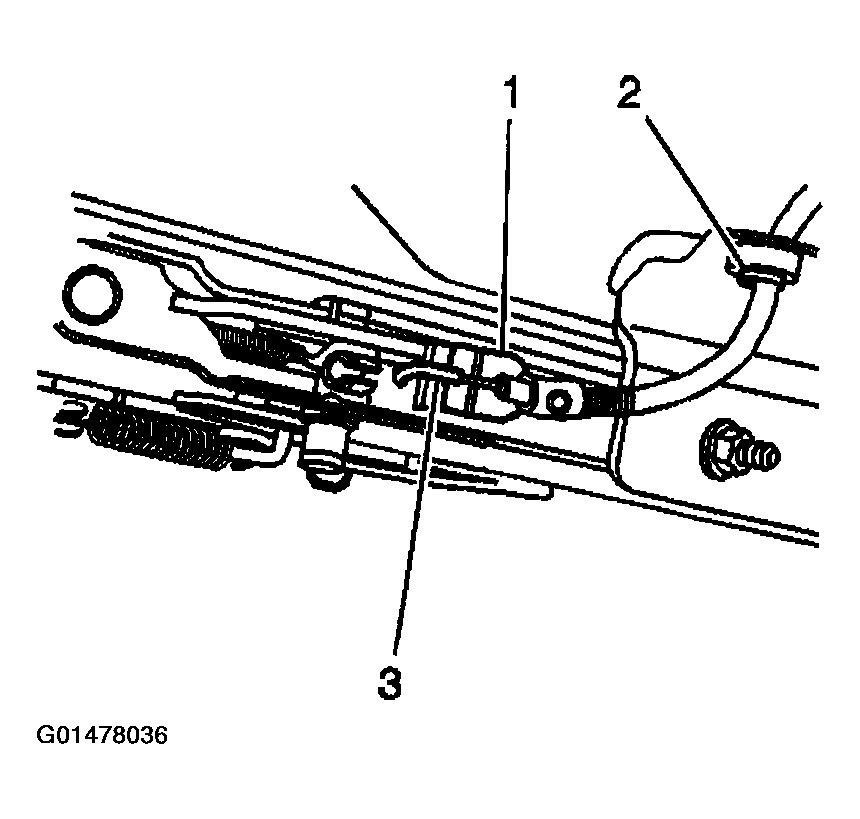

Fig 1: Installing Cable Through Hole In Seat Adjuster Rail
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the seat adjuster rail to the seat frame with 2 nuts (1).
Tighten

Tighten the bolts to 24 N.m (18 lb ft)

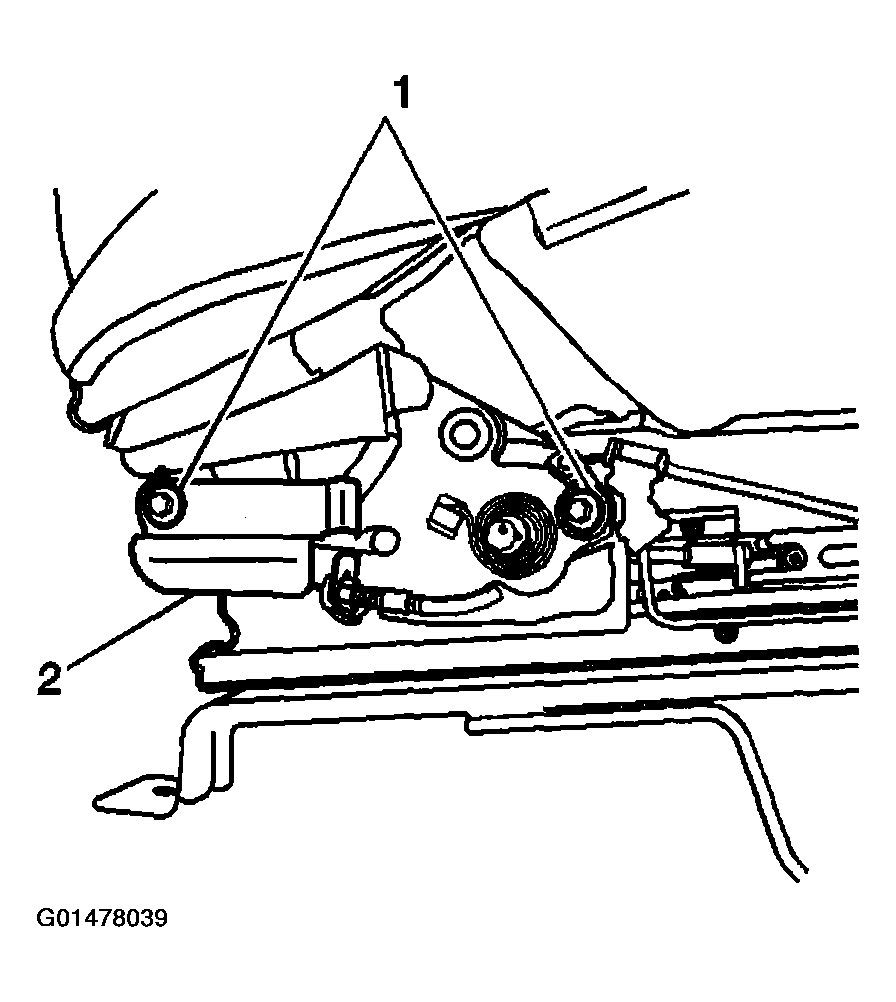

Fig 2: Installing Seat Adjuster Rail To Seat Frame With Nuts
Courtesy of GENERAL MOTORS CORP.
Install the cable (3) to the seat back pivot assembly.
Install the cable (3) to the pivot assembly bracket by tightening cable nut (2).

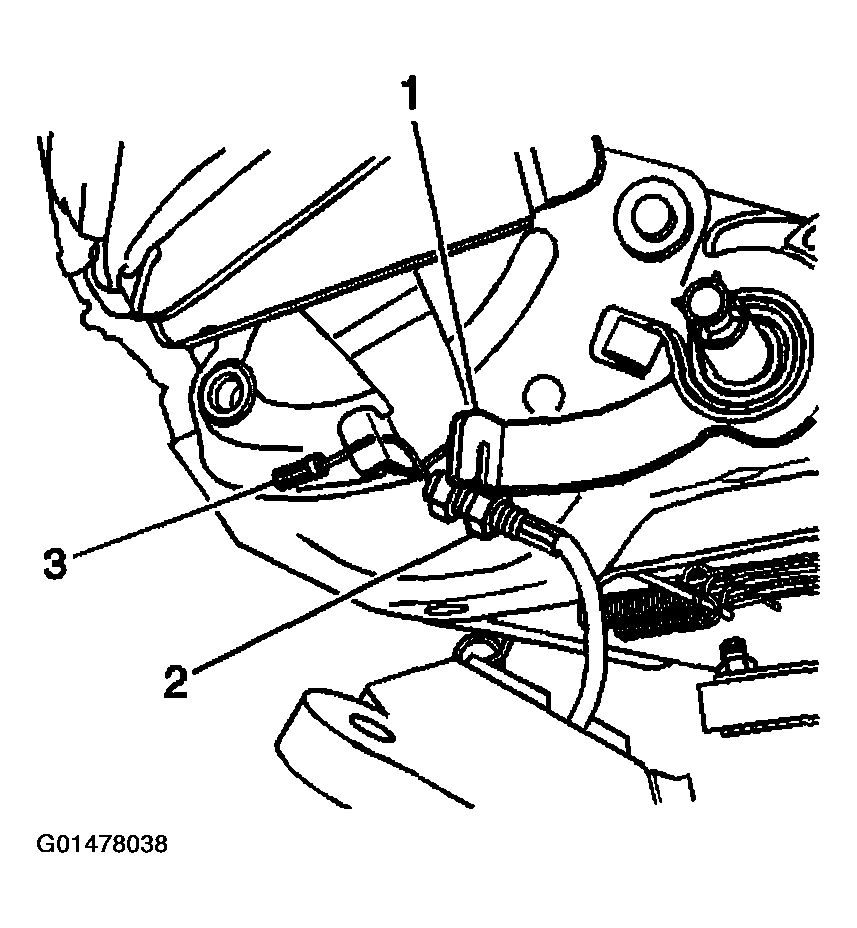

Fig 3: Installing Cable To Pivot Assembly Bracket By Tightening Cable Nut
Courtesy of GENERAL MOTORS CORP.
Install the cable cover bracket (2) to the seat back pivot assembly.
Install the 2 bolts (1).
Tighten

Tighten the bolts to 24 N.m (18 lb ft)
Pull the pad and cover back over the seat frame.

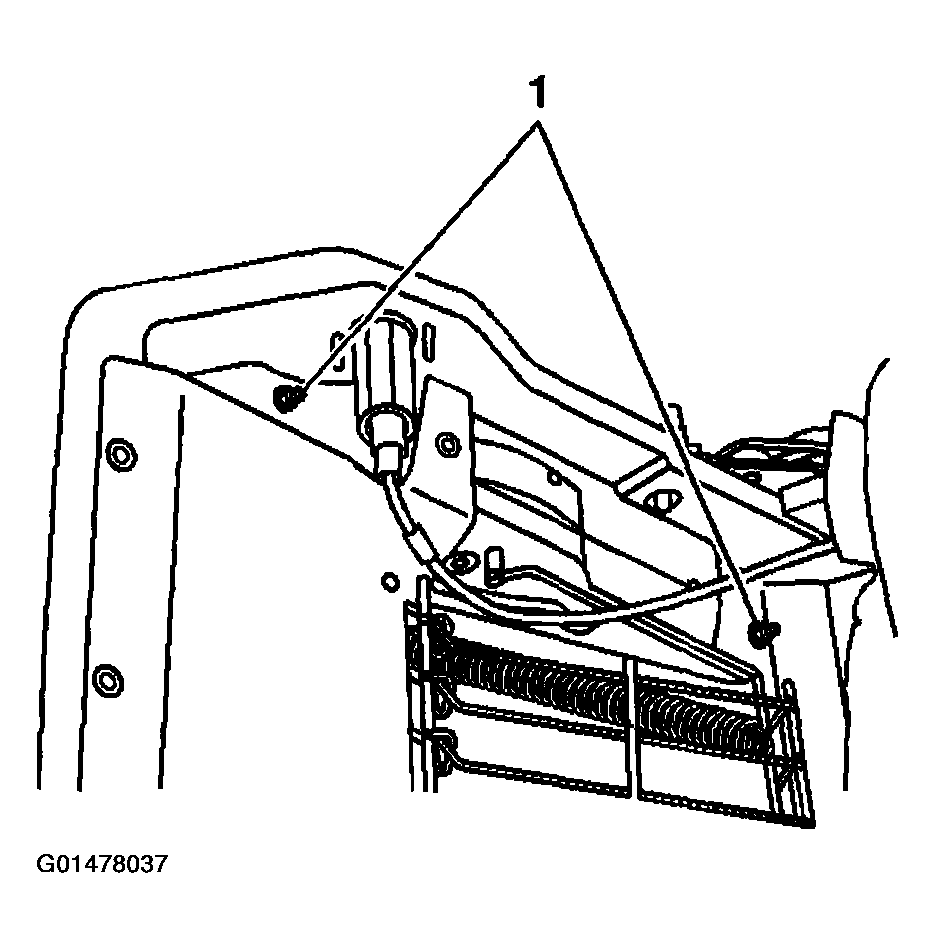

Fig 4: Installing Cable Cover Bracket To Seat Back Pivot Assembly
Courtesy of GENERAL MOTORS CORP.
Install the pad and cover to seat with J-strips (1).
Install the spring (2) to the seat adjuster rail.
Install the seat back recliner handle.
Install seat in the vehicle. Refer to SEAT REPLACEMENT - Bucket .

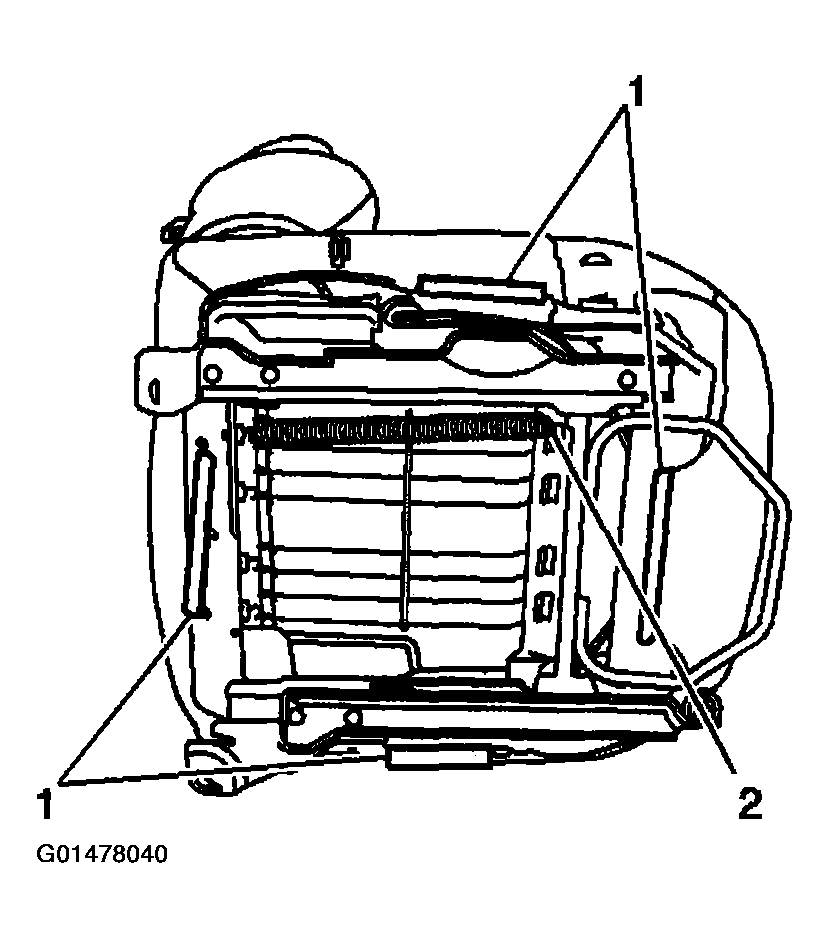

Fig 5: Installing Pad & Cover To Seat With J-Strips
Courtesy of GENERAL MOTORS CORP.
