Removal Procedure

Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bucket or SEAT REPLACEMENT - Bench .
Remove the 3 screws securing the trim panel to the seat.

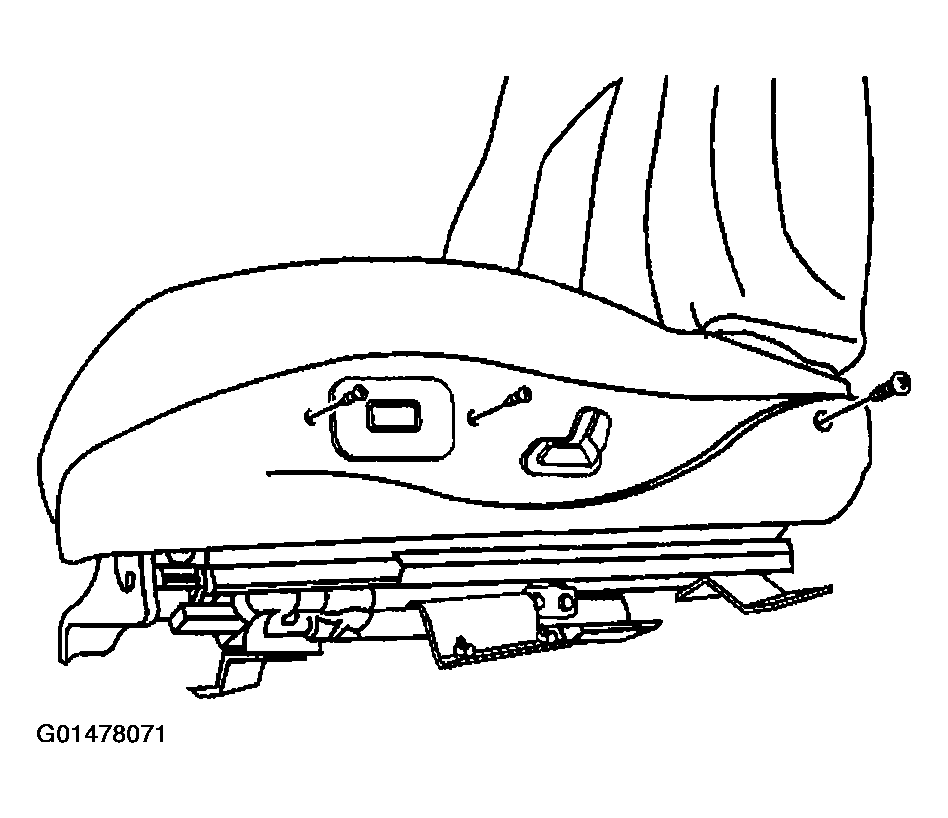

Fig 1: Removing Screws Securing Trim Panel To Seat
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the switch.

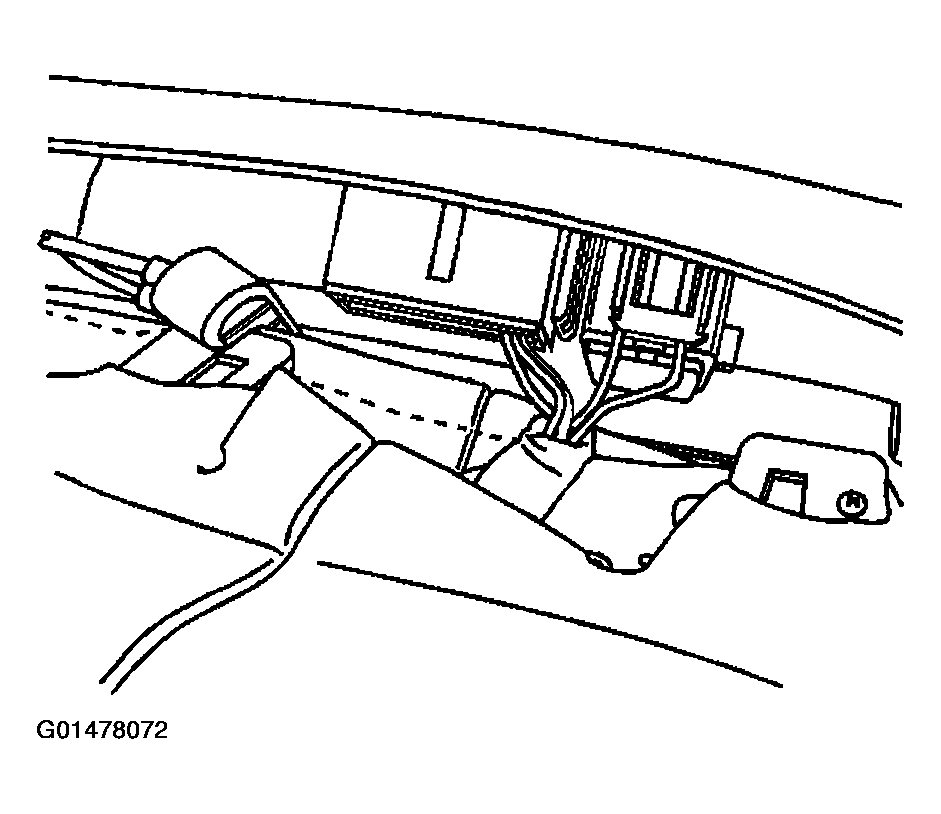

Fig 2: Disconnecting Electrical Connector From Switch
Courtesy of GENERAL MOTORS CORP.
Remove the switch from the trim panel by snapping the switch out of the plastic retaining tabs.
Remove the switch assembly.

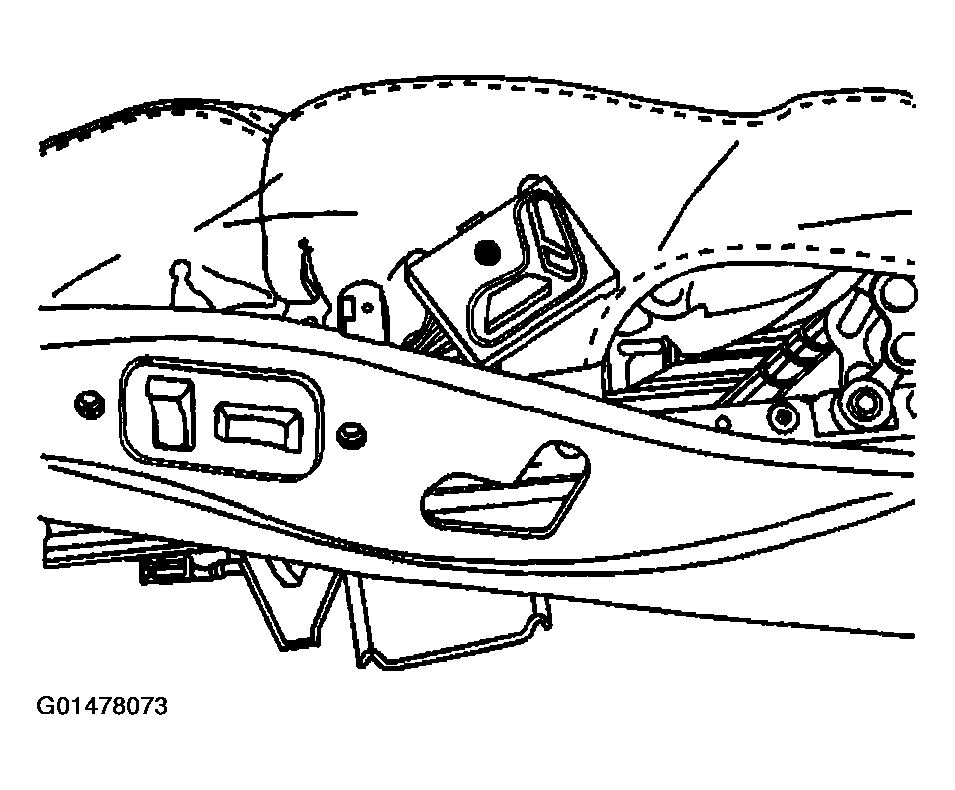

Fig 3: Removing Switch From Trim Panel By Snapping Switch Out Of Plastic Retaining Tabs
Courtesy of GENERAL MOTORS CORP.
