Schematic and Routing Diagrams

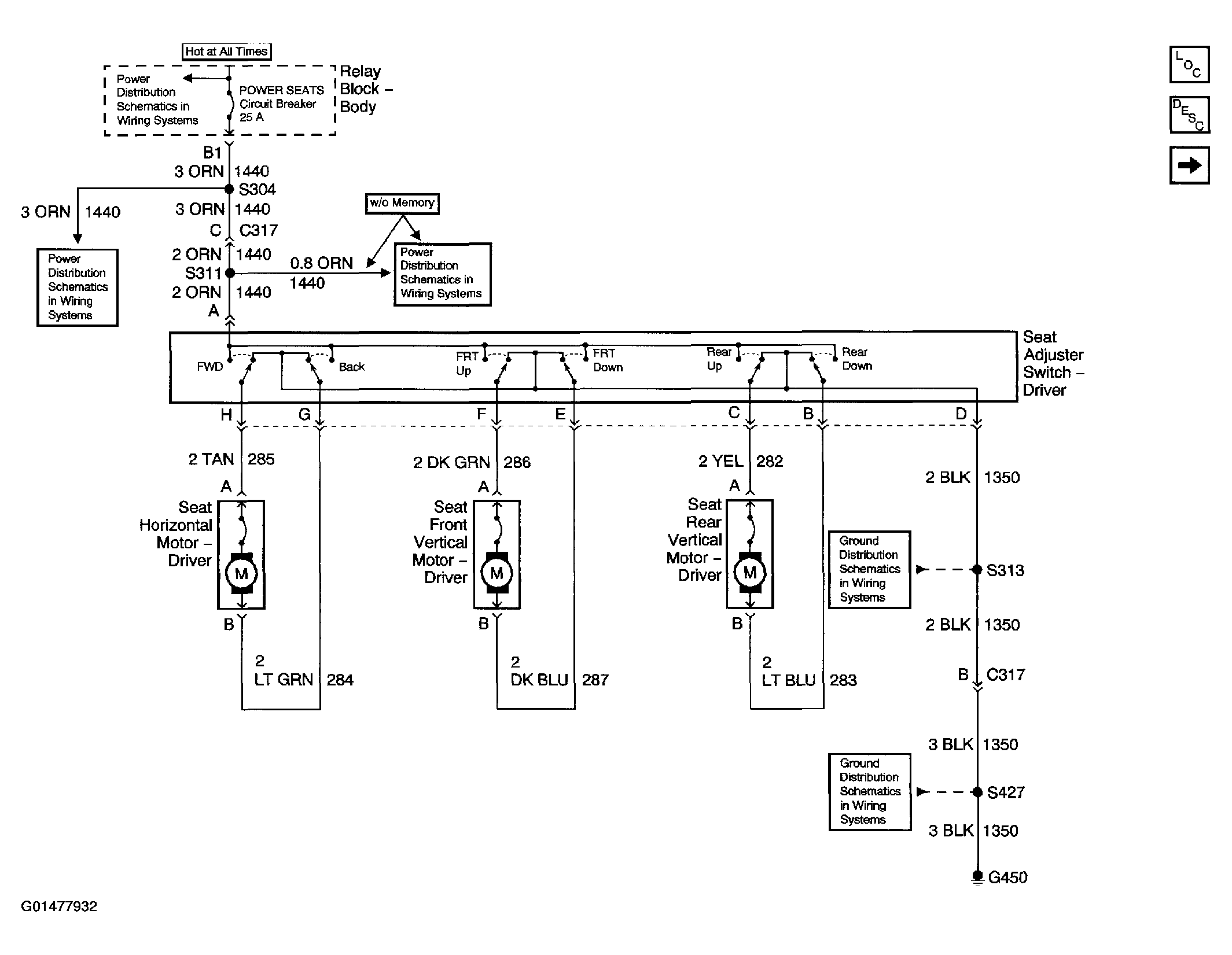

Fig 1: Power Seats Schematics (6-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

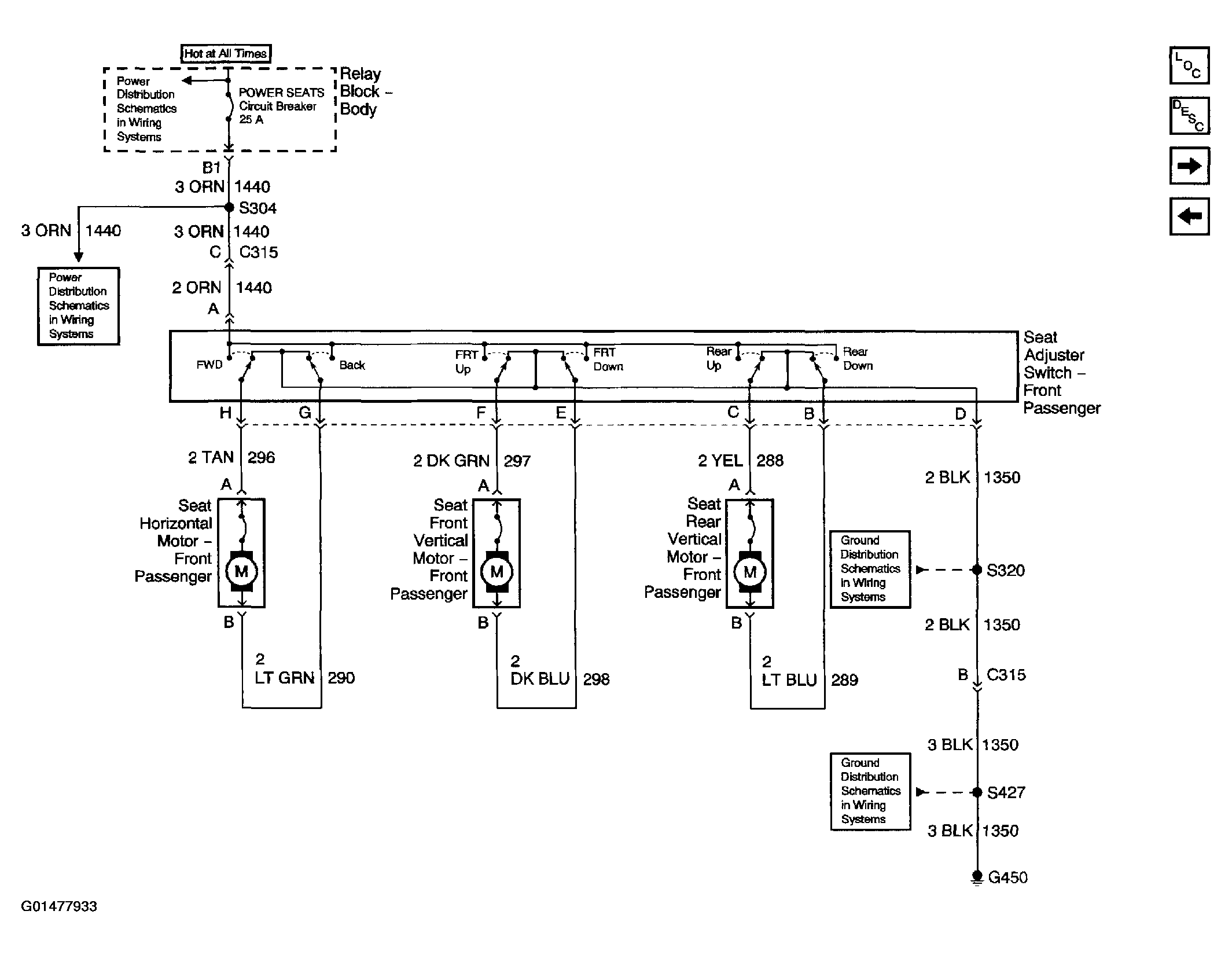

Fig 2: Power Seats Schematics (6-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.

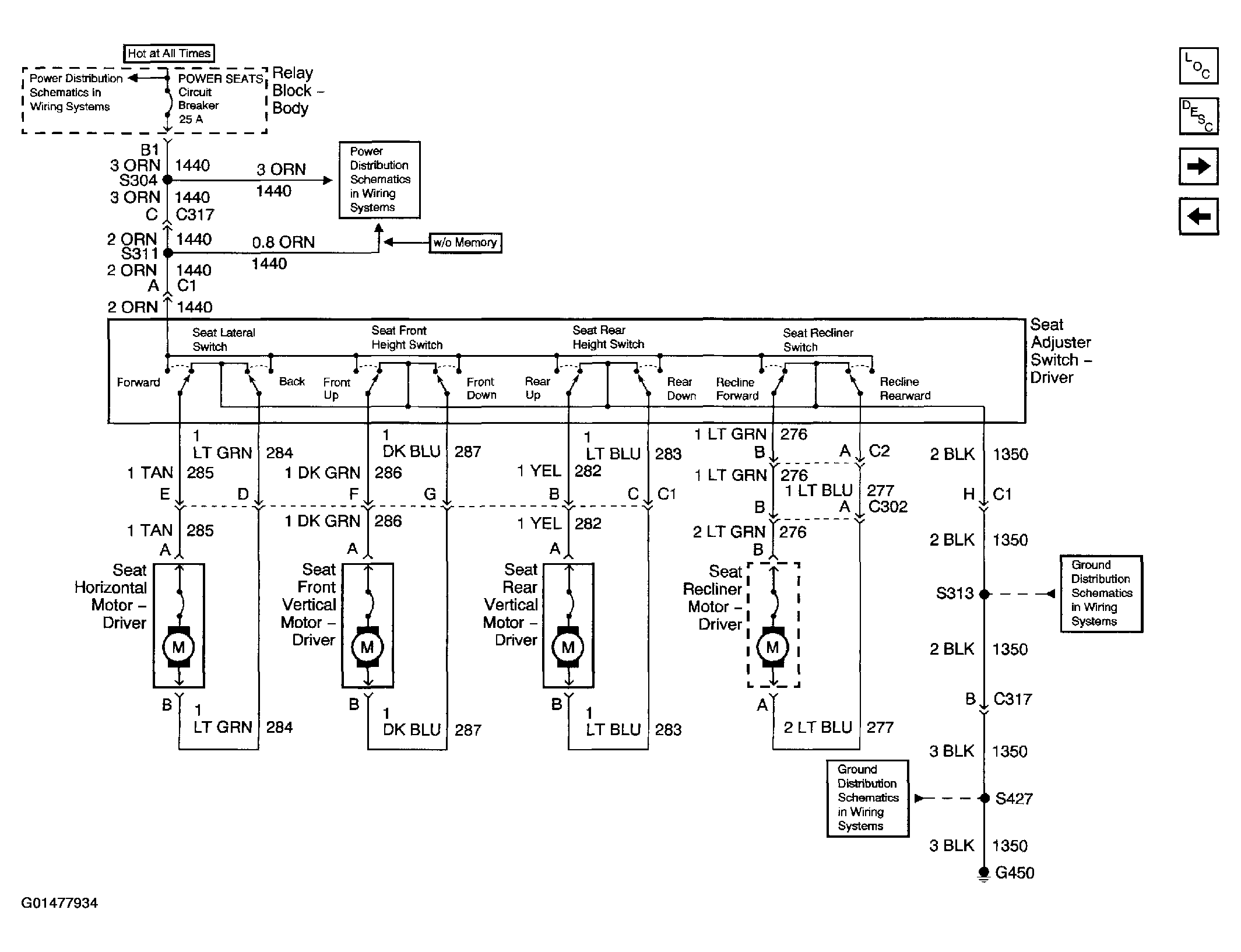

Fig 3: Power Seats Schematics (8-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

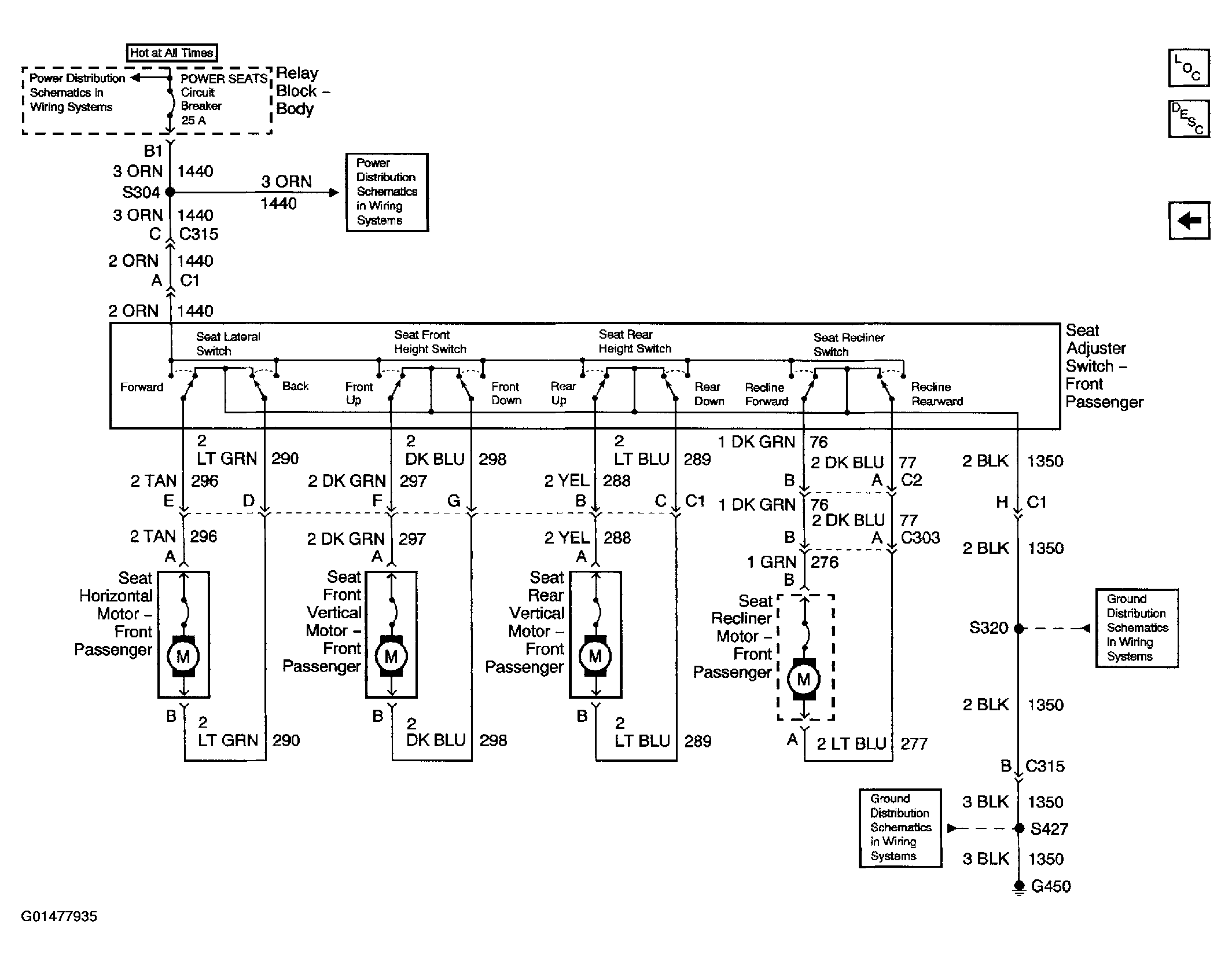

Fig 4: Power Seats Schematics (8-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.

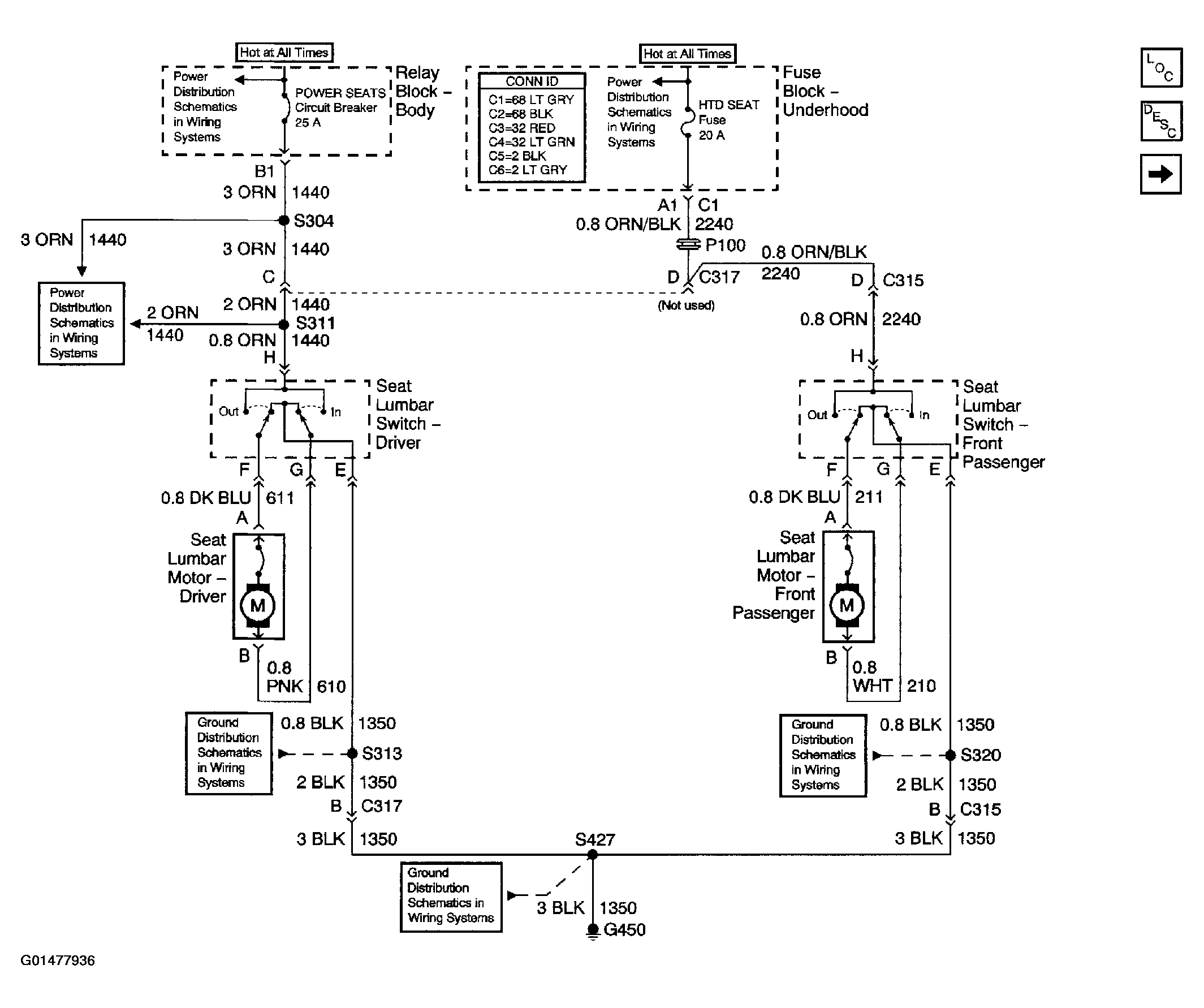

Fig 5: Lumber Support Schematics (Lumber W/O Memory Seats)

Courtesy of GENERAL MOTORS CORP.

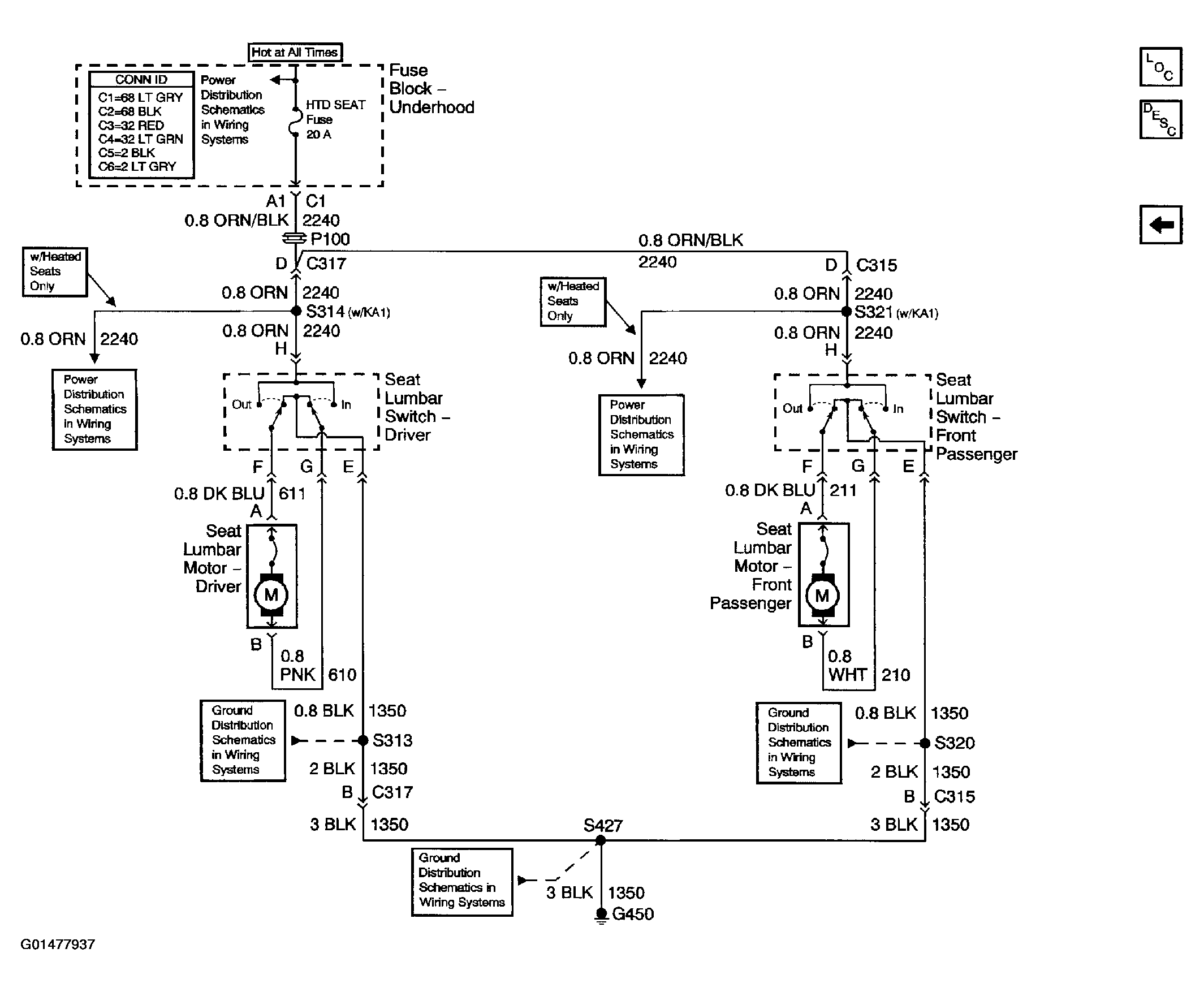

Fig 6: Lumber Support Schematics (Lumber W/ Memory Seats)

Courtesy of GENERAL MOTORS CORP.

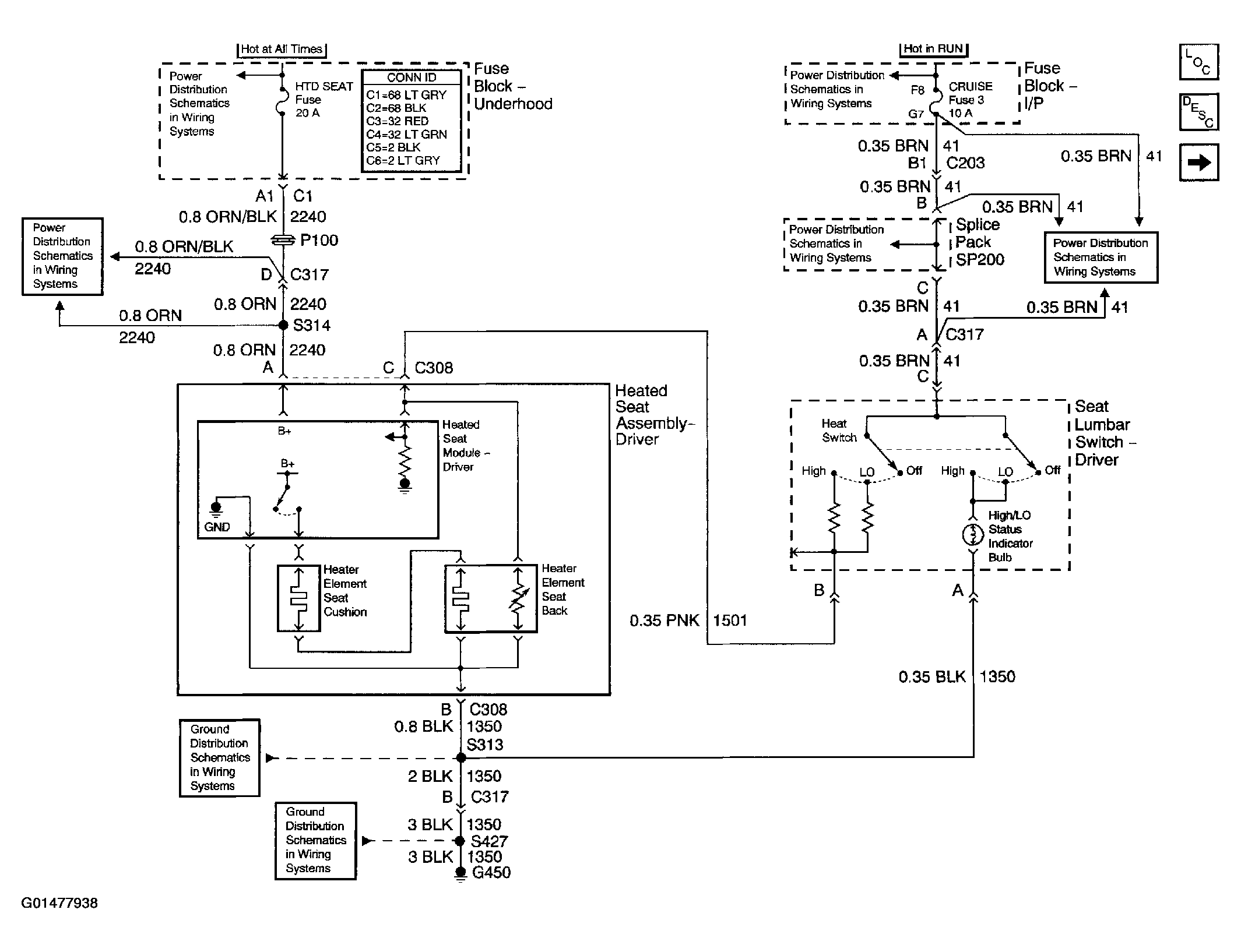

Fig 7: Heated Seats Schematics (Left Heated Seat)

Courtesy of GENERAL MOTORS CORP.

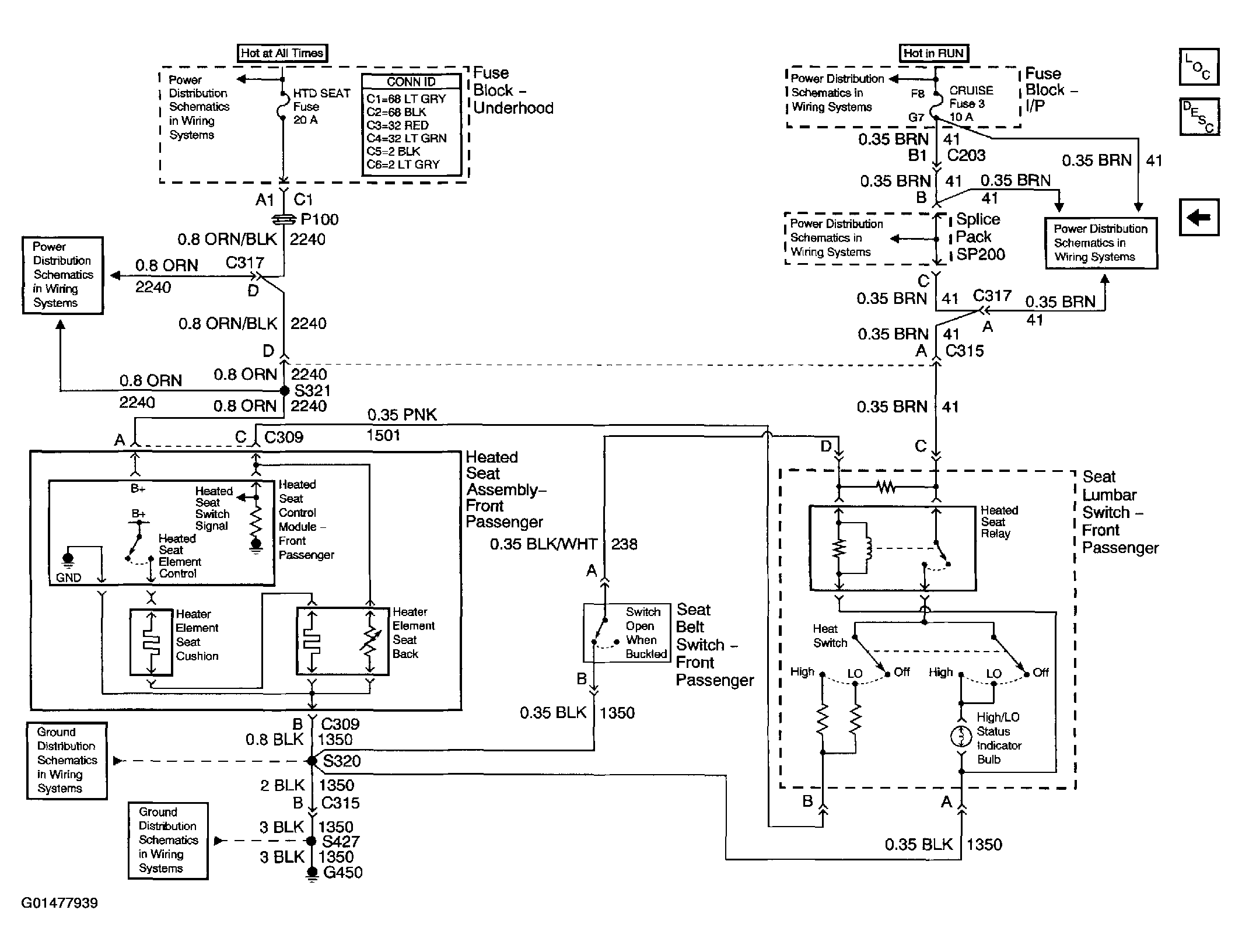

Fig 8: Heated Seats Schematics (Right Heated Seat)

Courtesy of GENERAL MOTORS CORP.

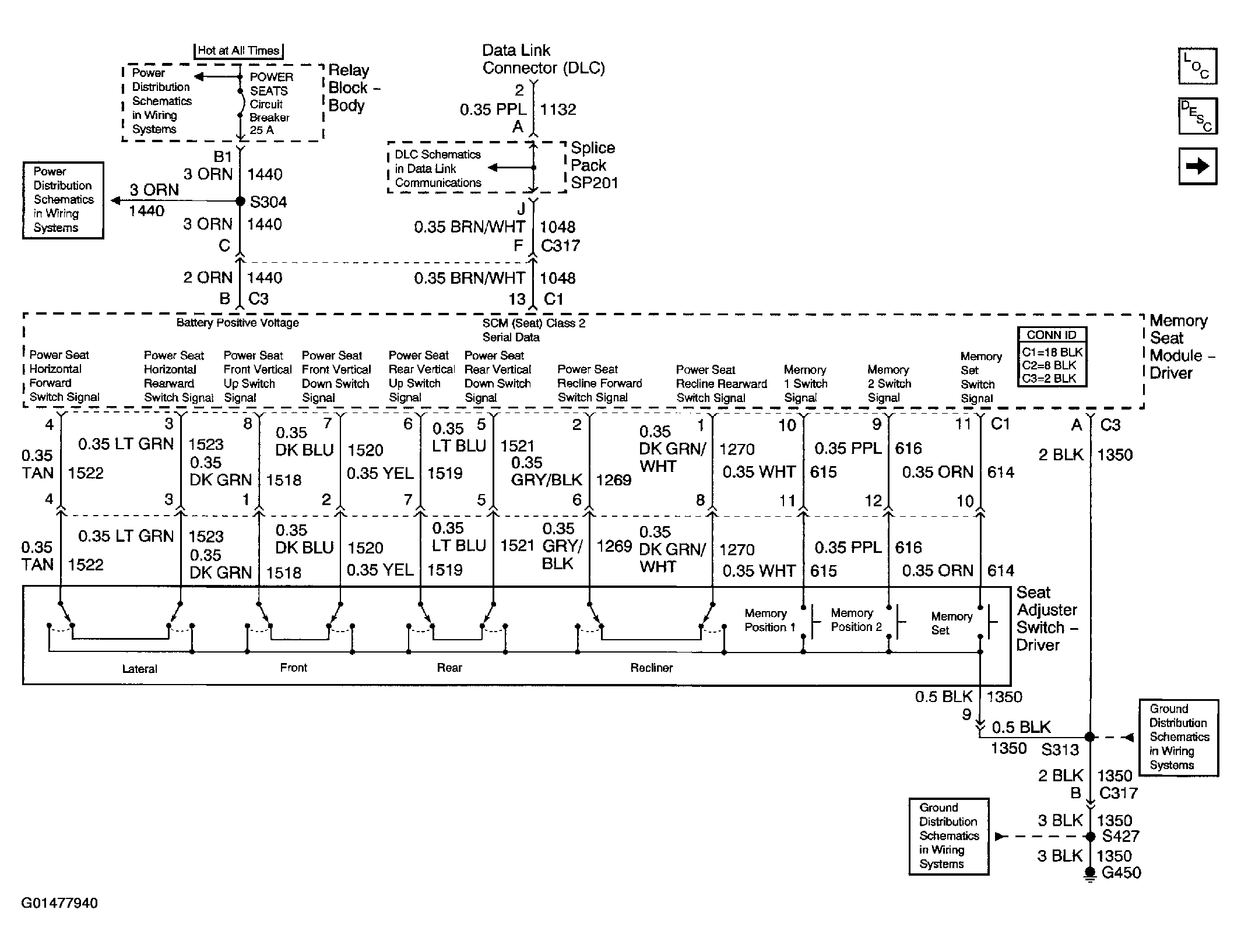

Fig 9: Memory Seats Schematics (Power, Ground, Data Link Connector (DLC) and Power Seat Adjuster Switch)

Courtesy of GENERAL MOTORS CORP.

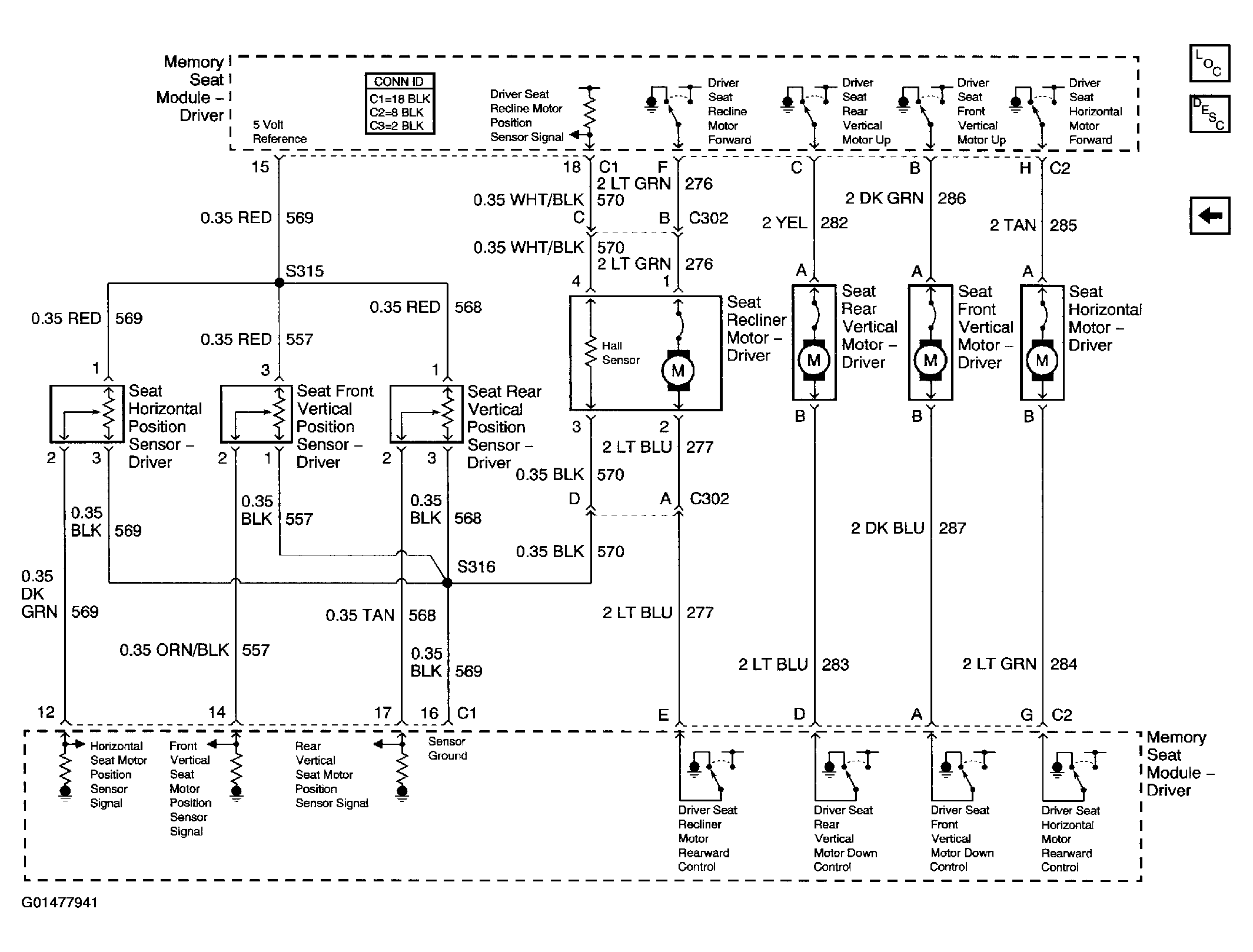

Fig 10: Memory Seats Schematics (Seat Adjuster Memory Module, Transducers and Motors)

Courtesy of GENERAL MOTORS CORP.
