Removal Procedure

Important:  The rear door power window motor and regulator replacement parts are sold as an assembly. Do not attempt to separate the motor from the regulator before verifying that separate replacement parts are available.

1. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR .
2. Disconnect the power window motor electrical connector, if equipped.
3. Remove the electrical harness retainers, if equipped.
4. Drill out the rivets that secure the window regulator to the door.
5. Remove the window regulator and the motor assembly (power windows only) from the door.

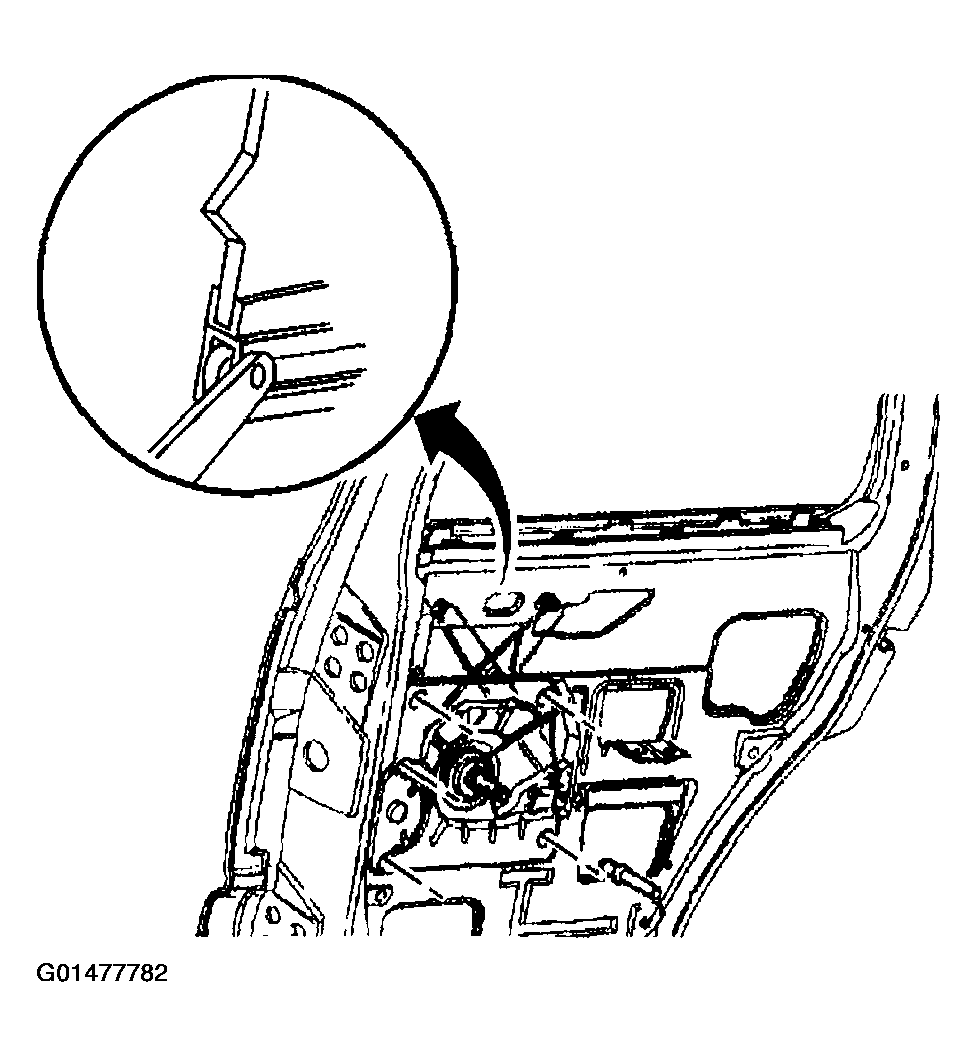

   Fig 1: Removing Window Regulator & Motor Assembly (Power Windows Only) From Door

   Courtesy of GENERAL MOTORS CORP.
