Removal Procedure
CAUTION:
To prevent personal injury, gloves should be worn when removing broken glass.
- Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
- Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - DOOR .
- Remove the stationary window assembly. Refer to REAR WINDOW REPLACEMENT in Stationary Windows.
- Remove the weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW .
- Remove the rear window run channel. Refer to WINDOW RUN CHANNEL REPLACEMENT .
- Push the window rearward.

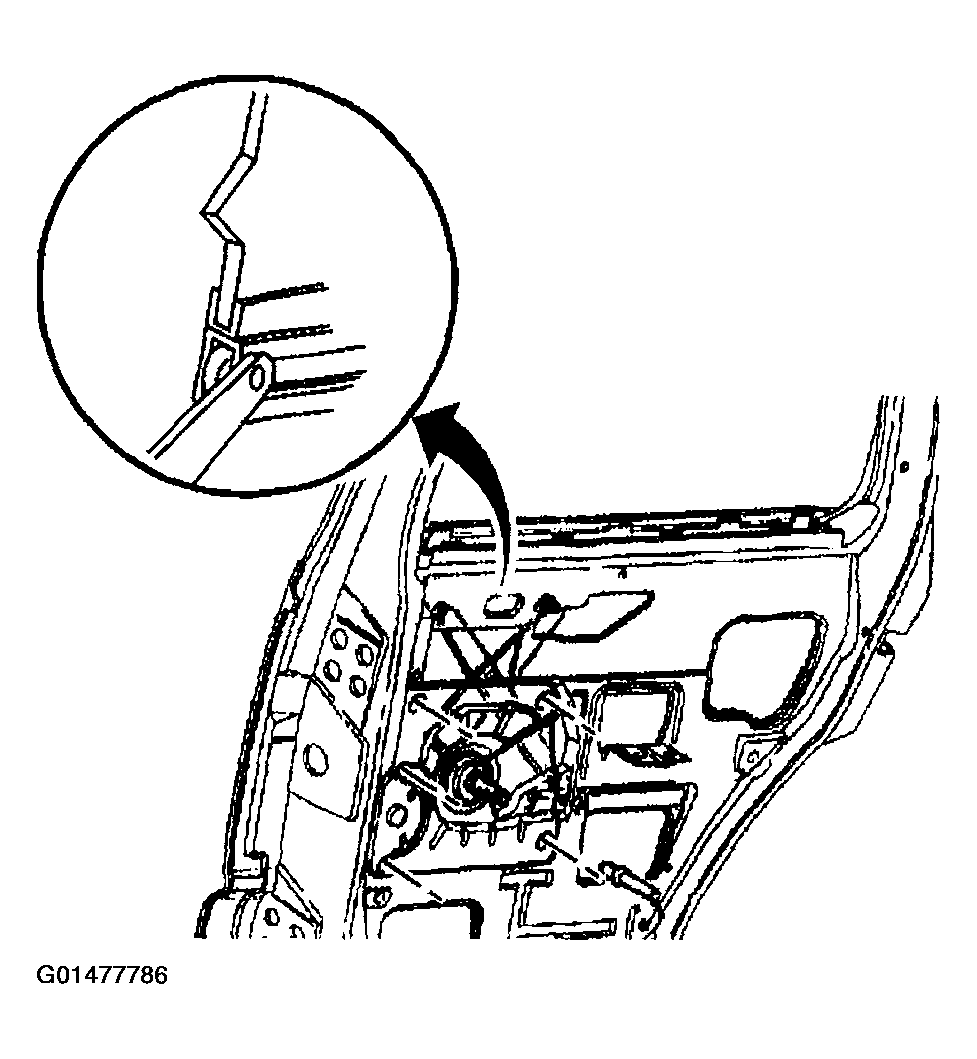

- Rotate the window in order to release the window sash channel from the regulator rollers.
- Remove the window from the regulator.
- Remove the window from the door.
